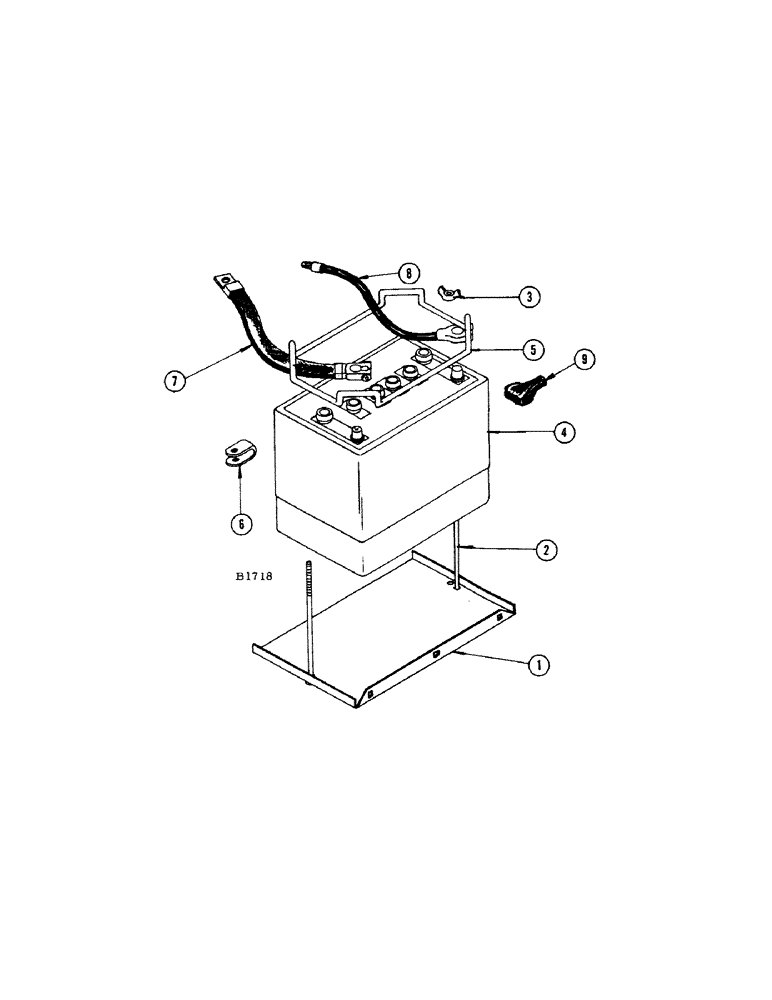

Запчасти Case IH 660 (360) - BATTERY TRAY, GAS ENGINE

1

F17150

BATTERY TRAY - (See F22243)

1шт.

F22243

BATTERY TRAY -, Serial Range: (#8309001-#8334601)

1шт.

12-512

BOLT

- 5/16" x 3/4" rhd. sh. nk., nut and L.W.

3шт.

2

11-5136

BOLT - 5/16" x 8-1/2" rhd. sq. nk.

2шт.

92-5

LOCK WASHER,5/16"

and fl. wshr. (95-5) 5/16"

2шт.

3

129-419

WING NUT,5/16"-18

- 5/16" N.C. ref. 2 bolts

2шт.

4

D44176

BATTERY

- 12V

1шт.

5

A35009

SECURING STRAP

WIRE - battery hold down

1шт.

6

A35010

CLIP

CLAMP - for ref. 5 wire

2шт.

7

F18690

STRAP - battery ground (Equipped with generator)

1шт.

F21064

ELECTRICAL WIRE

STRAP - battery ground (Equipped with alternator)

1шт.

8

F21063

CABLE - battery to solenoid (Equipped with generator)

1шт.

F21063

CABLE - battery to solenoid (Equipped with alternator) (Replaces F21246)

1шт.

86637933

JAM NUT,5/16" - 24, Gr 5

and L.W. Jam, 5/16"-24, G5

1шт.

9

A27072

COVER

- battery post

2шт.
