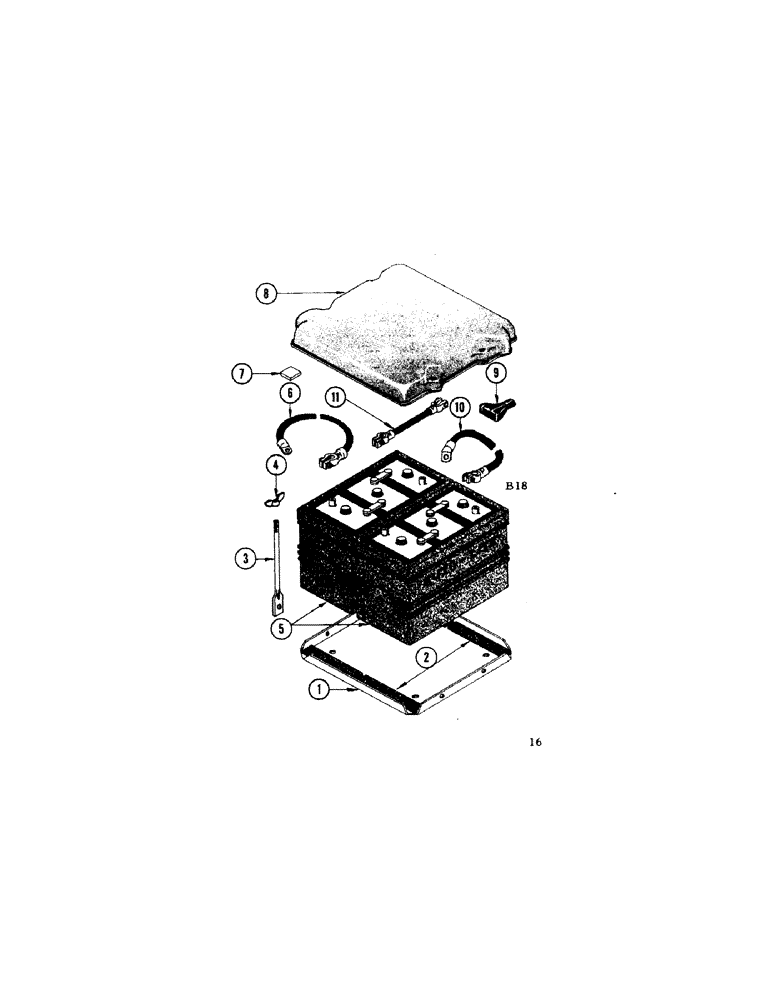

Запчасти Case IH 660 (360[A]) - BATTERY TRAY, DIESEL ENGINE

1

F82693

BATTERY TRAY

1шт.

2

A7390

PAD - (1/4" x 1-1/4" x 6-7/8" rubber)

4шт.

3

A7369

BOLT - (3/8" x 9-3/8" long) battery hold down

4шт.

RIVET - 5/16" x 5/8" W.B. (49-510)

4шт.

4

129-410

WING NUT,3/8"-16

- 3/8" N.C. ref. 3 bolts

4шт.

5

F53478

DRY BATTERY

- 6 volt

2шт.

6

F21065

CABLE -, Serial Range: battery-starter

1шт.

NUT - 3/8" N.C. jam (129-143) L.W. (192-21)

1шт.

7

A27203

WASHER

- rubber, battery cover

4шт.

8

A7382

COVER - battery

1шт.

9

A27072

COVER

- battery post

2шт.

10

A7440

CABLE

- jumper, Serial Range: battery-battery

1шт.

11

F21064

ELECTRICAL WIRE

CABLE - battery ground

1шт.
