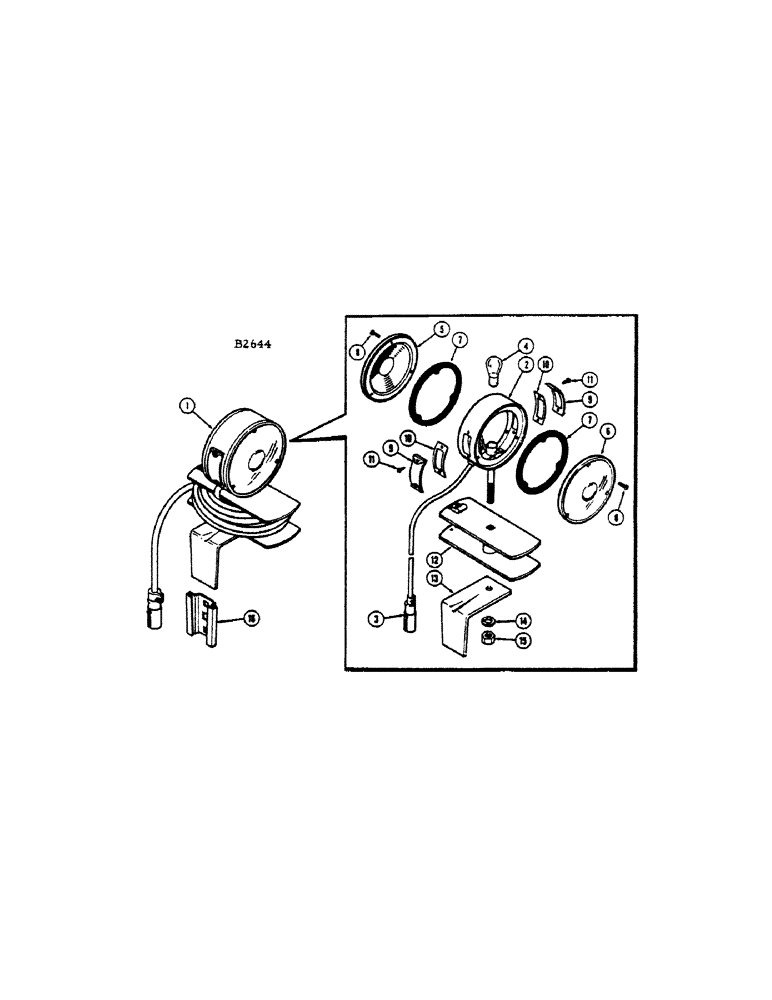

Запчасти Case IH 660 (358) - WARNING LAMP ATTACHMENT

A11066M

LAMP ATTACHMENT - warning

1шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - (Order A11066M)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - with cord (Order A11066M)

1шт.

3

B50259

PLUG

- (To auxiliary socket)

1шт.

4

33686

BULB

- 12 volt, 21 C.P. (#1141)

1шт.

5

B50337

LENS

- lamp (Amber)

1шт.

6

B53962

LENS

- lamp (Red)

1шт.

7

B50317

GASKET - lens

2шт.

8

173-203

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- lens (#6 x 1/2" N.C. rd. hd.)

6шт.

9

B50328

LENS - lamp, side (Clear)

2шт.

10

B50329

GASKET - side lens

2шт.

11

182-43

SCREW - side lens (#6 x 5/16" N.C. rd. hd.)

4шт.

12

B50330

SPOOL - lamp cord reel

1шт.

13

B50331

BRACKET - lamp mounting

1шт.

14

92-7

LOCK WASHER,7/16"

1шт.

15

25-117

NUT,7/16"-20, G5

- (7/16" N.F. hex)

1шт.

16

A8179

SOCKET

- lamp positioning

1шт.

A26673

CLIP

- wire (1/4" diameter) (Not shown)

1шт.

F8875

WIRE - light switch (Current side) to outlet socket (Not shown)

1шт.

A27039

CLIP - wire (11/32" dia.) (Not shown)

4шт.

A27213

CONNECTOR - two wire line (Not shown)

2шт.
