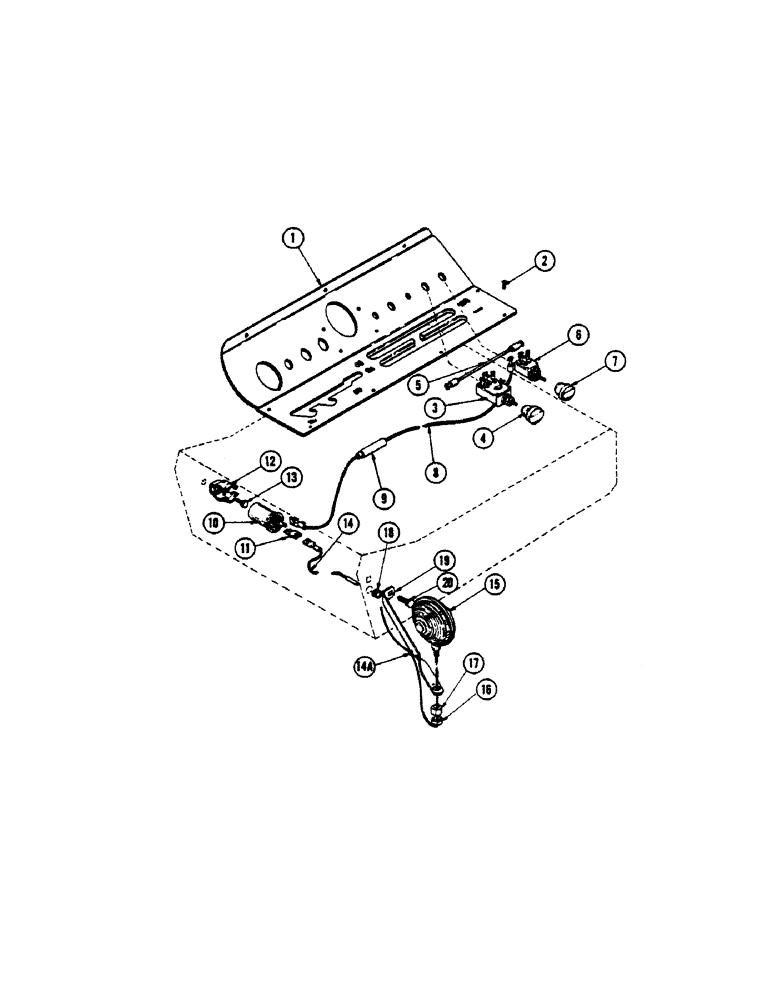

Запчасти Case IH 660 (358[A]) - FLASHER WARNING LIGHT NUMBER 8309001 AND AFTER

1

F22375

PANEL - instrument

1шт.

2

187-1027

SCREW - #10 x 3/8" truss hd. slotted

6шт.

3

F91864

SWITCH

- ignition and starter

1шт.

4

F13869

X

KNOB - ignition and starter switch

1шт.

5

F22240

WIRE - starter switch to flasher switch

1шт.

6

F91851

SWITCH - flasher

1шт.

7

F22376

KNOB - flasher switch

1шт.

8

F22377

WIRE - flasher, Serial Range: switch-flasher

1шт.

9

223-9

FUSE,9 Amp, Type SFE

- 9 amp

1шт.

10

A34867

FLASHER UNIT

FLASHER - 12 volt

1шт.

11

A34863

ADAPTER

- flasher, with by-pass

1шт.

12

A34869

BRACKET

- flasher mounting

1шт.

13

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

Nut (129-122) L.W. (192-20) Hex, 5/16"-24 x 3/4", G5, Full Thd

1шт.

14

F22378

WIRE - flasher to flasher lamp

1шт.

14a

214-1102

CLIP

- Tinnerman

6шт.

15

A34853

LAMP

- flasher, assembly

1шт.

NSS

NOT SOLD SEPARAT

BODY - lamp (Order A34853)

1шт.

A41264

BULB,#1156, 12V

1шт.

A41260

WIRE - lead in

1шт.

A41261

LENS

- amber

2шт.

A41262

O-RING,3.484" ID x 0.139"

- lens

2шт.

A41263

GASKET - mounting stud

1шт.

16

129-125

NUT,1/2"-20, G5

1шт.

17

129-165

JAM NUT,Jam, 1/2"-20, G5

1шт.

18

A27338

GROMMET

- rubber

1шт.

19

F22379

BRACKET - lamp mounting

1шт.

20

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (129-103) L.W. (192-21) Short NK, 3/8"-16 x 1", G2

1шт.
