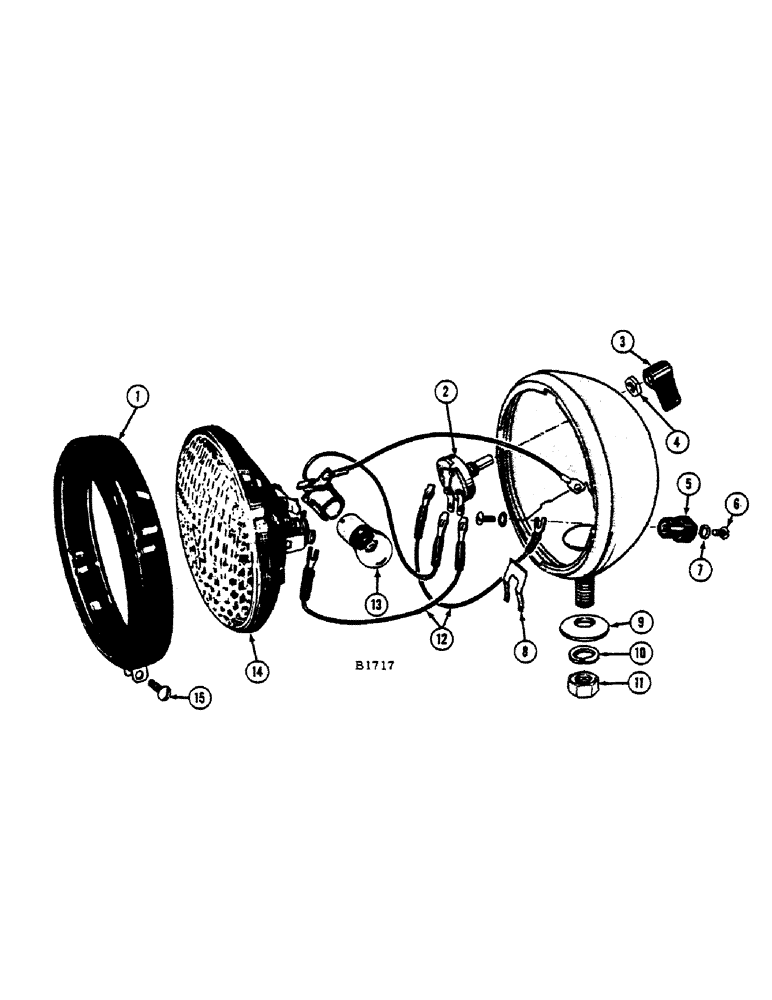

Запчасти Case IH 660 (356[A]) - A20965 FLOOD AND TAIL LAMP

1

B50255

MOLDING

MOULDING

1шт.

2

B50275

SWITCH

1шт.

3

B50310

SWITCH

KNOB - switch assembly (Includes screw)

1шт.

4

B50224

SPECIAL NUT

- retaining, switch

1шт.

5

B50293

TERMINAL CONNECTOR

TERMINAL

1шт.

6

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal

2шт.

7

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , for Terminal screw Ext Tooth, #6

2шт.

8

10927

SPRING

- terminal

1шт.

9

10923

WASHER

- bearing, mounting stud

1шт.

10

92-6

LOCK WASHER,3/8"

mounting stud 3/8"

1шт.

11

129-105

NUT,Hex, 1/2" - 13, Gr 5

Mounting stud 1/2"-13, G5

1шт.

12

B50273

WIRE ASSEMBLY

2шт.

13

B50223

BULB

- 15 CP, 12-16 volt (Mfg. #1003)

1шт.

14

A40855

LAMP BASE

SEALED UNIT

1шт.

15

10934

BRACKET,Rd Hd, #8 - 32 x 0.625", Stainless

SCREW - moulding

1шт.
