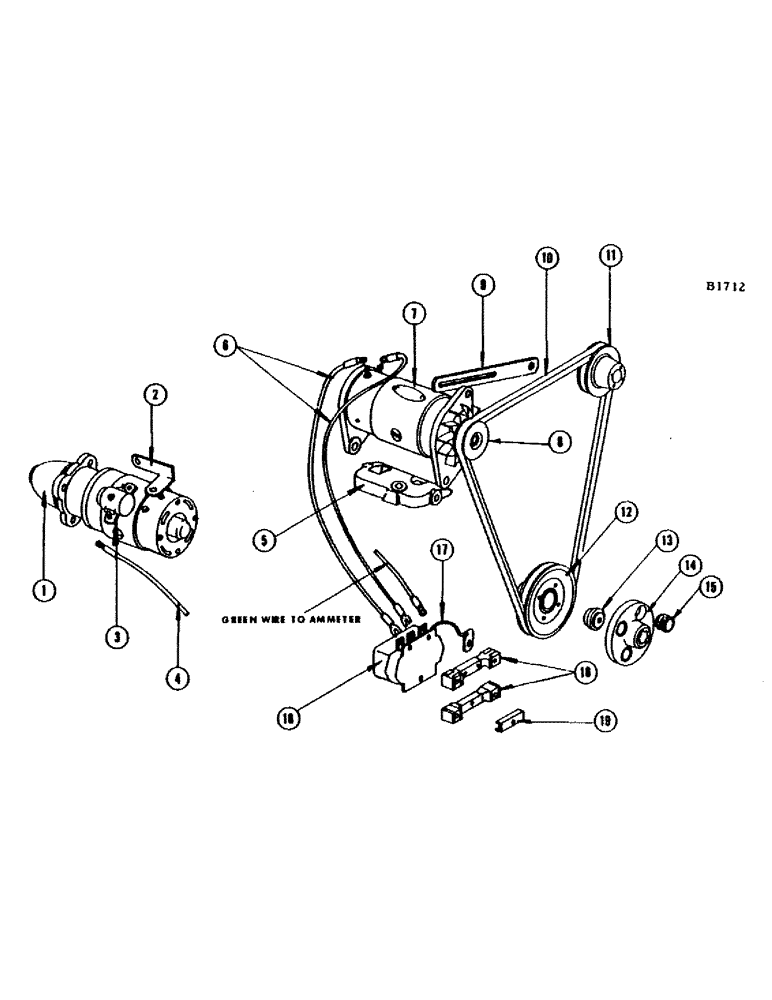

Запчасти Case IH 660 (354) - GENERATOR TYPE ELECTRICAL SYSTEM, STARTING MOTOR

1

A36584

STARTING MOTOR

STARTING MOTOR - (Presto-Lite #MDU7104A) (Gas engine)

1шт.

.

BOLT - 3/8" x 2" N.C. hex (13-632) L.W. (92-6)

3шт.

1

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

2

NSS

NOT SOLD SEPARAT

CONNECTOR -, Serial Range: solenoid-field

1шт.

3

A40795

SOLENOID

SOLENOID

1шт.

1

A36583

STARTER MOTOR

STARTING MOTOR - (Delco-Remy #1107583) (Diesel engine)

1шт.

.

BOLT - 3/8" x 2" N.C. hex (13-632) L.W. (92-6)

3шт.

3

G44891

SOLENOID

SOLENOID

1шт.

4

F21063

SPARE PART CABLE - starter solenoid to battery (Gas engine)

1шт.

.

NUT - 5/16" N.F. jam (129-162) L.W. (192-20)

1шт.

F21065

CABLE - starter solenoid to battery (Diesel engine)

1шт.

.

NUT - 3/8" N.C. jam (129-143) L.W. (192-21)

1шт.

5

G2131

X

BRACKET - generator mounting

1шт.

.

BOLT - 5/16" x 7/8" N.C. hex (13-514) L.W. (92-5), generator

1шт.

.

BOLT - 5/16" x 1" N.C. hex (13-516) L.W. (92-5), generator

1шт.

.

BOLT - 5/16" x 1-1/4" N.C. hex (13-520) L.W. (92-5), generator

1шт.

6

F21705

WIRE -, Serial Range: generator-regulator

2шт.

7

A36279

X

GENERATOR - (Presto-Lite #GJT-7404A) (Gas engine) (Use F21239)

1шт.

.

BOLT - 5/16" x 3/4" N.C. hex (13-512) L.W. (92-5) and fl. wshr. (195-21), generator

1шт.

8

G4521

PULLEY

PULLEY - drive, generator

1шт.

7

D27034

GENERATOR

GENERATOR - (Delco-Remy #1100404) (Diesel engine)

1шт.

.

BOLT - 5/16" x 3/4" N.C. hex (13-512) L.W. (92-5) and fl. wshr. (195-21), generator

1шт.

8

A25454

PULLEY

PULLEY - drive, generator

1шт.

14503

SPARE PART FAN - generator

1шт.

9

G11344

SPARE PART STRAP - adjusting (Gas engine), generator

1шт.

.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116), generator

1шт.

9

A37017

STRAP

STRAP - adjusting (Diesel engine), generator

1шт.

.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116), generator

1шт.

10

G46238

BELT,0.55" W x 17.78" L

Drives Generator, Fan and Water Pump

1шт.

11

G11339

PULLEY

PULLEY - water pump and fan, generator

1шт.

12

G11342

X

PULLEY - fan and generator drive (See page 398)

1шт.

.

KEY - 1/4" x 1-1/6" Hi-Pro (126-216), generator

1шт.

13

A35673

NUT

NUT - fan pulley, generator

1шт.

14

G36217

HUB ASSY.

COUPLING - flexible, generator

1шт.

15

G36905

BLOCK

BLOCK AND BUSHING, generator

4шт.

16

F84740

SPARE PART REGULATOR - voltage (Presto-Lite #VBO4201AE-3)

1шт.

.

BOLT - 1/4" x 1-1/2" N.F. hex (14-424) nut (25-114), voltage regulator

4шт.

17

F18356

WIRE - ground, terminal to bolt, voltage regulator

1шт.

18

F18357

SPARE PART MOUNT - rubber, voltage regulator

2шт.

19

F18355

CHANNEL - for F18357 mount, voltage regulator

1шт.

.

A41464

REGULATOR

REGULATOR - voltage (Delco-Remy #119270) (Diesel engine)

1шт.

F21707

COVER - regulator, voltage

1шт.

.

BOLT - 1/4" x 1-1/2" N.F. hex (14-424) nut (25-114), voltage regulator

2шт.

F21708

DEFLECTOR - air (Not shown), voltage regulator

1шт.

.

BOLT - 5/8" x 2" N.F. hex (14-1032) nut (25-1110), voltage regulator

2шт.
