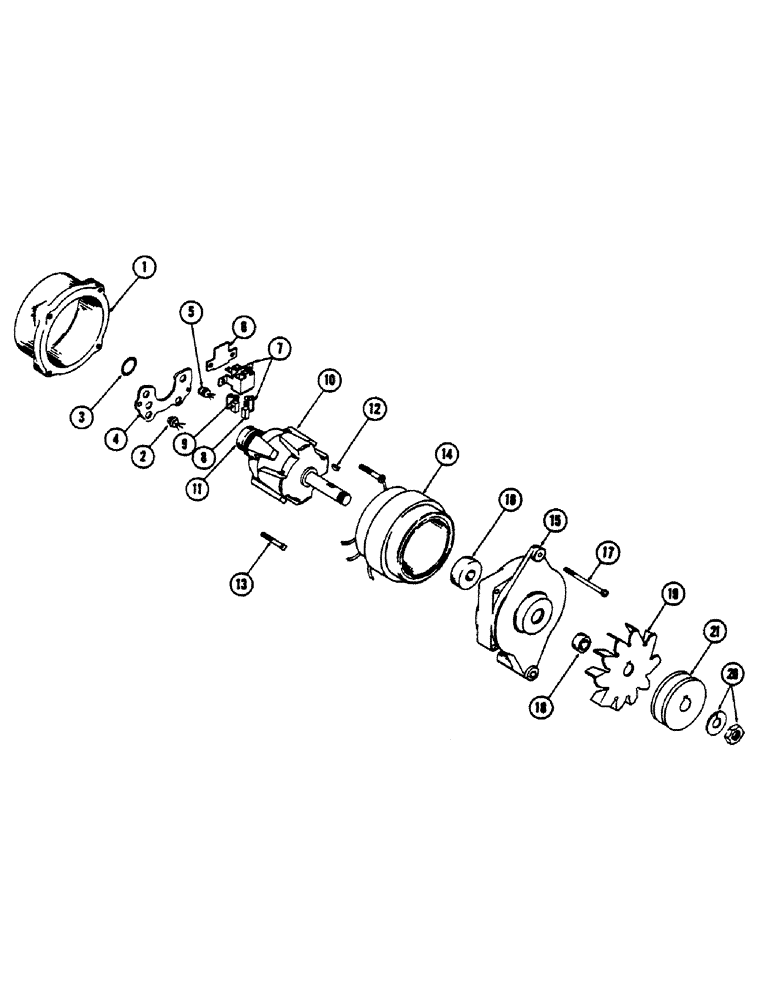

Запчасти Case IH 660 (353A[A]) - PARTS FOR A41070 ALTERNATOR

A41070

ALTERNATOR - (35 amp) less pulley and regulator

1шт.

A41065

KIT

EYELET PACKAGE

1шт.

1

A41069

LINING

HEAD - slip ring end

1шт.

2

A41071

DIODE

RECTIFIER - negative

4шт.

3

A41072

O-RING,0.07" Thk x 1.176" ID, -25, Cl 5, 75 Duro

1шт.

4

A41074

PLATE

- rectifier

1шт.

5

A41075

DIODE

RECTIFIER - positive

3шт.

6

A41073

COVER

INSULATION - brush holder cover

1шт.

7

A41062

HOLDER

- brush

1шт.

8

A41063

BRUSH, COMMUTATOR

BRUSH SET

1шт.

9

A41064

VALVE SPRING

SPRING SET

1шт.

10

A41076

ROTOR

1шт.

11

A41077

BALL BEARING,0.3937" ID x 1.1811" OD x 0.3543"

BEARING

1шт.

12

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

1шт.

13

A41080

KIT

STUD - terminal (Package)

1шт.

14

A41079

STATOR

1шт.

15

A41067

HEAD

- drive end

1шт.

16

A41068

BALL BEARING

BEARING

1шт.

17

A41081

BOLT - thru (Package)

1шт.

18

A41078

BUSHING

SPACER - rotor shaft

1шт.

19

A41066

FAN

1шт.

20

A40581

KIT

NUT AND WASHER PACKAGE

1шт.

21

A41082

PULLEY

- drive

1шт.
