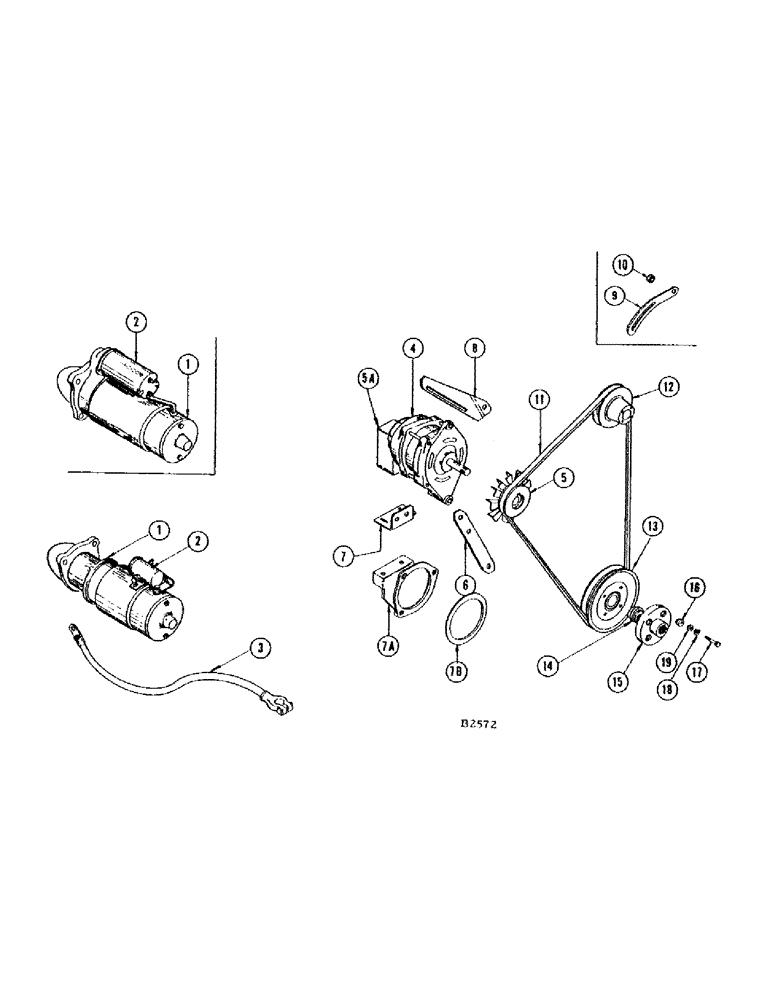

Запчасти Case IH 660 (352) - ALTERNATOR TYPE ELECTRICAL SYSTEM, STARTING MOTOR

1

A36583

STARTER MOTOR

STARTING MOTOR - diesel engine

1шт.

1

A36584

STARTING MOTOR

STARTING MOTOR - Gas engine

1шт.

.

BOLT - 3/8" x 2" N.C. hex (13-632) L.W. (92-6)

3шт.

1

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

1

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

2

G44891

SOLENOID

SOLENOID - Diesel Engine

1шт.

2

A40795

SOLENOID

SOLENOID - Gas Engine

1шт.

3

F21065

CABLE - starter solenoid to battery (Diesel engine)

1шт.

3

F21063

SPARE PART CABLE - starter solenoid to battery (Gas) Replaces F21246

1шт.

.

NUT - 3/8" N.C. hex jam (129-143) L.W. (192-21) - Diesel Engine

1шт.

.

NUT - 5/16" N.F. hex jam (129-162) L.W. (192-20) - Gas Engine

1шт.

4

A41090

ALTERNATOR

ALTERNATOR - (55 amp) less pulley and regulator (#8290011 and after)

1шт.

.

BOLT - 5/16" x 1" N.C. hex (13-516) L.W. (92-5) and fl. wshr. (195-21), alternator

1шт.

.

BOLT - 3/8" x 3-1/4" N.C. hex (13-552) locknut (131-6), alternator

1шт.

4

A41070

SPARE PART ALTERNATOR - (35 amp) less pulley and regulator (Field modification - before #8290011)

1шт.

5

A40949

PULLEY

PULLEY - drive, for A41090 alternator

1шт.

5

A41082

PULLEY

PULLEY - drive for A41070 alternator

1шт.

5a

A41083

SPARE PART REGULATOR - (Deplete, then use A42098), alternator

1шт.

5a

A42098

VALVE

REGULATOR - (See A41083), alternator

1шт.

6

F22236

STRAP - mounting, alternator

1шт.

.

BOLT - 3/8" x 3-3/4" N.C. hex (13-660) L.W. (92-6), alternator

3шт.

.

WASHER - 3/8" flat (195-25), alternator

6шт.

7

F22504

SPARE PART PLATE - mounting (Replaces F22235 when stocks are exhausted), alternator

1шт.

F22235

SPARE PART PLATE - mounting (Replaced by F22504 when stocks are exhausted), alternator

1шт.

.

BOLT - 5/16" x 7/8" N.C. hex (13-514) L.W. (92-5) and fl. wshr. (195-521), alternator

2шт.

7a

G2098

SPARE PART BRACKET - mounting plate (#8334601 and after), alternator

1шт.

.

BOLT - 3/8" x 3/4" N.C. hex (13-660), alternator

3шт.

.

LOCKWASHER - 3/8" (92-5) and flatwasher (195-25), alternator

3шт.

7b

A30042

GASKET

GASKET - mounting plate G2098, alternator

1шт.

8

F22237

STRAP - adjusting (Gas engine), alternator

1шт.

.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116) L.W. (92-6), alternator

1шт.

9

A37017

STRAP

STRAP - adjusting (Diesel engine), alternator

1шт.

10

T38864

BUSHING

SPACER - strap, alternator

1шт.

.

BOLT - 3/8" x 3" N.C. hex (13-648) L.W. (92-6), alternator

1шт.

11

G46238

BELT,0.55" W x 17.78" L

Drives Alternator, Fan and Water Pump

1шт.

12

G11339

PULLEY

PULLEY - water pump and fan drive, alternator

1шт.

13

G11342

X

PULLEY - fan and alternator drive (See page 398)

1шт.

.

KEY - 1/4" x 1-1/4" Hi-Pro (126-216), alternator

1шт.

14

A35673

NUT

NUT - pulley retaining, alternator

1шт.

15

G36217

HUB ASSY.

COUPLING - flexible, alternator

1шт.

16

G36905

BLOCK

BLOCK - rubber, with steel insert, alternator

4шт.

17

13-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5, Full Thd

BOLT, , Coupling, Alternator Hex, 7/16"-14 x 1 1/4", G5, Full Thd

4шт.

18

92-7

LOCK WASHER,7/16"

LOCK WASHER, , alternator 7/16"

4шт.

19

95-7

WASHER,7/16"

WASHER - flat, alternator 7/16"

4шт.
