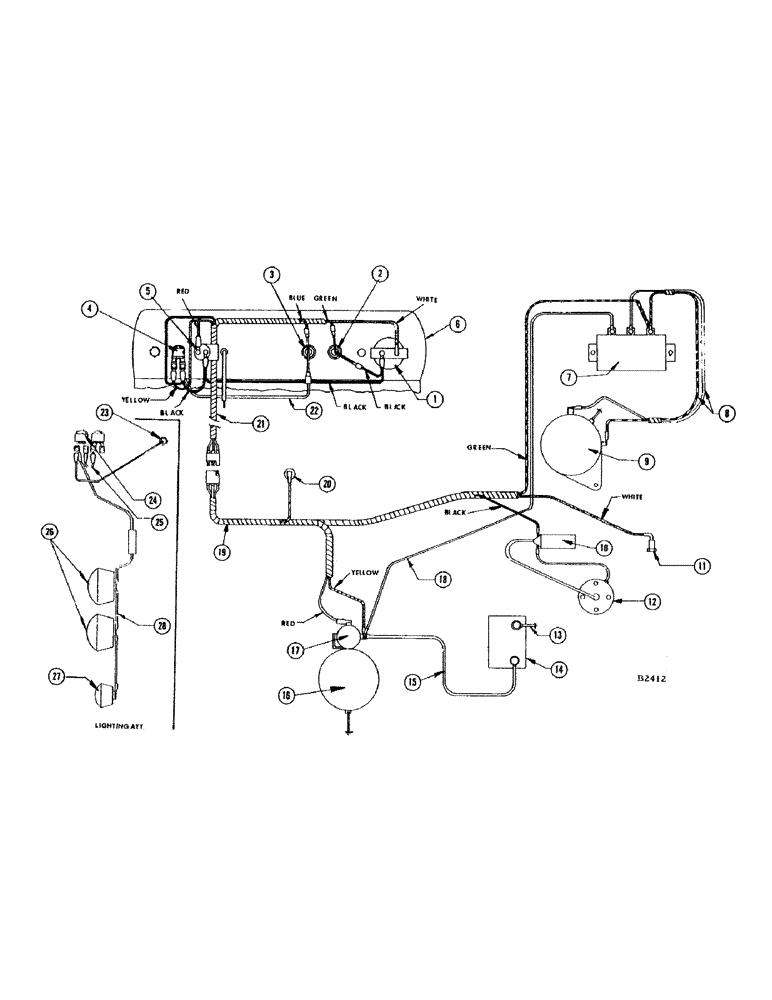

Запчасти Case IH 660 (338) - ELECTRICAL SYSTEM, GAS ENGINE, EQUIPPED WITH GENERATOR

1

F82423

SPARE PART GAUGE - temperature

1шт.

2

F84181

SPARE PART LIGHT - generator indicator

1шт.

3

F82422

SPARE PART LIGHT - oil pressure warning

1шт.

4

A7935

SWITCH

SWITCH - ignition

1шт.

A7819

KNOB

KNOB - (Not shown)

1шт.

5

A30858

SWITCH

STARTING SWITCH - push button type

1шт.

O10463AB

BOOT

BOOT - (Rubber) (Not shown)

1шт.

6

F22375

PANEL - instrument (Replaces F21637 when stocks are exhausted)

1шт.

6

F21637

SPARE PART PANEL - instrument (Replaced by F22375 when stocks are exhausted)

1шт.

7

F84740

SPARE PART REGULATOR - voltage (Prestolite #VBO4201AE-3)

1шт.

.

BOLT - 1/4" x 1-1/2" N.F. hex (14-424) nut (25-114)

4шт.

8

F21705

WIRE -, Serial Range: generator-regulator

2шт.

9

A36279

X

GENERATOR - (Prestolite #GJT-7404A) (Used F21239)

1шт.

.

BOLT - 5/16" x 3/4" N.C. hex (13-512) L.W. (92-5) and fl. wshr. (95-5)

1шт.

10

A33438

COIL

COIL - ignition (Auto-Lite #200603)

1шт.

11

F21200

TRANSMITTER

UNIT - temperature sending

1шт.

.

BUSHING - 1/2" x 1/8" P.T. (221-54)

1шт.

12

A30358

DISTRIBUTOR

DISTRIBUTOR - Auto-Lite #IAD6003-2F

1шт.

13

F18690

SPARE PART STRAP - battery ground

1шт.

14

D44176

BATTERY

BATTERY - 12 volt

1шт.

15

F21063

SPARE PART CABLE - battery to starter solenoid

1шт.

.

NUT - 5/16" N.F. jam (129-162) L.W. (192-20)

1шт.

16

A36584

STARTING MOTOR

MOTOR - starting (Presto-Lite #MDU7104A)

1шт.

.

BOLT - 3/8" x 2" N.C. hex (13-632) L.W. (92-6)

3шт.

16

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

16

104223A1C

CORE-STARTER

Return Part Number STARTER 12 volt Presto Inertia

1шт.

17

A40795

SOLENOID

SOLENOID - starter (Auto-Lite #SAW4201)

1шт.

.

NUT - 5/16" N.F. jam (129-162) L.W. (192-20)

1шт.

18

F21266

CABLE - starter, Serial Range: solenoid-regulator

1шт.

19

F21504

SPARE PART HARNESS - wire, engine portion

1шт.

.

WHITE WIRE - temperature sending unit

1шт.

.

GREEN WIRE - voltage regulator

1шт.

.

BLACK WIRE - coil

1шт.

.

YELLOW WIRE - battery - starter solenoid/generator light

1шт.

.

RED WIRE - starter solenoid

1шт.

.

BLUE WIRE - oil pressure sending unit

1шт.

20

F19683

SPARE PART UNIT - oil pressure sending

1шт.

21

F21638

HARNESS - wire, instrument panel end

1шт.

.

WHITE WIRE - temperature gauge

1шт.

.

GREEN WIRE - generator indicator light

1шт.

.

BLACK WIRE - ignition switch to starter switch, temp. gauge and generator light

1шт.

.

YELLOW WIRE - ignition switch

1шт.

.

RED WIRE - starter switch

1шт.

.

BLUE WIRE - oil pressure indicator light

1шт.

22

F21268

CABLE - ignition switch to oil pressure light

1шт.

23

A24087

LAMP BASE

LAMP - dash (12 volt)

1шт.

.

SCREW - #6-32 x 5/16" rhd. self tapping (187-1007)

2шт.

A22349

BULB

BULB - (Mfg. #1445)

1шт.

24

A10942

KIT

SWITCH - light

1шт.

A7817

KNOB

KNOB - (Not shown)

1шт.

25

F18726

CABLE

WIRE - (12" long) starter switch to light switch

1шт.

26

F82077

LAMP BASE

LAMP - head (12-16 volt, 35 watt)

2шт.

.

NUT - 1/2" N.C. hex (129-105) L.W. (192-23)

2шт.

F21933

BRACKET - head lamp (Not shown)

2шт.

.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-340) nut (129-103)

2шт.

27

A20965

LAMP BASE

LAMP - combination flood and tail

1шт.

.

NUT - 1/2" N.C. hex (129-105) L.W. (92-23)

1шт.

F21933

BRACKET - tail lamp (Not shown)

1шт.

.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-340) nut (129-103)

1шт.

28

F21934

SPARE PART HARNESS - wire (Replaced by F22342 when exhausted)

1шт.

F19785

NIPPLE, LUBE

NIPPLE NIPPLE - wire harness

1шт.

F53322

SPARE PART GROMMET - wire harness

2шт.
