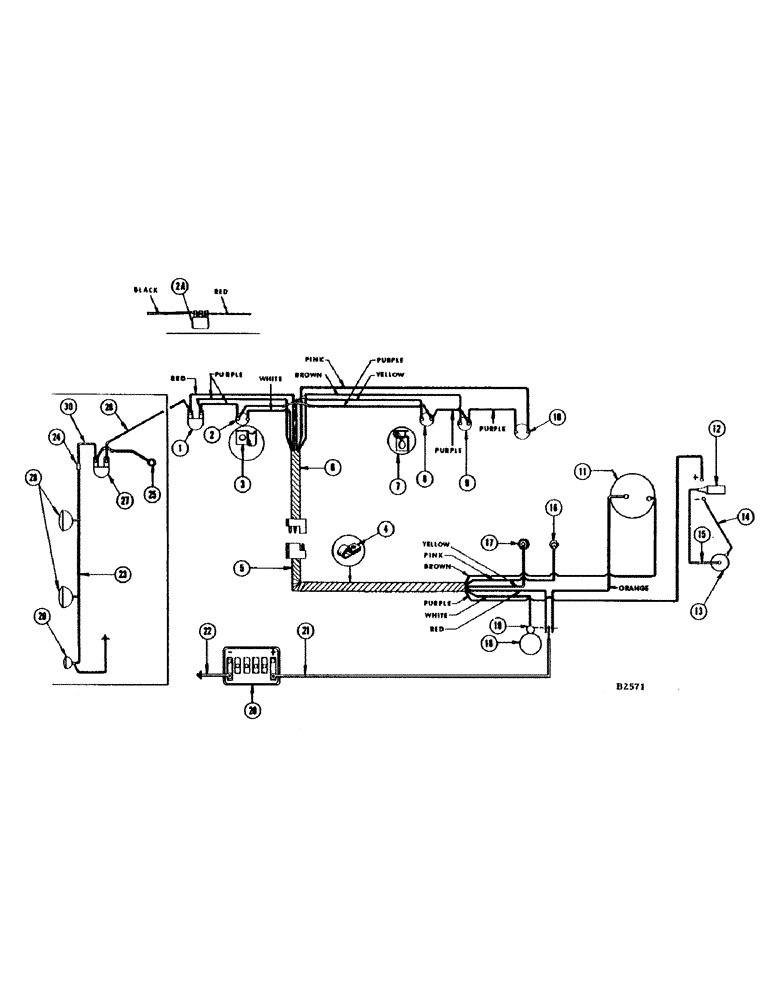

Запчасти Case IH 660 (334) - ELECTRICAL SYSTEM, GAS ENGINE, EQUIPPED WITH ALTERNATOR

1

A7935

SWITCH

SWITCH - ignition (Before #8309001)

1шт.

A7819

KNOB

KNOB - (Not shown)

1шт.

2

A30858

SWITCH

STARTING SWITCH - starter, push button (Before #8309001)

1шт.

O10463AB

BOOT

BOOT - (Rubber) (Not shown)

1шт.

2a

F91864

SWITCH

SWITCH - ignition and starter (#8309001 and after)

1шт.

F13869

X

KNOB - (Not shown)

1шт.

3

F14006

SPARE PART CLIP - under starter switch

1шт.

4

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

CLIP - engine portion, wire harness

1шт.

5

F22238

SPARE PART HARNESS - wire, engine portion

1шт.

.

ORANGE WIRE - starter solenoid to alternator, plus terminal

1шт.

.

PINK WIRE - temperature sending unit

1шт.

.

PURPLE WIRE - ignition coil

1шт.

.

RED WIRE - starter solenoid

1шт.

.

BROWN WIRE - alternator auxiliary terminal

1шт.

.

WHITE WIRE - starter solenoid

1шт.

.

YELLOW WIRE - oil pressure sending unit

1шт.

6

F22239

SPARE PART HARNESS - wire, instrument panel end

1шт.

.

YELLOW WIRE - oil pressure light

1шт.

.

WHITE WIRE - starter switch

1шт.

.

BROWN WIRE - battery warning light

1шт.

.

RED WIRE - ignition switch

1шт.

.

PURPLE WIRE - temperature gauge

1шт.

.

PURPLE WIRE - battery warning light

1шт.

.

PURPLE WIRE - oil pressure light

1шт.

.

PURPLE WIRE - starter switch

1шт.

.

PURPLE WIRE - ignition switch

1шт.

.

PINK WIRE - temperature gauge

1шт.

7

F22229

CLIP - under oil light

1шт.

8

F82422

SPARE PART LIGHT - oil pressure warning

1шт.

F21950

SPARE PART BULB - red (Mfg. #431R)

1шт.

9

F84923

SPARE PART LIGHT - battery warning

1шт.

F21950

SPARE PART BULB - red (Mfg. #431R)

1шт.

10

F82423

SPARE PART GAUGE - temperature

1шт.

11

A41090

ALTERNATOR

ALTERNATOR - (55 amp.) less pulley and regulator (#8290011 and after)

1шт.

.

BOLT - 5/16" x 1" N.C. hex (13-516) L.W. (92-5) and fl. wshr. (195-21)

1шт.

.

BOLT - 3/8" x 3-1/4" N.C. hex (13-652) locknut (131-6)

1шт.

A41070

SPARE PART ALTERNATOR - (35 amp.) less pulley and regulator (Field modification) (Before #8290011)

1шт.

12

A33438

COIL

COIL - ignition

1шт.

13

A30358

DISTRIBUTOR

DISTRIBUTOR

1шт.

14

G13085

ELECTRICAL WIRE

WIRE WIRE -, Serial Range: distributor-coil

1шт.

15

G44085

SPARE PART CABLE -, Serial Range: coil-distributor

1шт.

16

F21200

TRANSMITTER

UNIT - temperature sending

1шт.

.

BUSHING - 1/2" x 1/8" P.T. (221-54)

1шт.

17

F19683

SPARE PART UNIT - oil pressure sending

1шт.

18

A36584

STARTING MOTOR

MOTOR - starting

1шт.

18

104223A1R

REMAN-STARTER

Remanufactured STARTER 12 volt Presto Inertia

1шт.

18

104223A1C

CORE-STARTER

Return Part Number, STARTER 12 volt Presto Inertia

1шт.

.

BOLT - 3/8" x 2" N.C. hex (13-632) L.W. (92-6)

3шт.

19

A40795

SOLENOID

SOLENOID

1шт.

20

D44176

BATTERY

BATTERY - 12V

1шт.

21

F21063

SPARE PART CABLE - battery to starter solenoid (Replaces F21246)

1шт.

.

NUT - 5/16" N.F. hex jam (129-162) L.W. (192-20)

1шт.

22

F18690

SPARE PART CABLE - battery ground (Replaces F21064)

1шт.

23

F22525

HARNESS - wire, for head lamp and tail lamp (#8334601 and after)

1шт.

23

F22342

SPARE PART HARNESS - wire, for head lamp and tail lamp (Before #8334601)

1шт.

24

223-14

FUSE,10 Amp, Type SFE

FUSE - 14 amp.

1шт.

F53322

SPARE PART GROMMET - wire harness

2шт.

25

A24087

LAMP BASE

LAMP - dash (12 volt)

1шт.

.

SCREW - #6-32 x 5/16" rhd. self tapping (187-1007)

2шт.

26

F18726

CABLE

WIRE - (12" long) starter switch to light switch

1шт.

27

A10942

KIT

SWITCH - light

1шт.

A7817

KNOB

KNOB - (Not shown)

1шт.

28

F82077

LAMP BASE

LAMP - head (12-16 volt, 35 watt)

2шт.

.

NUT - 1/2" N.C. hex (129-105) L.W. (192-23)

2шт.

F21933

BRACKET - head lamp (Not shown)

2шт.

.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-340) nut (129-103)

2шт.

29

A20965

LAMP BASE

LAMP - combination flood and tail

1шт.

.

NUT - 1/2" N.C. hex (129-105) L.W. (192-23)

1шт.

A22349

BULB

BULB - (Mfg. #1445)

1шт.

F21933

BRACKET - tail lamp (Not shown)

1шт.

.

BOLT - 3/8" x 3/4" rhd. sq. nk. (111-340) nut (129-103)

1шт.

30

F22523

WIRE - light switch to harness (#8334601 and after)

1шт.
