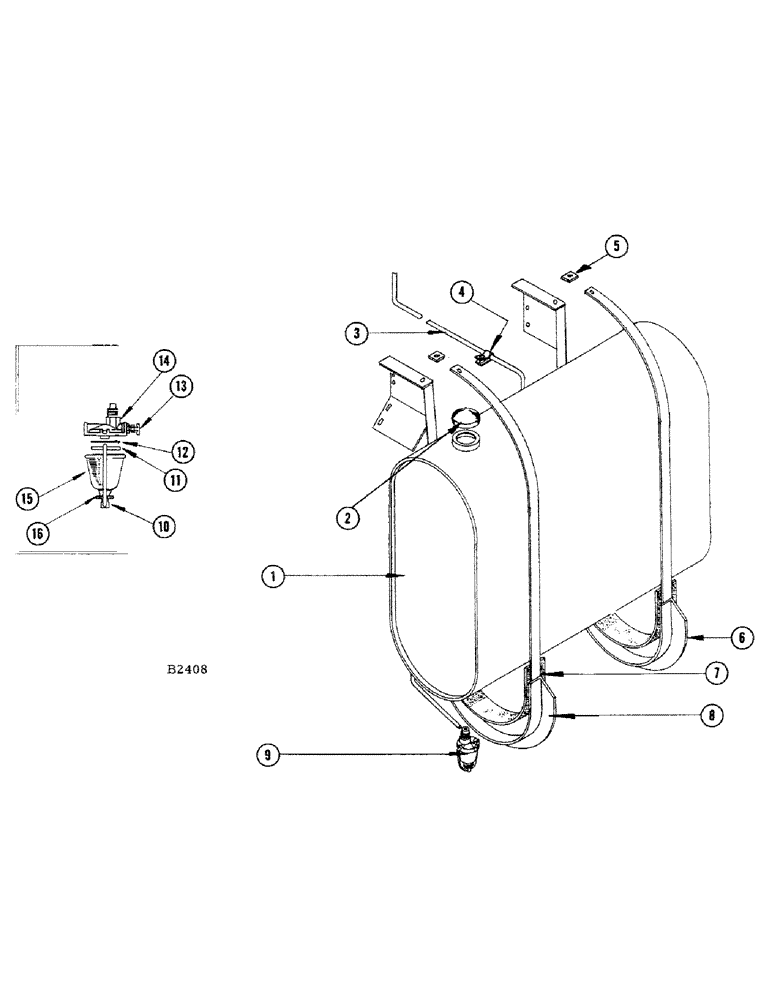

Запчасти Case IH 660 (330) - FUEL TANK

1

F84341

TANK - fuel

1шт.

2

F6541

CAP

1шт.

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" sq. hd. pipe (Gas engine)

1шт.

222-21

FITTING,7/16"-24 x 1/8" NPTF

#68 FL (Diesel engine) 7/16"-24 x 1/8" NPTF

1шт.

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

- 5/16" x 1/8", #69 FL (Diesel engine)

1шт.

3

F21517

LINE - strainer to pump (Gas engine) (Before #8334601)

1шт.

F22510

LINE - strainer to pump (Gas engine) (#8334601 and after)

1шт.

4

O2342FH

CLIP - for F21517 line (Gas engine)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

1шт.

5

F8190

WASHER - fuel tank strap

2шт.

6

F84342

SUPPORT - front, fuel tank

1шт.

BOLT - 5/16" x 1-3/4" N.F. hex (114-127) nut (25-115)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)

1шт.

7

F17261

SCREW

CUSHION - felt, fuel tank strap

2шт.

8

F84343

SUPPORT - rear, fuel tank

1шт.

BOLT - 5/16" x 3/4" N.F. (14-512) nut (25-115)

2шт.

BOLT - 5/16" x 1-3/4" N.F. hex (14-127) nut (25-115)

1шт.

WASHER - 5/16" flat (195-21)

2шт.

9

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

222-24

FITTING,9/16"-24 x 1/8" NPTF

CONNECTOR - 5/16" x 1/8", #68 FL (Gas engine)

1шт.

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

CONNECTOR - 3/8" x 1/8", #68 FL (Diesel engine)

1шт.

10

A11212

BAIL

ASSEMBLY

1шт.

11

A11208

GASKET

- cork

1шт.

12

A11211

FILTER SCREEN

SCREEN

1шт.

13

A11205

VALVE

- needle

1шт.

14

A11214

HEAD

- strainer

1шт.

15

A11209

BOWL

- glass

1шт.

16

A11210

ADJUSTER

CUP AND NUT ASSEMBLY

1шт.
