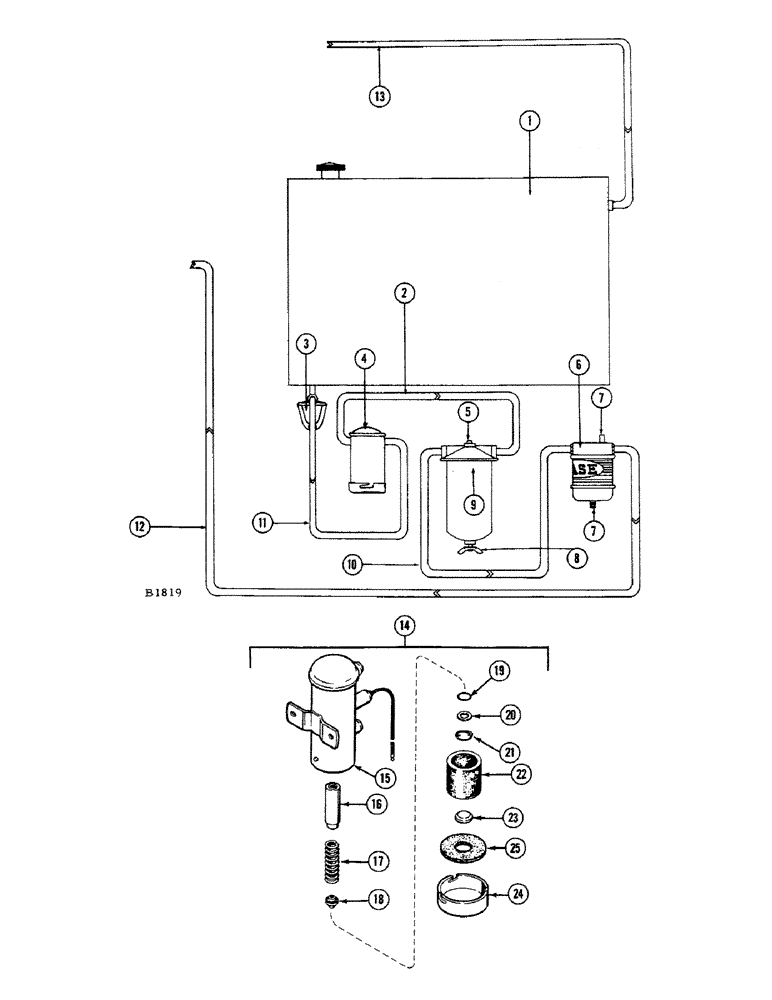

Запчасти Case IH 660 (328) - FUEL SYSTEM, DIESEL ENGINE

1

F84341

FUEL TANK

1шт.

F6541

CAP

1шт.

2

F22382

FUEL LINE - electric pump to first stage filter (#8314001 and after) (See F91844 kit)

1шт.

2

F18998

SCREW

FUEL LINE - electric pump to first stage filter (Before #8314001) (See F91844 kit)

1шт.

3

A30049

STRAINER ELEMENT

STRAINER - fuel

1шт.

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

FITTING - connector, 3/8" x 1/8", #68 FL

1шт.

4

L11122

FUEL PUMP

PUMP - electric fuel (NOTE: On combines prior to #8314001, also order F91844 line kit)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

222-26

HYD CONNECTOR,5/8"-24 x 1/8" NPTF W/Nut

FITTING - connector, 3/8" x 1/8", #68 FL

1шт.

5

O10342AB

VALVE - bleeder, first stage filter

1шт.

6

G45316

FILTER - fuel, second stage

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

and L.W. Hex, 5/16"-18 x 5/8", G5, Full Thd

2шт.

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

FITTING - elbow, 5/16" x 1/4", #69 FL

1шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - elbow, 3/8" x 1-1/4", #69 FL

1шт.

7

G49080

PLUG

SCREW - for ref. 6 filter

2шт.

8

A29990

DRAIN PLUG

DRAIN COCK - for ref. 9 filter

1шт.

9

G45359

FILTER - fuel, first stage

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex, nut and L.W.

2шт.

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

FITTING - elbow, 3/8" x 1-1/4", #69 FL

2шт.

10

F21515

FUEL LINE - first stage filter to second stage filter

1шт.

11

F22381

FUEL LINE - strainer to electric pump (#8314001 and after) (See F91844 kit)

1шт.

11

F21511

FUEL LINE - strainer to electric pump (Before #8314001) (See F91844 kit)

1шт.

F91844

KIT - fuel pump line (Before #8314001 when installing L11122 fuel pump)

1шт.

12

F21567

CARRIAGE BOLT

FUEL LINE - second stage filter to injection pump

1шт.

222-104

SLEEVE,3/8" Tube

FITTING - sleeve, 3/8", #60 FL

1шт.

222-114

NUT,5/8"-24

FITTING - nut, 3/8", #61 FL

1шт.

F9263

CLIP - for ref. 12 fuel line (Not shown)

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex, nut and L.W.

1шт.

13

F22685

PLOW BOLT

RETURN LINE - engine to fuel tank

1шт.

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 1/4" x 1/2", #69 FL

1шт.

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP - corbin

1шт.

14

L11122

FUEL PUMP

ASSEMBLY - electric

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - fuel pump (Order L11122)

1шт.

16

NSS

NOT SOLD SEPARAT

PLUNGER - pump, fuel

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - plunger, fuel pump

1шт.

18

NSS

NOT SOLD SEPARAT

VALVE - cup, fuel pump

1шт.

19

NSS

NOT SOLD SEPARAT

O-RING - valve, fuel pump

1шт.

20

NSS

NOT SOLD SEPARAT

WASHER - o-ring retainer, fuel pump

1шт.

21

NSS

NOT SOLD SEPARAT

KEEPER - o-ring reatiner, fuel pump

1шт.

22

A40314

FILTER CARTRIDGE

FILTER - fuel, pump

1шт.

23

A40311

MAGNET

- plunger (Permanent type), fuel pump

1шт.

24

A40312

COVER

- fuel pump

1шт.

25

A40315

GASKET

- cover, fuel pump

1шт.
