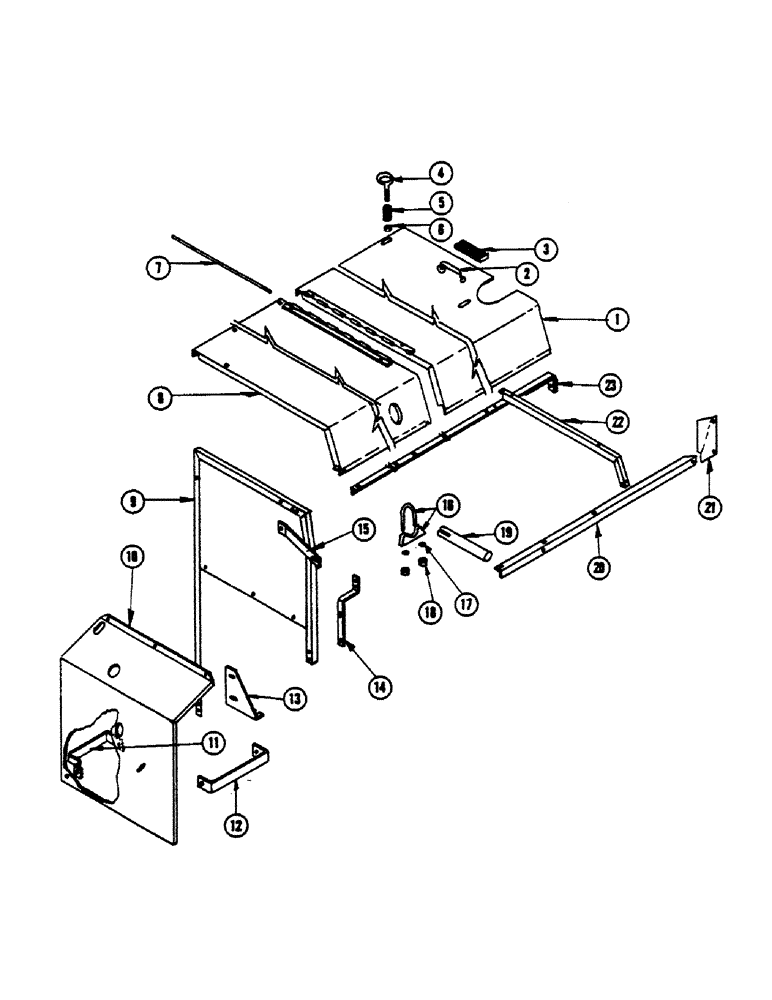

Запчасти Case IH 660 (326) - ENGINE HOOD
№
Артикул
Название
Примечание
Количество
1
F84749
HOOD - hinged half
1шт.
2
228-3
HANDLE - #479 Stanley
1шт.
RIVET - 3/16" x 3/8" W.B. hd. (49-36)
2шт.
3
F22046
SEAL
3шт.
4
F19960
LATCH
- engine hood
2шт.
5
117EB
SPRING
2шт.
7
F20293
ROD - hinge, engine hood
1шт.
8
F84747
HOOD - stationary half
1шт.
BOLT - 1/4" x 1/2" rhd. sq. nk. (111-107) nut (129-105)
3шт.
BOLT - 5/16" x 1/2" rhd. sq. nk. (111-222) nut (129-102)
1шт.
9
F84744
FIREWALL - engine
1шт.
BOLT - 5/16" x 5/8" rhd. sh. sq. nk. (12-510) nut (25-105)
2шт.
10
F22047
SHIELD - engine drive
1шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)
3шт.
11
F22037
BRACE - front, engine drive shield
1шт.
BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114)
1шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)
1шт.
12
F22026
BRACE - rear, engine drive shield
1шт.
BOLT - 5/16" x 5/8" N.C. hex (13-510) L.W. (92-5)
1шт.
BOLT - 1/4" x 1/2" N.F. hex (114-2) nut (129-121)
1шт.
WASHER - 1/4" flat (195-518) L.W. (192-19)
1шт.
13
F22034
BRACKET - support firewall (Before #8357001)
1шт.
F22871
BRACKET - support, firewall (#8357001 and after)
1шт.
BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)
1шт.
BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114)
1шт.
WASHER - 1/4" flat (195-18) L.W. (92-4)
1шт.
14
F22039
STRAP - support, firewall
1шт.
BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)
2шт.
BOLT - 1/4" x 1-1/2" N.F. hex (14-424) nut (25-114)
2шт.
15
F22038
BRACE - air cleaner extension
1шт.
BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)
1шт.
BOLT - 5/16" x 7/8" N.F. hex (14-514) nut (25-115)
1шт.
16
A27077
CLAMP
- muffler extension
1шт.
17
92-5
LOCK WASHER,5/16"
2шт.
18
9635082
NUT,5/16" - 18, Gr 5
- 5/16" N.C. hex
2шт.
19
F22027
EXTENSION - muffler
1шт.
20
F22029
ANGLE - support, rear
1шт.
BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)
1шт.
21
F22031
PLATE - filler, engine hood
1шт.
BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)
1шт.
BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)
1шт.
22
F84746
SUPPORT - rib, engine hood
1шт.
BOLT - 1/4" x 5/8" rhd. sq. nk. (11-410) nut (25-104)
2шт.
23
F22028
ANGLE - support, front
1шт.
BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)
1шт.
Выбрано товаров: 46
