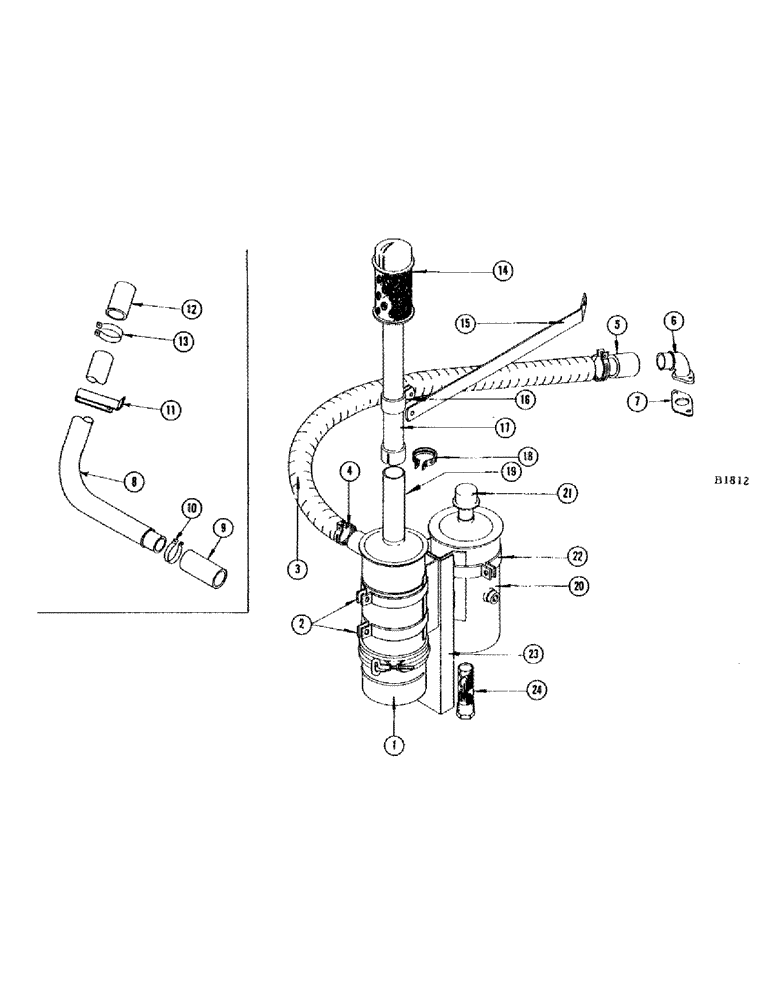

Запчасти Case IH 660 (322) - OIL BATH TYPE AIR CLEANER

1

G45473

AIR CLEANER

1шт.

2

F18725

STRAP - support, air cleaner

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116)

2шт.

3

F18990

SCREW

HOSE - air intake (Manifold to air cleaner) (Diesel engine)

1шт.

4

214-31

X

CLAMP - #15 hose for ref. 3 hose

2шт.

5

F11510

HOSE - (2-3/8" I.D. x 1-3/4" long) air cleaner to tube and air cleaner to extension (Diesel engine)

2шт.

CLAMP - "B" hose (214-34)

4шт.

6

F1593

ELBOW - to manifold (Diesel engine)

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex (13-620) L.W. (92-6)

2шт.

7

D22670

GASKET

- elbow

1шт.

8

F21501

TUBE - air intake (Air cleaner to carburetor) (Gas engine)

1шт.

9

F18696

HOSE - tube to air cleaner (Gas engine)

1шт.

10

214-33

CLAMP

- #23 hose

2шт.

11

F21503

CLAMP - support, for ref. 8 tube (Gas engine)

1шт.

BOLT - 5/16" x 5/8" N.C. hex (13-510) L.W. (92-5)

1шт.

12

F21502

INTAKE AIR HOSE,2.00" ID x 3.00", SAE 20R2

- Tube to carburetor (Gas engine) 2.00" ID x 3.00", SAE 20R2

1шт.

13

214-31

X

CLAMP - #21 hose

2шт.

14

A22301

PRESCREENER

PRE-SCREENER - (Standard)

1шт.

F83641

CLEANER

PRE-CLEANER - Pre-screener (Special)

1шт.

15

F20909

BRACE - extension

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut (25-116)

1шт.

F17934

BRACE - R.H. extension (660 special combines) bolts to top of grain bin

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

1шт.

WASHER - 5/16" flat (95-5)

2шт.

F17935

BRACE - L.H. extension (660 special combine) bolts to top of grain bin

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (925-115)

1шт.

WASHER - 5/16" flat (95-5)

2шт.

16

F19262

CLAMP - air cleaner extension

1шт.

BOLT - 5/16" x 7/8" N.F. hex (14-514) nut (25-115)

1шт.

17

F18724

TUBE - (2-3/8" x 19-1/2" long) inside, air, Serial Range: cleaner-pre-screener

1шт.

18

214-11

X

CLAMP - #11-1/2 hose for ref. 19 tube

1шт.

19

F11511

TUBE - (2-1/2" O.D. x 17-1/2" long) outside (Grain combine)

1шт.

F12107

TUBE - (2-1/2" O.D. x 34-1/2" long) outside (660 special)

1шт.

20

F83852

RESERVOIR - oil

1шт.

ELBOW - 1/2" x 90 degree street (221-414)

1шт.

ELBOW - 3/4" x 90 degree street (221-415)

1шт.

PLUG - 1/4" pipe (221-2)

1шт.

TEE - #6STX-S (218-553)

1шт.

21

F82075

GAUGE - oil level

1шт.

22

F17217

SCREW

STRAP - hydraulic reservoir

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116)

1шт.

23

F81754

PLATE - support, for air cleaner and oil reservoir

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex (14-420) nut (25-114)

2шт.

24

F81630

SCREEN - oil

1шт.
