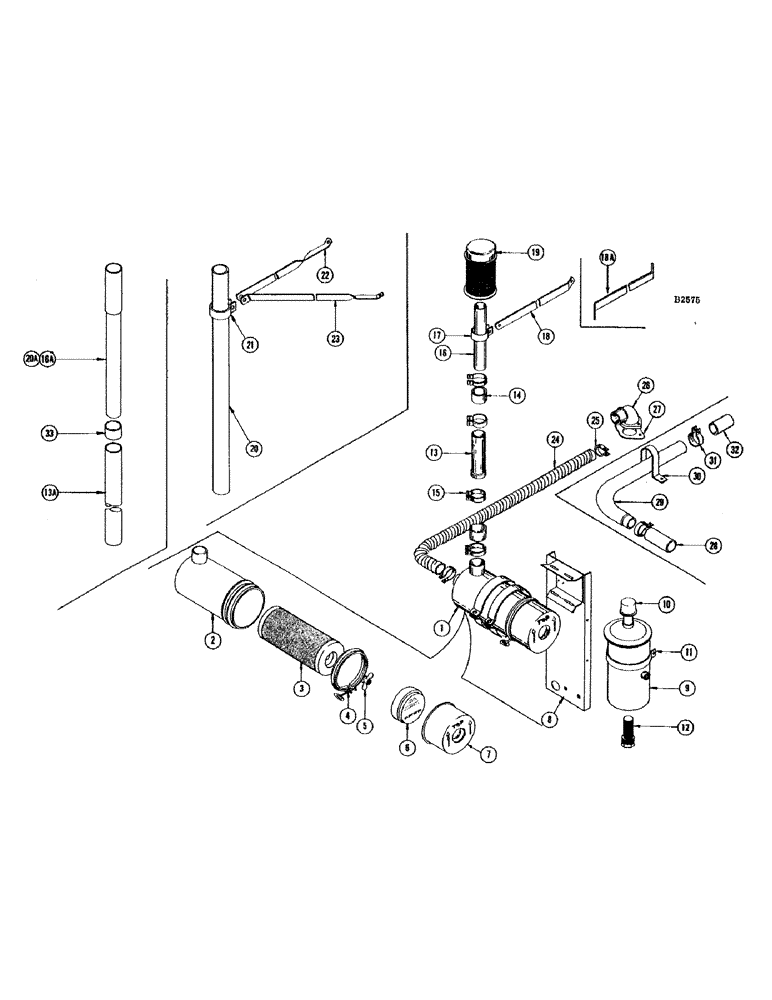

Запчасти Case IH 660 (320) - DRY TYPE AIR CLEANER

1

F84514

AIR CLEANER

1шт.

2

NSS

NOT SOLD SEPARAT

BODY

1шт.

3

F84998

FILTER, ELEMENT

ELEMENT

1шт.

4

F84999

CLAMP,168.28mm

1шт.

5

F91761

WING NUT

WING NUT - with gasket

1шт.

6

F22312

BAFFLE

- air cleaner

1шт.

7

F91760

CUP

- air cleaner

1шт.

8

F84897

PLATE - support, for air cleaner and oil reservoir

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex (14-420) nut and L.W.

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut and L.W.

2шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut and L.W.

1шт.

9

F83852

RESERVOIR - oil

1шт.

ELBOW - 1/2" x 90 degree street (221-414)

1шт.

ELBOW - 3/4" x 90 degree street (221-415)

1шт.

PLUG - 1/4" pipe (221-2)

1шт.

TEE - #6STX-S (218-553)

1шт.

10

F82075

GAUGE - oil level

1шт.

11

F17217

SCREW

STRAP - reservoir

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut and L.W.

1шт.

12

F81630

SCREEN - oil

1шт.

13

F21818

CARRIAGE BOLT

TUBE - outside (Before #8357001)

1шт.

13a

F22755

PLOW BOLT

TUBE - outside

1шт.

14

F11510

HOSE

2шт.

15

214-35

CLAMP

- "B" hose, for F11510 hose and tubes

4шт.

16

F21819

CARRIAGE BOLT

TUBE - extension (Grain combine) (Before #8357001)

1шт.

16a

F94239

TUBE - extension (#8357001 and after)

1шт.

17

F19262

CLAMP - extension brace

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex (14-524) nut and L.w.

1шт.

18

F22185

BRACE - extension (Before #8334601)

1шт.

F22501

BRACE - extension (Grain combines only - bolts to grain bin) (#8334601 and after)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut and L.W.

1шт.

18a

F22500

BRACE - extension (Bolts to muffler) (#8334601 and after)

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex (14-520) nut, L.W., and fl. wshr.

1шт.

19

F83641

CLEANER

PRE-CLEANER, PRE-SCREENER

1шт.

20

F12107

TUBE - extension (660 special combine) (before #8357001)

1шт.

20a

F94239

TUBE - extension (#8247001 and after)

1шт.

21

F19262

CLAMP - extension braces (660 special) (Before #8357001)

1шт.

BOLT - 5/16" x 1-1/2" N.F. hex (14-524) nut and L.W.

1шт.

22

F17935

BRACE - L.H. extension (660 special) (Before #8357001)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut and L.W.

1шт.

WASHER - 5/16" flat (95-5)

2шт.

23

F17934

BRACE - R.H. extension (660 special) (Before #8357001)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut and L.W.

1шт.

WASHER - 5/16" flat (95-5)

2шт.

24

F18990

SCREW

HOSE - air intake (Manifold to air cleaner) (Diesel engine)

1шт.

25

214-31

X

CLAMP - #15 American hose, for F18990

2шт.

26

F1593

ELBOW - to manifold (Diesel engine)

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex (13-620) L.W. (92-6)

2шт.

27

D22670

GASKET

- elbow (Diesel engine)

1шт.

28

F18696

HOSE - tube to air cleaner (Gas engine)

1шт.

29

F22186

TUBE - air intake (Air cleaner to carburetor) (Gas engine)

1шт.

30

F21503

CLAMP - support, for ref. 29 tube (Gas engine)

1шт.

BOLT - 5/16" x 5/8" N.C. hex (13-510) L.W. (92-5)

1шт.

31

214-31

X

CLAMP - #21 Garret hose, for F21503

2шт.

32

F21502

INTAKE AIR HOSE,2.00" ID x 3.00", SAE 20R2

- Tube to carburetor (Gas engine) 2.00" ID x 3.00", SAE 20R2

1шт.

33

F11510

HOSE - for F94239

1шт.
