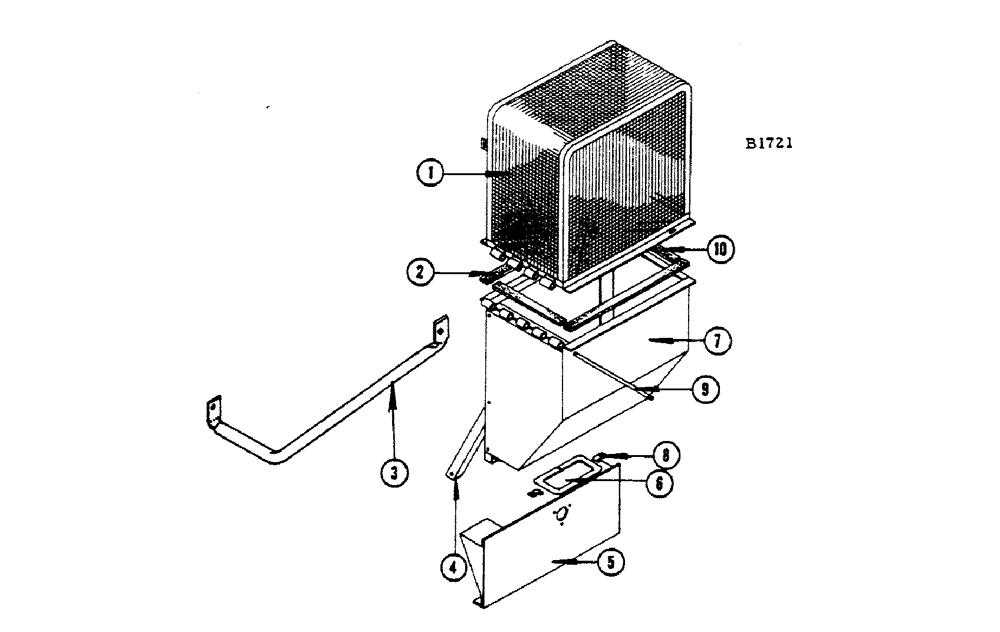

Запчасти Case IH 660 (318) - RADIATOR FRAME AND SCREEN

1

F82004

SCREEN - radiator

1шт.

NUT - 1/4" N.C. wing (129-409) L.W. (192-19)

3шт.

2

F17563

SEAL - (22-1/8") top of stack, R.H. and L.H.

2шт.

3

F22502

BRACE - rear, radiator support (Replaces F17185 when stocks are exhausted)

1шт.

3

F17185

BRACE - rear, radiator support (Replaced by F22502 when stocks are exhausted)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

1шт.

BOLT - 1/4" x 1" N.F. hex (14-416) nut (25-114)

1шт.

4

F17184

BRACE - front, radiator support

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

1шт.

BOLT - 1/4" x 1" N.F. hex (14-416) nut (25-114)

1шт.

5

F82431

SUPPORT - radiator

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) L.W. (92-6)

2шт.

6

F8077

DOOR - access (Before #8357001)

1шт.

6

F94229

DOOR - access (#8357001 and after)

1шт.

BOLT - 1/4" x 1/2" N.F. hex (14-48) nut (25-114)

4шт.

WASHER - 1/4" plain (195-18) L.W. (92-4)

4шт.

7

F83849

STACK - air, radiator

1шт.

8

F86525

CLIP

- spring, door

1шт.

151-123

RIVET - 3/16" x 4/16" semi-tubular

2шт.

9

F17566

ROD - hinge

1шт.

PIN - cotter, 1/8" x 3/4" (132-46)

2шт.

10

F17561

SEAL ASSY.

SEAL - (12-3/4") top of stack, front and rear

2шт.
