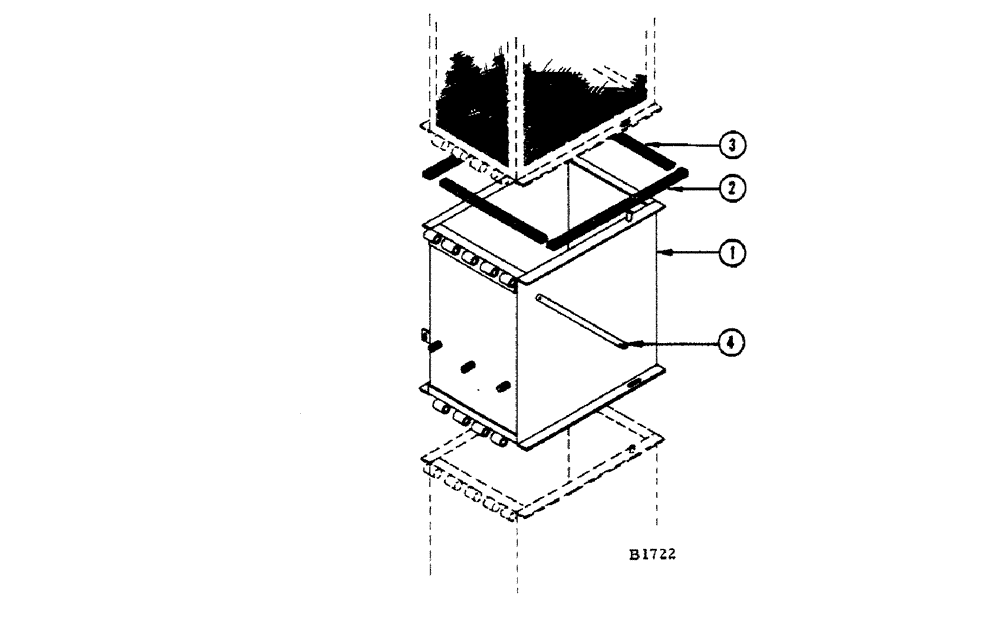

Запчасти Case IH 660 (318[A]) - AIR STACK EXTENSION ATTACHMENT

1

F82081

EXTENSION

- Air Stack

1шт.

SCREW - 1/4" X 3/4" N.C. mach. (183-608)

2шт.

NUT - 1/4" N.C. Hex (129-101) L.W. (192-19) Wshr. (195-102)

3шт.

2

F17181

SEAL - Vertical, Side

2шт.

3

F17561

SEAL ASSY.

SEAL - Vertical, Front & Rear

2шт.

4

F17566

ROD - Hinge, Air Stack Extension

1шт.

PIN - Cotter, 1/8" X 3/4" (132-46)

2шт.
