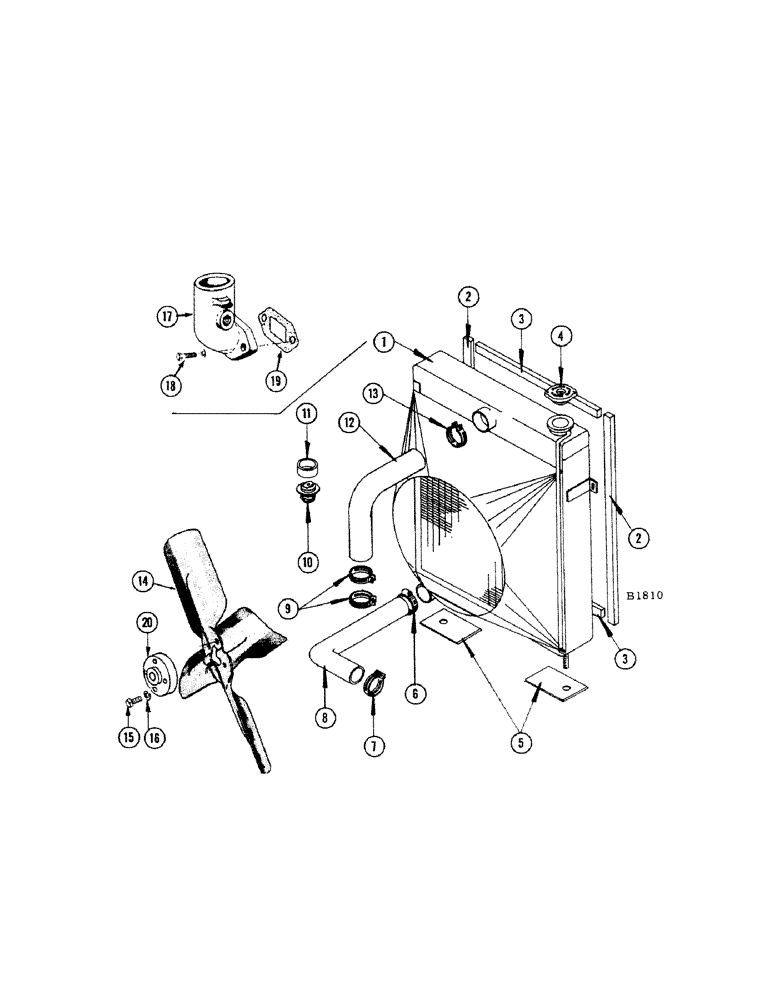

Запчасти Case IH 660 (316[A]) - RADIATOR

1

F81622

RADIATOR - (Before #8309001)

1шт.

F84896

RADIATOR - (#8309001 and after)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (

2шт.

PLUG - 1/4" sq. hd. pipe (221-2)

1шт.

2

F17181

SEAL - side, radiator frame, vertical

2шт.

3

F17180

SEAL - horizontal, top and bottom of radiator frame

2шт.

4

F18405

CAP

- radiator

1шт.

5

F17170

PAD - rubber, radiator

2шт.

6

214-27

X

CLAMP - (#13 hose) for lower hose

1шт.

7

214-26

CLAMP

- (#12 hose) for lower hose

1шт.

8

F17142

HOSE

- lower, radiator (Gas engine)

1шт.

A30169

HOSE - lower, radiator (Diesel engine)

1шт.

9

214-32

X

CLAMP - (#15-1/2 hose) for upper hose (Lower)

2шт.

10

G11065

CASE

THERMOSTAT - (177 degree to 182 degree) (Gas engine)

1шт.

A57641

THERMOSTAT

- (180 degrees) (Diesel engine)

1шт.

11

G49625

SUPPORT

- hose clamp and thermostat (Gas engine)

1шт.

12

F17166

HOSE

- upper, radiator

1шт.

13

214-32

X

CLAMP - (#15-1/2 hose) for upper hose (Upper)

1шт.

14

G45243

FAN

1шт.

15

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

4шт.

16

92-5

LOCK WASHER,5/16"

4шт.

17

G11965

ELBOW

- water outlet (Gas engine)

1шт.

18

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

LOCKWASHER - 3/8" (92-6)

2шт.

19

A30003

GASKET

- water outlet elbow

1шт.

20

F22388

HUB - fan (#8309001 and after)

1шт.
