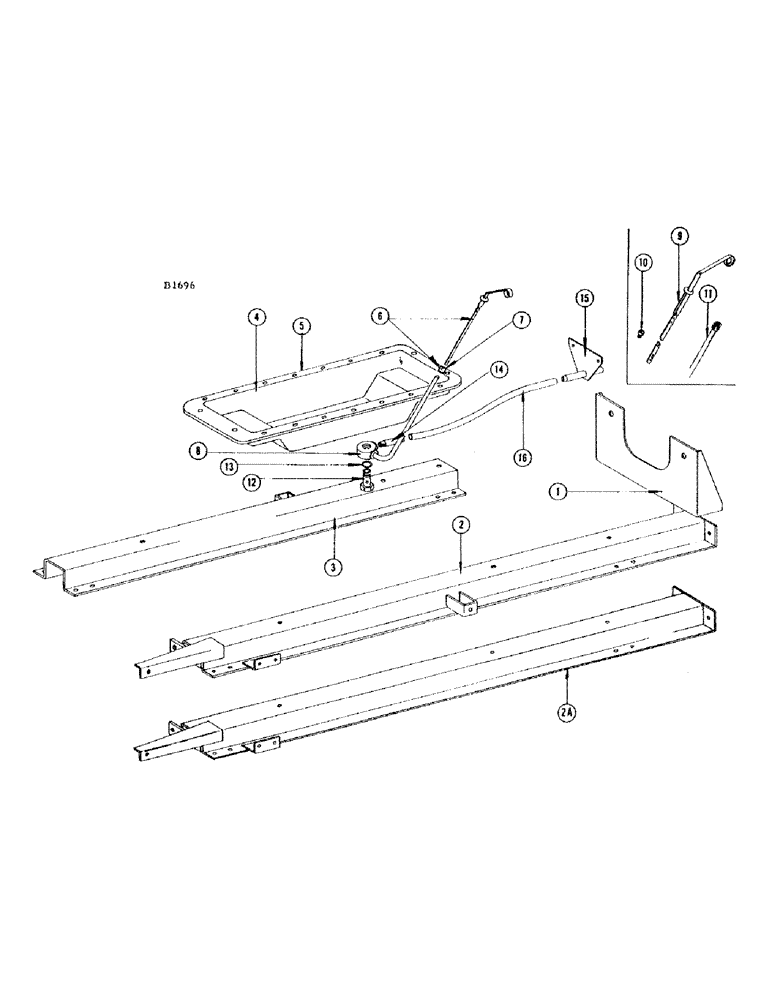

Запчасти Case IH 660 (314) - ENGINE MOUNTING RAILS

1

F22499

SUPPORT - R.H. (Replaces F17156 when stocks are exhausted)

1шт.

F17156

SUPPORT - R.H. (Replaced by F22499 when stocks are exhausted)

1шт.

BOLT - 1/2" x 1" N.C. hex (13-816) L.W. (92-8)

2шт.

BOLT - 5/8" x 2" N.F. hex (14-1032) nut (25-1110)

2шт.

2

F82906

RAIL - rear (Before #8334601)

1шт.

2a

F91965

RAIL - rear (#8334601 and after)

1шт.

BOLT - 1/2" x 1" N.C. hex (13-816) L.W. (92-8)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) L.W. (92-6)

1шт.

BOLT - 1/2" x 1-1/2" N.C. hex (13-824) L.W. (92-8)

1шт.

F18993

PAD - (Rubber) engine rail F81618 (Diesel engine) (Not shown)

4шт.

BOLT - 3/8" x 1" N.F. hex (14-616) dbl. nut (25-116)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) dbl. nut (25-116)

4шт.

3

F81618

RAIL - front

1шт.

BOLT - 1/2" x 1" N.C. hex (13-816) L.W. (92-8)

1шт.

BOLT - 1/2" x 1-1/2" N.C. hex (13-824) L.W. (92-8)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) L.W. (92-6)

1шт.

4

A36788

OIL PAN - diesel engine, drain

1шт.

BOLT - 5/16" x 3/4" N.C. hex (193-514), oil pan and drain

18шт.

A36717

PAN

OIL PAN - gas engine, drain

1шт.

BOLT - 5/16" x 3/4" N.C. hex (193-514), oil pan and drain

18шт.

5

A40712

KIT

GASKET - oil pan, drain

1шт.

6

G37037

DIPSTICK

- oil level (Diesel engine), pan and drain

1шт.

7

G46892

OIL SEAL

OIL SEAL, pan and drain

1шт.

8

F82032

SUPPORT - dispstick (Diesel engine), oil pan and drain

1шт.

9

F82567

DIPSTICK - oil level (Gas engine) (Before engine #2615012), pan and drain

1шт.

9

A37932

DIPSTICK - oil level, with support (Gas engine) (Engine #2615012 and after), pan and drain

1шт.

10

G46892

OIL SEAL

OIL SEAL, pan and drain

1шт.

11

G45139

BRACKET

SUPPORT - dipstick (Gas engine) (Before engine #2615012), oil pan and drain

1шт.

11

NSS

NOT SOLD SEPARAT

SUPPORT - dipstick (Gas engine) (Engine #2615012 and after), oil pan and drain

1шт.

12

F17885

PLUG - oil drain (Diesel engine), pan and drain

1шт.

F21376

PLUG - oil drain (Gas engine), pan

1шт.

ELBOW - 3/8" x 90 degree pipe (221-376), oil pan and drain

1шт.

13

A30059

GASKET

- oil drain plug (Diesel engine), pan

2шт.

F22012

GASKET - oil drain plug (Gas engine), pan

1шт.

14

F17865

NIPPLE - drain, oil pan

1шт.

15

F82027

PIPE - engine oil drain, with bracket, pan

1шт.

CAP - 3/8" pipe (221-524), oil pan and drain

1шт.

BOLT - 1/4" x 5/8" N.F. hex (14-410) nut (25-114), oil pan and drain

2шт.

16

F21346

HOSE - drain, oil pan

1шт.

CLAMP - #4-1/2 American hose (214-9), oil pan and drain

2шт.
