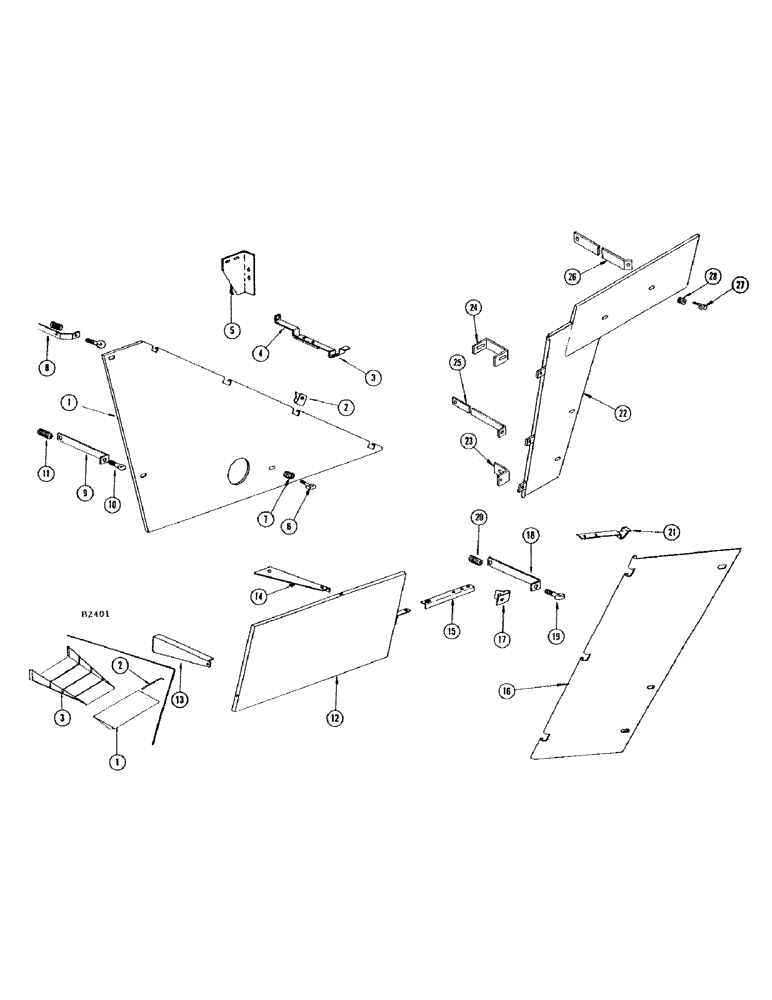

Запчасти Case IH 660 (310) - DRIVE SHIELDS, TRACTION DRIVE SHIELD

1

F91839

SHIELD - traction drive (Replaces F84421 when stocks are exhausted) (Replaced by F22370 when exhausted)

1шт.

1

F84421

SHIELD - traction drive (Replaced by F91839 when stocks are exhausted)

1шт.

1

F22370

SHIELD - traction drive (Replaces F91839 when exhausted)

1шт.

2

F20976

CLIP

- hinge

4шт.

2

F20976

CLIP

- hinge

4шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex, nut and L.W.

4шт.

3

F60832

LATCH - strap (Used with F84421 shield)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

4

F22059

STRAP - support, for latch (Used with F84421 shield)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex nut and L.W.

1шт.

5

F21719

BRACKET - support (Bagger combines)

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

6

F19960

LATCH

BOLT - latch, for F91839 shield

1шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. lock

1шт.

7

117EB

SPRING

- latch bolt

1шт.

8

F21578

BRACE - front, upper

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 3/4", G5, Full Thd

2шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

9

F21499

BRACE - front, lower

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

195-21

WASHER,5/16"

- flat 5/16"

1шт.

F21202

BRACE - L.H. inner (Used when fan housing shield is used)

1шт.

F22299

BRACE - L.H. outer (Used when fan housing shield is used)

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

1шт.

10

F19960

LATCH

BOLT - latch, fan braces F21499 and F21578

2шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. lock

2шт.

11

117EB

SPRING

- latch bolt

2шт.

12

F84425

SHIELD - elevator drive, grain shield

1шт.

13

F20968

SUPPORT - lower, elevator shield, grain drive

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex, nut and lockwasher, grain elevator drive shield

2шт.

14

F21516

SUPPORT - upper, elevator shield (Diesel engine), grain drive shield

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W., grain elevator drive shield Hex, 3/8"-24 x 3/4", G5, Full Thd

1шт.

15

F21351

ADAPTER - shield (Grain combine and 660 special with standard grain bin), elevator drive

1шт.

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

Nut and L.W., grain elevator drive shield Hex, 5/16"-24 x 3/4", G5, Full Thd

3шт.

16

F84423

SHIELD - R.H. drive (Grain bin and bagger combines - standard grain bin chain cylinder drive)

1шт.

16

F84428

SHIELD - R.H. drive (660 special with standard bin - chain cylinder drive)

1шт.

16

F84426

SHIELD - R.H. drive (660 special - with edible bean bin - chain cylinder drive)

1шт.

17

F20976

CLIP

- hinge

3шт.

114-2

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

- 1/4" x 1/2" N.F. hex, nut and L.W.

3шт.

18

F21499

BRACE - upper and lower (Grain bin and bagger combine)

2шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

F21201

BRACE - R.H. (Used when fan housing shield is used)

1шт.

19

F19960

LATCH

BOLT - latch

2шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. hex lock

2шт.

20

117EB

SPRING

- latch bolt

2шт.

21

F60832

LATCH - strap

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut and L.W. Hex, 1/4"-28 x 1/2", G5, Full Thd

2шт.

22

F91820

SHIELD - R.H. drive (660 special with standard grain bin - V.S. cylinder drive)

1шт.

22

F91821

SHIELD - R.H. drive (660 special with edible bean bin - V.S. cylinder drive)

1шт.

22

F91818

SHIELD - R.H. drive (Grain bin and bagger combines - standard grain bin - V.S. cylinder drive)

1шт.

23

F22355

HINGE - offset, center and lower for F91818 shield

2шт.

23

F22355

HINGE - offset, for F91820 shield and F91821 shield

3шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

6шт.

24

F22383

HINGE - offset, top, for F91818 shield (Before #8357001)

1шт.

24

F22764

HINGE - offset, top, for F91818 shield (#8357001 and after)

1шт.

114-3

BOLT,Hex, 1/4" - 28 x 5/8", Gr 5

Nut and L.W. Hex, 1/4"-28 x 5/8", G5, Full Thd

2шт.

25

F21500

BRACE - upper and lower, rear

2шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex, nut and L.W.

2шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

2шт.

26

F22343

BRACE - upper front

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex, nut and L.W.

1шт.

14-514

BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd

Nut and L.W. Hex, 5/16"-24 x 7/8", G5, Full Thd

1шт.

27

F19960

LATCH

BOLT - latch

3шт.

131-506

NUT,1/4-20

NUT - 1/4" N.C. lock

3шт.

28

117EB

SPRING

- latch bolt

3шт.

1

F17850

SHIELD - wide rear axle (660 special combine) (Replaced by F84765 when stocks are exhausted)

1шт.

2

F17852

ROD - rear axle shield (Replaced by F84765 when exhausted)

1шт.

F84765

SHIELD - wide rear axle (Replaces F17150 and F17152 when exhausted)

1шт.

PIN - cotter, 3/32" x 1" (132-28)

1шт.

3

F84650M

SHIELD - rear axle (Machinery item)

1шт.
