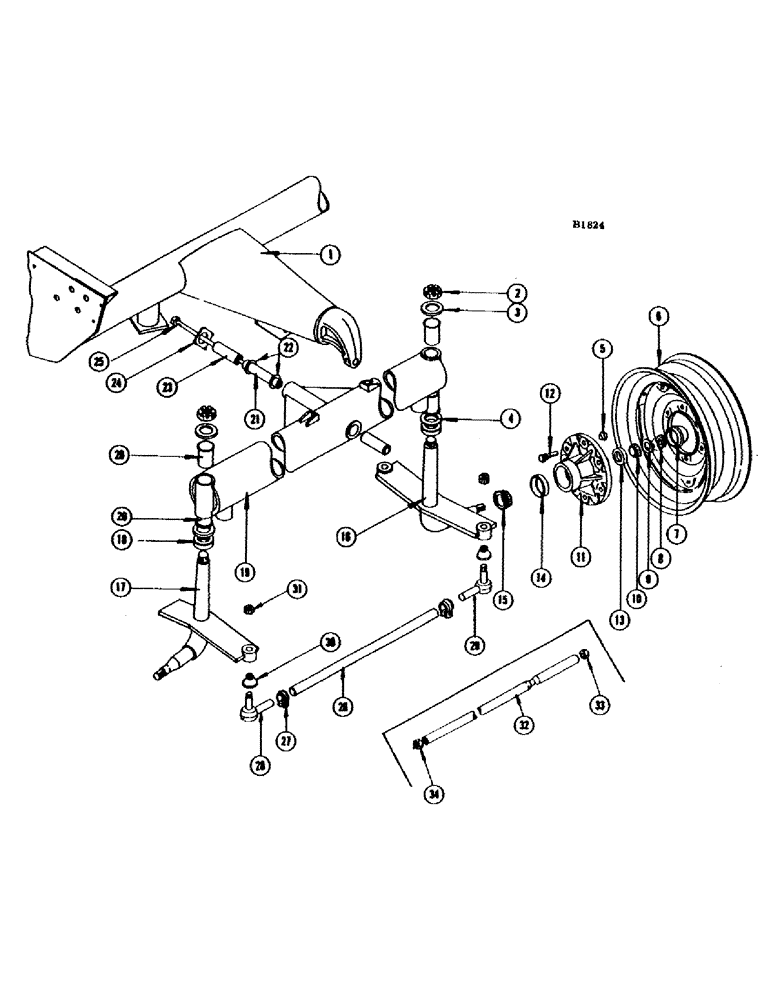

Запчасти Case IH 660 (302) - STEERING ARMS AND AXLE, 40 FOOT AND 66 INCH WIDE AXLE

1

F83440

AXLE, REAR

SUPPORT - axle (Hydro. strg./grain bin) (Replaced by F88323 when exhausted)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

9шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex, nut (25-116) L.W. (92-6)

12шт.

1

F82568

SUPPORT - axle (Manual strg./grain bin) (Replaced by F88321 when exhausted)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

6шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex, nut (25-116) L.W. (92-6)

12шт.

1

F83442

SUPPORT - axle (Hydro. strg./bagger) (Replaced by F88325 when exhausted)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

9шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex, nut (25-116) L.W. (92-6)

12шт.

1

F82675

SUPPORT - axle (Manual strg./bagger) (Replaced by F88324 when exhausted)

1шт.

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

Nut (25-116) L.W. (92-6) Hex, 3/8"-24 x 3/4", G5, Full Thd

8шт.

14-644

SCREW,Hex, 3/8" - 24 x 2 3/4", Gr 5

BOLT - 3/8" x 2-3/4" N.F. hex, nut (25-116) L.W. (92-6)

12шт.

2

F62106

NUT

- steering spindles

2шт.

3

B18131

WASHER,32.16mm ID x 55.63mm OD x 3.17mm Thk

- upper, steering spindles

2шт.

4

A30047

WASHER

- lower, spindles

2шт.

5

F23214

WHEEL NUT

- 1/2" N.F. for ref. 12 bolt

12шт.

6

F18801

MAKING-UP

WHEEL - steering (For 6:00 x 16, 4-ply tire)

2шт.

7

MT2560S

CAP

HUB CAP - wheel

2шт.

8

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex slotted for R.H. and L.H. spindles

2шт.

9

A31217

WASHER - wheel hub

2шт.

10

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing outer, wheel hub

2шт.

11

F81254

HUB - wheel

2шт.

12

11175K

BOLT

6шт.

13

B12410

BEARING, CUP,1.782" OD

CUP - bearing outer

1шт.

14

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing inner

1шт.

15

T17079

CUP

SEAL AND CONE - wheel hub

2шт.

16

F83448

SPINDLE - R.H. (40" wide axle - hydrostatic steering)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.

16

F83081

SPINDLE

- R.H. (40" wide axle - manual steering)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-101

PIN,3/16" x 2 1/4"

Split (Cotter), 3/16" x 2 1/4"

1шт.

16

F83452

SPINDLE - R.H. (66" wide axle - hydrostatic steering)

1шт.

16

F83084

SPINDLE - R.H. (66" wide axle - manual steering)

1шт.

17

F83082

SPINDLE - L.H. (40" wide axle)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

132-58

COTTER PIN

PIN - cotter, 1/8" x 2-1/4"

1шт.

17

F83085

SPINDLE - L.H. (66" wide axle)

1шт.

18

A30054

THRUST BEARING,35.18mm ID x 58.74mm OD x 15.88mm W

BEARING - spindle

2шт.

19

F91738

AXLE

- rear (40" wide axle - hydrostatic steering) (Replaces F83446 when exhausted)

1шт.

19

F83446

AXLE

- rear (40" wide axle - hydrostatic steering) (Replaced by F91738 when exhausted)

1шт.

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 7/16" - 45 degree

2шт.

20

F11016

BUSHING - (Replaced by ref. 20 and 21, page 306)

4шт.

21

F16989

SPACER

1шт.

22

F18831

SPACER

SUPPORT - (Rubber) spacer

2шт.

23

F19421

BUSHING

- pivot

2шт.

F92690

AXLE - rear (40" wide axle - manual steering) (Includes ref. 20, 21, 22 and 23) (Replaces F82591 when exhausted)

1шт.

F82591

AXLE - rear (40" wide axle - manual steering) (Includes ref. 20, 21, 22 and 23) (Replaced by F92690 when exhausted)

1шт.

F83450

AXLE - rear (66" wide axle - hydrostatic steering) (Includes ref. 20, 21, 22 and 23)

1шт.

F82593

AXLE - rear (66" wide axle - manual steering) (Includes ref. 20, 21, 22 and 23)

1шт.

24

F16990

WASHER - thrust, pivot bolt

2шт.

25

F18113

BOLT

- rear axle pivot

1шт.

25-1110

NUT,5/8"-18, G5

- 5/8" N.F. hex and Shakeproof lockwasher (193-14)

1шт.

26

F18081

TUBE - tie rod (40" wide axle)

1шт.

27

F18082

CLAMP - both ends (40" wide axle)

2шт.

28

G45369

END ASSY.

END - L.H., tie rod

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), and 9/16" lockwasher (92-9) 1/8" x 1 1/4"

1шт.

29

G45368

END ASSY.

END - R.H., tie rod

1шт.

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), and 9/16" lockwasher (92-9) 1/8" x 1 1/4"

1шт.

30

G46043

COVER

SEAL - rubber, tie rod ends

2шт.

31

25-139

SLOTTED NUT,9/16"-18, G5

NUT - 9/16" N.F. hex slotted, for ends

2шт.

32

F18080

TUBE - tie rod (66" wide axle) 53.875" L

1шт.

33

G49084

JAM NUT

- jam, R.H. (66" wide axle)

1шт.

34

G49085

JAM NUT

- jam, L.H. (66" wide axle)

1шт.
