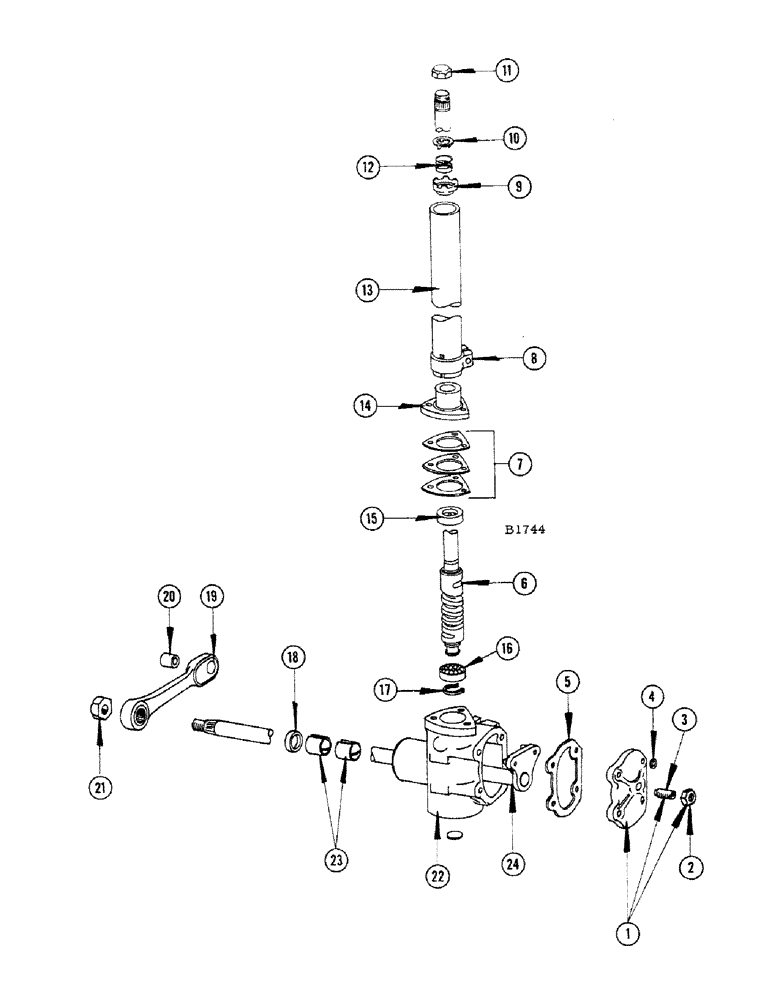

Запчасти Case IH 660 (300) - F81654 STEERING ASSEMBLY

1

A14557

COVER - side

1шт.

2

25-158

JAM NUT,Jam, 1/2"-20, G5

- 1/2" N.F. jam, adjustment screw

1шт.

3

A30675

ADJUSTMENT SCREW,1/2" - 20 x 1 3/16"

SCREW - adjustment, side cover

1шт.

BOLT - 5/16" x 1" N.C. hex (13-516) for ref. 1

4шт.

4

A31046

WASHER

- 4 for ref. 1 bolts and 3 for ref. 14 bolts

7шт.

5

A14558

GASKET

- side cover

1шт.

6

F82088

CAM AND TUBE - steering unit

1шт.

7

A18331

SHIM,.002" Thk

Housing cover .002" Thk

1шт.

A18332

SHIM,.003" Thk

Housing cover .003" Thk

1шт.

A18333

SHIM,.010" Thk

Housing cover .010" Thk

1шт.

8

A31045

CLAMP

- retaining, steering shaft

1шт.

BOLT - 5/16" x 2" N.F. hex (14-532) nut (25-115) L.W. (92-5)

1шт.

9

A30610

BUSHING

BEARING - steering column

1шт.

10

A18325

SEAT

- for ref. 12 spring

1шт.

11

V20313

LOCK WASHER

NUT - steering wheel

1шт.

12

A30713

VALVE SPRING

SPRING - bearing, steering shaft

1шт.

13

F82091

JACKET AND TUBE - steering shaft

1шт.

14

A14559

COVER - upper housing

1шт.

BOLT - 5/16" x 3/4" N.C. hex (13-512)

3шт.

15

L30422

KIT

CUP - ball

2шт.

16

211-9

BALL,5/16" Dia

- 5/16" steel for ball cups

22шт.

17

A18327

RING

SNAP RING - steering

2шт.

18

A18322

SEAL

OIL SEAL - for housing

1шт.

19

F81789

ARM - steering (Not included in F81654 unit)

1шт.

20

F16998

BUSHING

1шт.

21

F18070

NUT - for lever shaft

1шт.

22

F82090

HOUSING - cam

1шт.

23

G10725

BUSHING

2шт.

24

F82089

LEVERSHAFT - steering unit

1шт.
