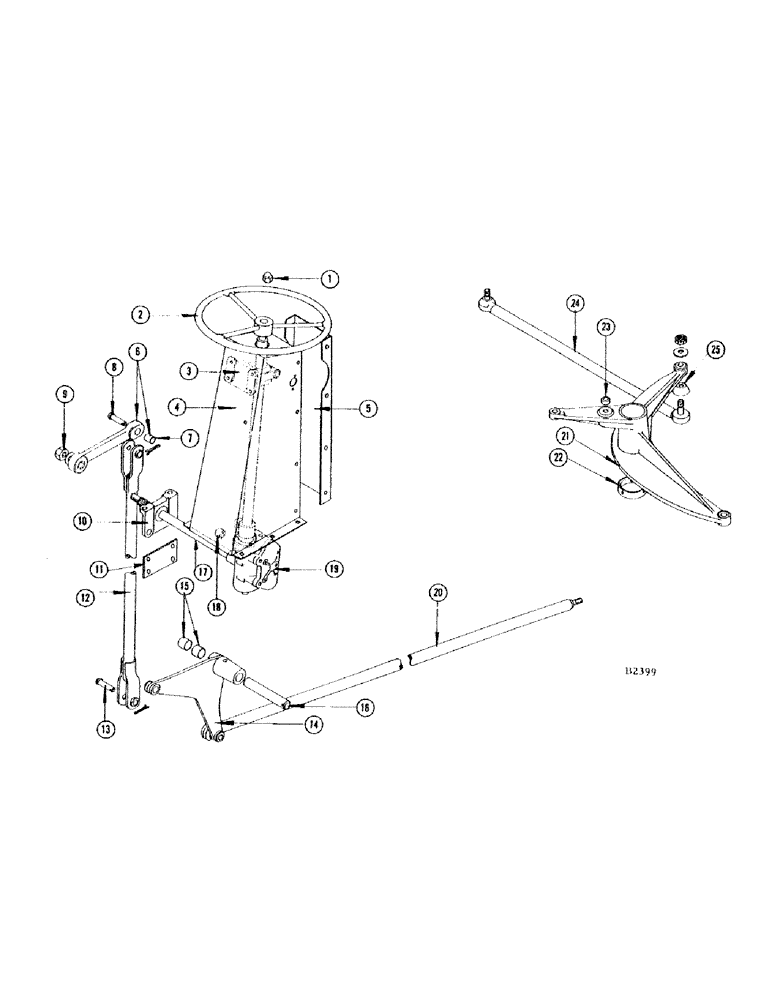

Запчасти Case IH 660 (298) - STEERING ASSEMBLY, MANUAL STEERING

1

V20313

LOCK WASHER

NUT - steering wheel

1шт.

2

F17376

WHEEL

- steering

1шт.

3

F1465

BRACKET - bearing, steering column

1шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. (75-512) nut (25-105)

4шт.

4

F84359

COLUMN - steering

1шт.

BOLT - 5/16" x 1/2" N.F. hex (14-58) nut (25-115)

8шт.

5

F17346

PANEL - rear, steering column

1шт.

SCREW - 1/4" x 1/2" N.C. rhd. mach. (75-48) and Tinnerman nut (13-129)

8шт.

6

F81789

ARM - steering

1шт.

7

F16998

BUSHING

1шт.

8

F17361

SCREW

PIN - ref. 6 arm to ref. 12 shaft

1шт.

PIN - cotter, 1/8" x 1-1/2" (132-52)

1шт.

9

F18070

NUT - for ref. 6 arm

1шт.

LOCKWASHER - 3/4" (92-12)

1шт.

10

F81655

BRACKET - bearing, R.H. support for lever shaft

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

SCREW - 5/16" x 3/4" N.C. rhd. mach. (75-512) nut (25-105)

2шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

2шт.

11

F21557

PLATE - reinforcement, bearing bracket

1шт.

SCREW - 5/16" x 3/4" N.C. mach. (75-512) nut (25-105)

4шт.

12

F81677

SHAFT - steering, lower

1шт.

13

F17361

SCREW

PIN - F81677 shaft to F81347 bellcrank

1шт.

PIN - cotter, 1/8" x 1-1/2" (132-52)

1шт.

14

F81347

BELLCRANK - front steering (Includes 1 ref. 7)

1шт.

FITTING - grease, 1/4" - 28 thrd. str. (219-8)

1шт.

15

F16997

BUSHING

2шт.

16

F16999

SHAFT - pivot

1шт.

PIN - roll, 3/16" x 1-1/2" (138-100)

1шт.

17

F82089

LEVER - shaft, steering unit

1шт.

18

F17287

SPACER - steering unit

1шт.

19

F81654

STEERING UNIT - less arm

1шт.

BOLT - 1/2" x 2" N.F. hex (14-832) nut (25-118)

1шт.

20

F81755

DRAG LINK - front steering (Includes ref. 25)

1шт.

NUT - 9/16" N.F. hex slotted (25-139)

1шт.

PIN - cotter, 1/8" x 1-1/4" (132-50)

1шт.

21

F1480

JOINT

BELLCRANK - rear steering

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

22

F16983

COLLAR - lock, bellcrank

1шт.

BOLT - 1/4" x 3/4" N.F. hex (14-412) nut (25-114)

3шт.

23

F17872

STOP - bellcrank, rear steering

1шт.

BOLT - 1/2" x 2-1/2" N.F. hex (14-840) nut (25-118)

1шт.

24

F81263

DRAG LINK - steering arm (40" wide axle)

1шт.

NUT - 9/16" N.F. hex slotted (25-139) L.W. (92-5)

2шт.

PIN - cotter, 1/8" x 1-1/4" (132-50)

2шт.

25

G46043

COVER

SEAL - rubber

1шт.

F81845

DRAG LINK - steering arm (66" wide axle) (Includes ref. 25)

1шт.

F91956

DRAG LINK - steering arm (78" wide axle) (Includes ref. 25)

1шт.

NUT - 9/16" N.F. hex slotted (25-139) L.W. (92-5)

2шт.

PIN - cotter, 1/8" x 1" (132-50)

2шт.
