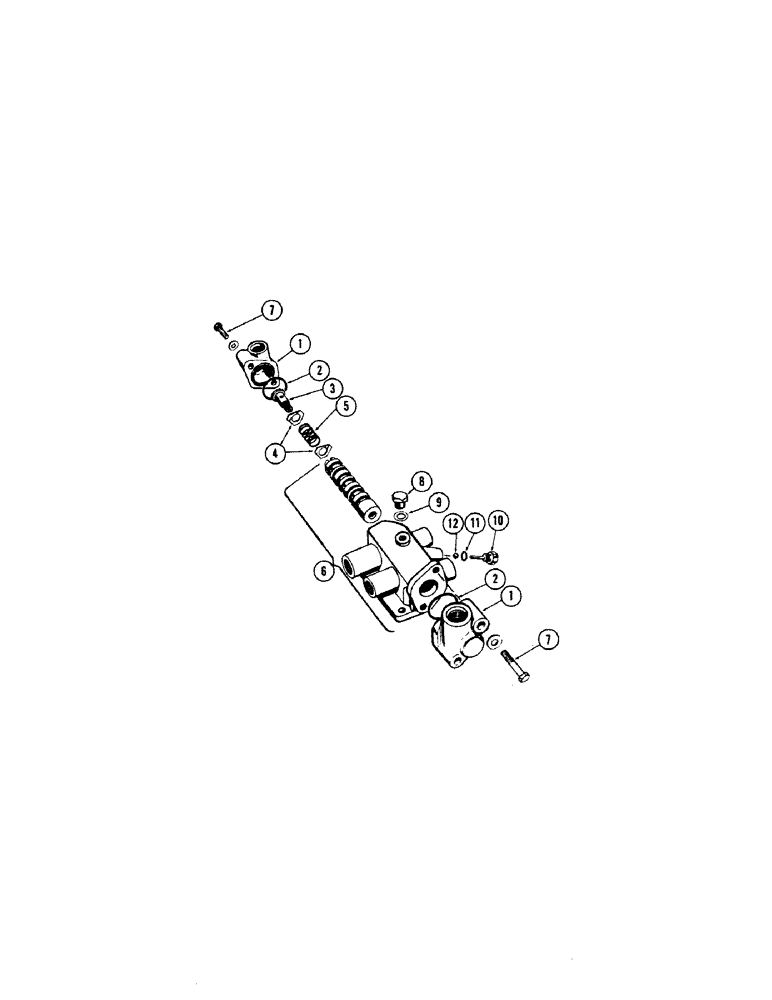

Запчасти Case IH 660 (292[B]) - A37980 HYDROSTATIC STEERING VALVE

1

F19624

CAP

- end

2шт.

2

F21003

O-RING,1.237" ID x 1.443" OD

SEAL - end cap

2шт.

3

F19623

SCREW,3/8" - 24 x 15/16"

- centering

1шт.

4

F19619

WASHER

- centering

2шт.

5

F19622

VALVE SPRING

SPRING - centering

1шт.

6

NSS

NOT SOLD SEPARAT

BODY AND SPOOL

1шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

8

F83122

PLUG

ASSEMBLY - valve body top

1шт.

9

F19628

O-RING

- plug

1шт.

10

F82943

VALVE

PLUG ASSEMBLY - valve relief

1шт.

11

F19630

O-RING

- plug

1шт.

12

211-7

BALL,1/4" Dia

- valve relief 1/4" Dia

1шт.
