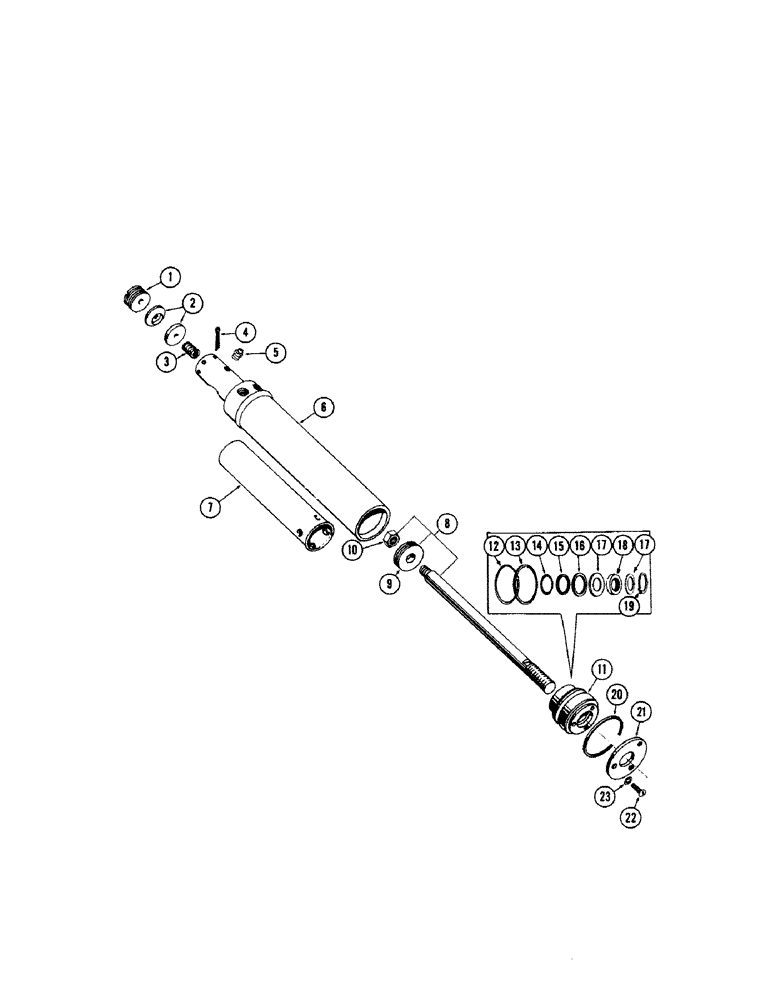

Запчасти Case IH 660 (292[A]) - F91830 HYDROSTATIC STEERING CYLINDER

1

F19617

PLUG - adjusting

1шт.

2

F19616

SEAT - ball

2шт.

3

F19615

SPRING

- ball seat

1шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

6

NSS

NOT SOLD SEPARAT

CYLINDER AND HEAD ASSEMBLY

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE - piston, inner

1шт.

8

F91831

PISTON AND ROD ASSEMBLY

1шт.

9

A56226

PISTON ASSY.

PISTON AND RING ASSEMBLY

1шт.

10

131-576

NUT - 3/8" N.F. hex lock

1шт.

11

A24973

GLAND

CYLINDER BEARING ASSEMBLY

1шт.

12

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

13

A35884

WASHER

RING - backup

1шт.

14

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

- inner

1шт.

15

A35879

RING

- backup, inner

1шт.

16

F9886

WASHER

RING - retaining

1шт.

17

F9887

WASHER

RING - retaining, oil seal

2шт.

18

A11061

SEAL

OIL SEAL - bearing

1шт.

19

A35882

X

SNAP RING - oil seal

1шт.

20

A35885

RING

SNAP RING -, Serial Range: bearing-cylinder

1шт.

21

A35887

PLATE ASSY.

PLATE - end

1шт.

22

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- #10 - 24 x 1/2" pan hd.

3шт.

23

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

4

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.
