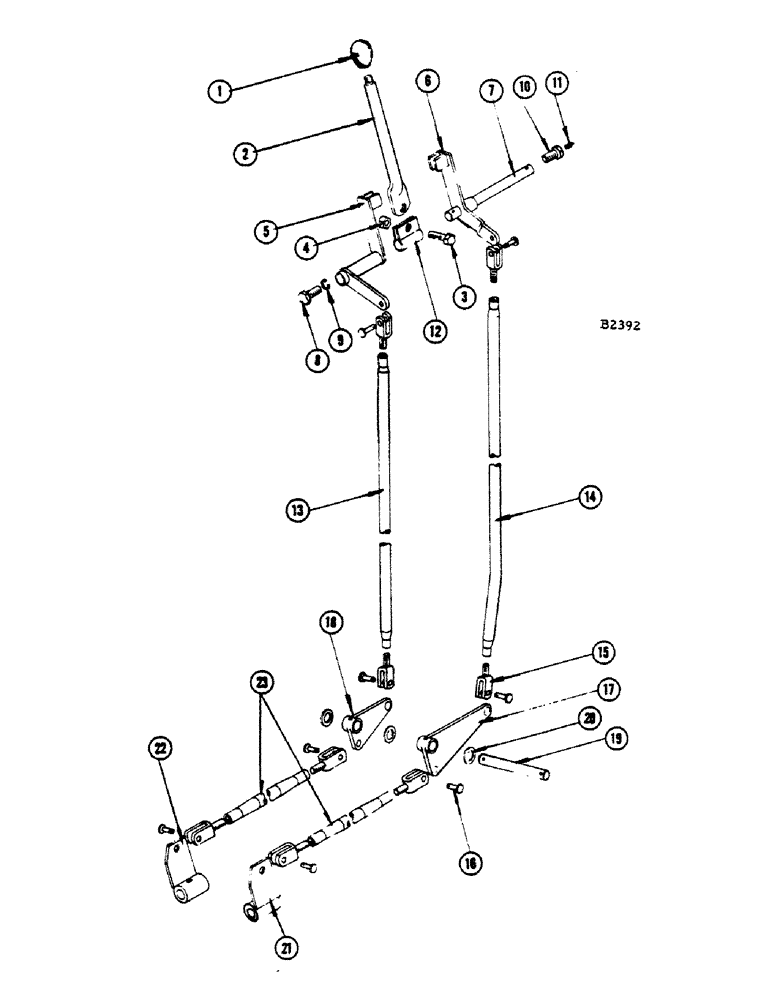

Запчасти Case IH 660 (284) - GEAR SHIFT LINKAGE

1

F5301

KNOB - gear shift lever

1шт.

2

F21574

LEVER - gear shift

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Ref. 2 lever Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

4

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C.

1шт.

5

F1467

ARM - selector, R.H. gear shift

1шт.

6

F1468

ARM - selector, L.H. gear shift

1шт.

7

F17328

SHAFT - gear shift lever pivot

1шт.

8

14-712

BOLT (MACHINE),Hex, 7/16" - 20 x 3/4", Gr 5, Full Thd

BOLT - 7/16" x 3/4" N.F. hex

1шт.

9

92-7

LOCK WASHER,7/16"

2шт.

10

F17899

BOLT - gear shift lever pivot shaft, ref. 7

1шт.

11

219-17

LUBE NIPPLE,3/16" NPTF

NIPPLE, LUBE, 3/16" x .55" lg, Drive

1шт.

12

F8171

PIVOT - gear shift lever, ref. 2

1шт.

13

F17329

SCREW

ROD - upper shift, 2nd and 3rd

1шт.

NUT - 3/8" N.F. hex (25-116)

2шт.

14

F17415

SCREW

ROD - upper shift, 1st and reverse

1шт.

NUT - 3/8" N.F. hex (25-116)

2шт.

15

VR2694

CLEVIS - gear shift rods

8шт.

16

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , for ref. 15 3/8" x 1.060"

8шт.

PIN - cotter, 3/32" x 7/8" (132-27)

8шт.

17

F1444

BELLCRANK - 1st and reverse shift rod

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

18

F1443

BELLCRANK - 2nd and 3rd shift rod

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

19

F16909

SHAFT - pivot, bellcranks, ref. 17 and 18

1шт.

PIN - cotter, 3/16" x 1" (132-91)

2шт.

20

B18080

WASHER

- bellcrank pivot shaft

1шт.

21

F81300

BRACKET - front shift rail

1шт.

PIN - groove 1/4" x 1-1/2" (135-359)

1шт.

22

F81738

BRACKET - rear shift rail

1шт.

PIN - groove 1/4" x 1-1/2" (135-359)

1шт.

23

F16911

ROD - lower shift, for 2nd and 3rd, 1st and reverse

2шт.

NUT - 3/8" N.F. hex (25-116)

4шт.
