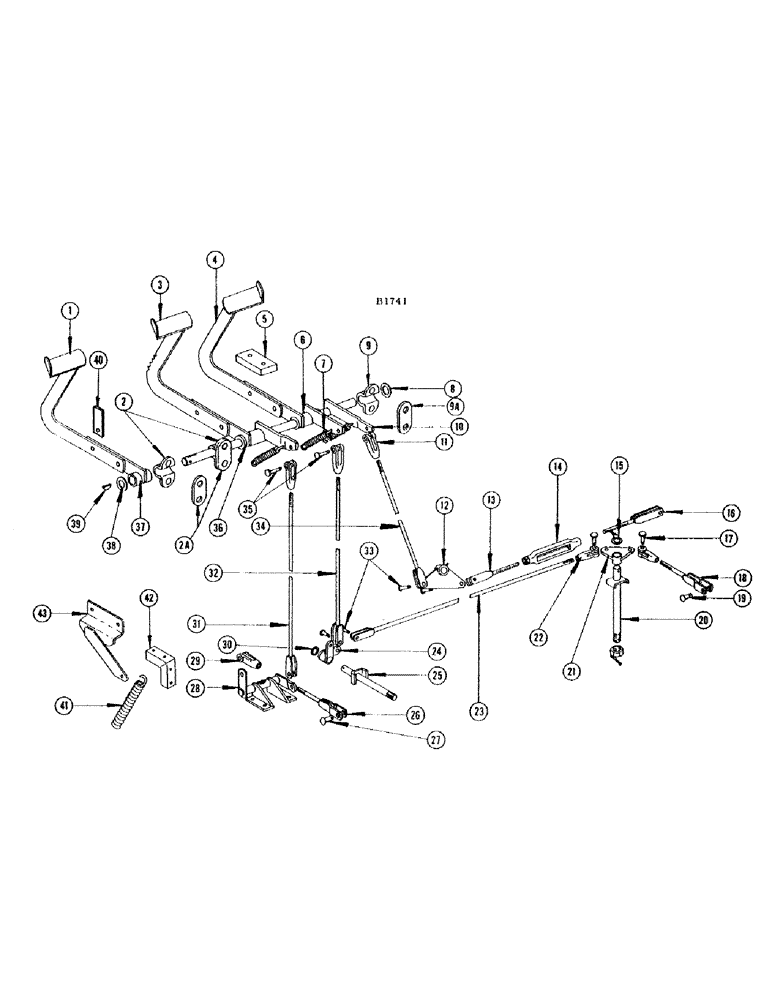

Запчасти Case IH 660 (280) - TURNING BRAKE PEDAL AND LINKAGE

1

F81673

PEDAL - clutch

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

2шт.

2

F22384

BEARING - pivot, brake and clutch shaft (Replaces F1227 when stocks are exhausted)

2шт.

2a

F22385

SPACER - pivot bearing F22384

2шт.

F1227

BEARING - pivot, brake and clutch shaft (Replaced by F22384 and F22385 when stocks are exhausted)

2шт.

FITTING - grease, 1/4" - 28 thrd. str. (219-8)

2шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

4шт.

3

F81749

PEDAL - L.H. brake

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

2шт.

4

F81935

PEDAL - R.H. brake

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

2шт.

5

F4334

BLOCK - rub, R.H. brake pedal

1шт.

BOLT - 5/16" x 1-1/4" N.C. rhd. sq. nk. (11-520) nut (25-105)

2шт.

6

F81933

HUB - R.H. brake pivot

1шт.

FITTING - grease, 1/4" - 28 thrd. str. (219-20)

1шт.

7

F17468

SPRING

- clutch and brake rods (Before #8314921)

3шт.

7

F17468

SPRING

- brake rods (#83114921 and after)

2шт.

8

O906B

WASHER

- brake pedal shaft

1шт.

9

F22384

BEARING - pivot, clutch shaft (Replaces F1227 when stocks are exhausted)

1шт.

9a

F22385

SPACER - pivot bearing F22384

1шт.

F1227

BEARING - pivot, clutch shaft (Replaced by F22384 and F22385 when stocks are exhausted)

1шт.

FITTING - grease, 1/4" - 28 thrd, str. (219-8)

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

2шт.

10

F81671

SHAFT - clutch pivot, with hub

1шт.

PIN - cotter, 1/8" x 1-1/2" (132-52)

1шт.

11

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for clutch and brake rods to ref. 10 shaft

3шт.

12

F1442

BELLCRANK - clutch

1шт.

FITTING - grease, 1/4"-28 thrd. str. (219-8)

1шт.

13

F81910

ROD - bellcrank to clutch, L.H.

1шт.

NUT - 5/16" N.C. hex (25-105)

1шт.

14

F17954

TURNBUCKLE - ref. 13 and ref. 16 rods

1шт.

15

B18080

WASHER

- for ref. 21 bellcrank

1шт.

16

F82084

ROD - bellcrank to clutch, R.H.

1шт.

17

O5341CS

PIN - clevis, 213-3 clevis for ref. 18 and ref. 23 links to ref. 21 bellcrank

2шт.

PIN - cotter, 1/8" x 5/8" (132-45)

2шт.

18

F81930

LINK - rod, ref. 21, Serial Range: bellcrank-clutch

1шт.

NUT - 5/16" N.F. hex (25-115)

1шт.

19

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - 1/2" clevis, ref. 18 link to clutch arm

1шт.

PIN - cotter, 1/8" x 1" (132-48)

1шт.

20

F81951

STUD - bellcrank, R.H. brake

1шт.

NUT - 5/8" N.F. slotted (25-1310)

1шт.

PIN - cotter, 3/16" x 1" (132-91)

2шт.

21

F1485

BELLCRANK - R.H. brake

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

22

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - ref. 18 and ref. 23 links to ref. 21 bellcrank

2шт.

23

F81928

LINK - cross, turning brake

1шт.

NUT - 5/16" N.F. hex (25-115)

1шт.

24

F89246

BELLCRANK - L.H. brake

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

25

F81952

STUD - bellcrank, L.H. brake

1шт.

NUT - 5/8" N.F. hex slotted (25-1310)

1шт.

PIN - cotter, 3/16" x 1" (132-91)

2шт.

26

F81930

LINK - rod, ref. 28, Serial Range: bellcrank-clutch

1шт.

NUT - 5/16" N.F. hex (25-115)

1шт.

27

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - 1/2" clevis, ref. 26 link to clutch arm

1шт.

PIN - cotter, 1/8" x 1" (132-48)

1шт.

28

F82087

BELLCRANK - L.H. turn brake

1шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

1шт.

BOLT - 5/16" x 6" N.C. rhd. sq. nk. (11-596) nut (25-105)

4шт.

29

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - ref. 26 link to ref. 28 bellcrank

1шт.

30

B18080

WASHER

- ref. 24 bellcrank

1шт.

31

F81936

ROD - L.H. brake, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex (25-115)

1шт.

32

F81913

ROD - R.H.brake, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex (25-115)

1шт.

33

O1235HT

PIN - clevis, for welded end of ref. 13, 31, 32 and 34 rods

4шт.

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

4шт.

34

F81908

ROD - clutch, Serial Range: pedal-bellcrank

1шт.

NUT - 5/16" N.F. hex (25-115)

1шт.

35

O5341CS

PIN - clevis (1 ea. for clevis 213-3 of ref. 31, 32 and 34 rods)

3шт.

PIN - cotter, 1/8" x 5/8" (132-45)

3шт.

36

F81934

HUB - L.H. brake pivot

1шт.

FITTING - grease, 1/4" - 28 thrd. str. (219-20)

1шт.

37

F77497

HUB - clutch pivot (Keys to ref. 10 shaft)

1шт.

38

O906B

WASHER

- clutch pedal shaft

1шт.

39

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 37 hub to ref. 10 shaft #A, 1/4" x 7/8", HT

1шт.

40

F22477

STOP - pedal (Replaces F22135 when exhausted)

3шт.

40

F22135

STOP - pedal (Replaced by F22477 when exhausted)

3шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116) L.W. (92-6)

6шт.

41

F22480

SPRING - clutch pedal (#8314921 and after)

1шт.

42

F91946

SUPPORT - spring (#8314921 and after)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106) L.W. (92-6)

4шт.

43

F91949

LEVER - spring (#8314921 and after)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut (25-116) L.W. (92-6)

2шт.
