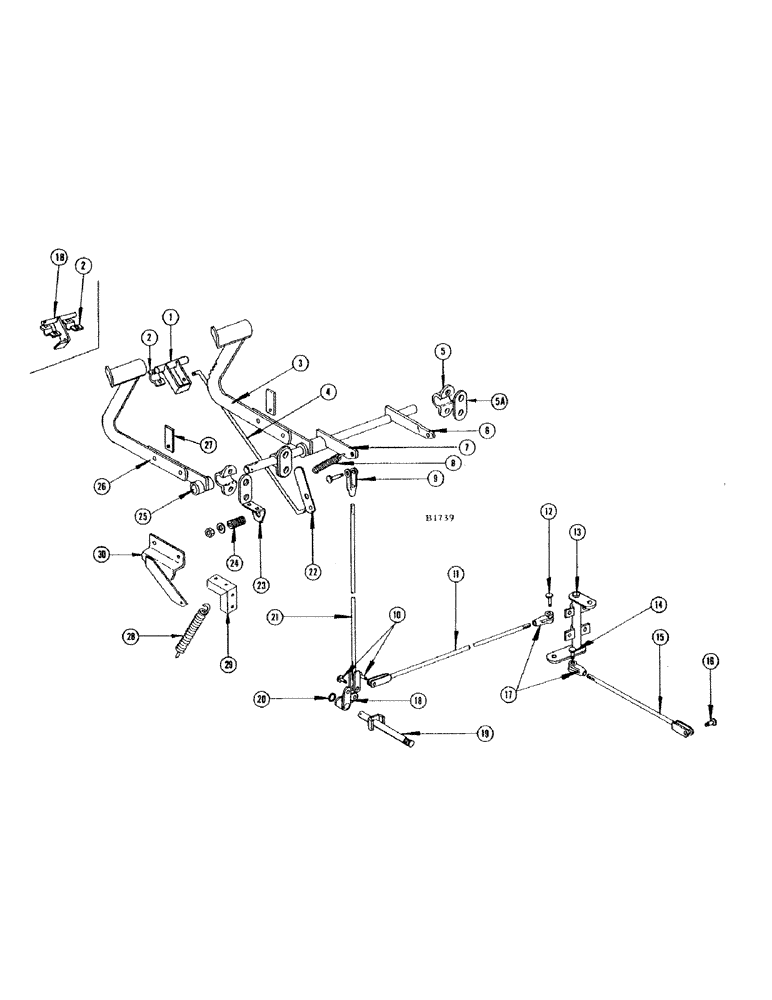

Запчасти Case IH 660 (276) - PARKING BRAKE PEDAL AND LINKAGE

1

F84907

LOCK - parking brake (Manual or hydrostatic steering) (#8309001 and after)

1шт.

1b

F81750

LOCK - parking brake (Hydrostatic steering) (Before #8309001)

1шт.

F84361

LOCK - parking brake (Manual steering) (Before #8309001)

1шт.

2

F17464

CLIP - anchor

2шт.

BOLT - 1/4" x 1/2" N.C. rhd. sq. nk. (11-48) nut (25-104)

4шт.

3

F81749

PEDAL - parking brake

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

2шт.

4

F17467

ROD - parking brake lock

1шт.

5

F22384

BEARING - pivot, brake and clutch shaft (Replaces F1227 when stocks are exhausted)

3шт.

5a

F22385

SPACER - pivot bearing F22384

3шт.

F1227

BEARING - pivot, brake and clutch shaft (Replaced by F22384 and F22385 when stocks are exhausted)

3шт.

FITTING - grease, 1/4" - 28 thrd. (219-8)

3шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-115) L.W. (92-6)

6шт.

6

F81671

SHAFT - clutch pivot, with hub

1шт.

7

F81672

SHAFT - brake pivot

1шт.

FITTING - grease, 3/8" drive type (219-20)

1шт.

8

F17468

SPRING

- brake and clutch rods (Before #8314921)

2шт.

8

F17468

SPRING

- brake rod (#8314921 and after)

1шт.

9

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for ref. 21 rod

1шт.

10

O1235HT

PIN - clevis, for welded end of ref. 11 and ref. 21 rods

2шт.

11

F81912

LINK - cross

1шт.

12

O5341CS

PIN - for ref. 17 clevis of ref. 11 rod

1шт.

13

F81947

BELLCRANK

1шт.

FITTING - grease, 3/8" drive type (219-8)

1шт.

BOLT - 5/16" x 5" rhd. sq. nk. (11-580) nut (25-105)

4шт.

14

O5341CS

PIN - for ref. 17 clevis of ref. 15 rod

1шт.

15

F81911

LINK - parking brake

1шт.

16

O1235HT

PIN - clevis, for welded end of ref. 15 rod

1шт.

17

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for ref. 11 and ref. 15 links

2шт.

18

F89276

KIT

BELLCRANK - brake pedal rod

1шт.

FITTING - grease, 1/4"-28 thrd. (219-8)

1шт.

19

F81952

STUD - bellcrank

1шт.

20

B18080

WASHER

- brake bellcrank

1шт.

21

F81913

ROD - brake, Serial Range: pedal-bellcrank

1шт.

22

F17466

HANDLE - lock

1шт.

BOLT - 3/8" x 1-1/2" N.C. hex (13-624) locknut (131-6)

1шт.

23

F17465

BRACKET - parking brake lock

1шт.

BOLT - 1/4" x 1/2" N.C. rhd. sq. nk. (11-48) nut (25-104)

2шт.

24

A30370

SPRING - for ref. 22 handle

1шт.

25

F77497

HUB - clutch pivot (Keys to ref. 6 shaft)

1шт.

KEY - "A" Woodruff (126-121)

1шт.

26

F81673

PEDAL - clutch

1шт.

BOLT - 3/8" x 1" N.F. hex (14-616) nut (25-116) L.W. (92-6)

2шт.

27

F22477

STOP - pedal (Replaces F22135 when exhausted)

2шт.

F22135

STOP - (Replaced by F22477 when exhausted)

2шт.

BOLT - 3/8" x 1-1/4" N.F. hex (14-620) nut (25-116) L.W. (92-6)

2шт.

28

F22480

SPRING - clutch pedal (#8314921 and after)

1шт.

29

F91946

SUPPORT - spring (#8314921 and after)

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk.(11-612) nut (25-106) L.W. (92-6)

4шт.

30

F91949

LEVER - spring (#8314921 and after)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut (25-116) L.W. (92-6)

2шт.
