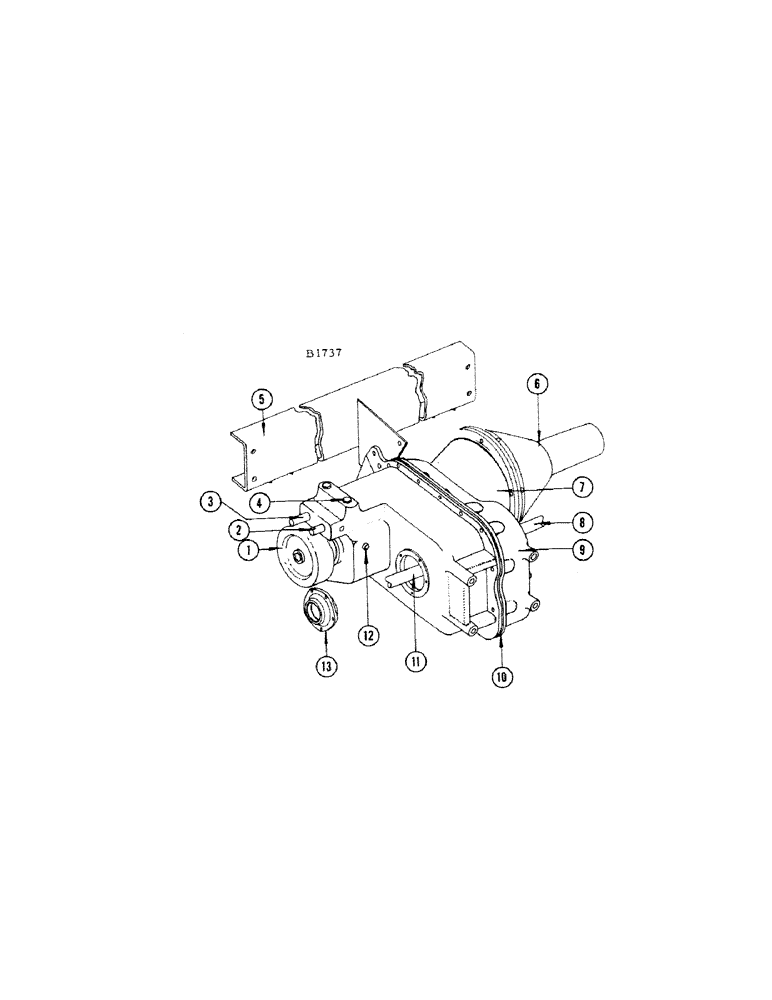

Запчасти Case IH 660 (274) - TRANSMISSION CASE

1

F1665

DRUM - brake (Parking brake only)

1шт.

2

F20456

SHAFT - rail, 2nd and 3rd

1шт.

3

F20460

SHAFT - shifter rail, 1st and reverse

1шт.

4

F18122

SCREW - plunger, gear shaft lock ball

2шт.

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

5

F84262

CHANNEL - transmission support

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex

4шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex

4шт.

92-6

LOCK WASHER,3/8"

4шт.

6

F1497

COVER - clutch housing

1шт.

114-212

X

BOLT - 3/8" x 1-1/2" N.F. hex

8шт.

92-6

LOCK WASHER,3/8"

8шт.

7

F1669

HOUSING - clutch

1шт.

113-416

BOLT - 1/2" x 1-3/8" N.C. hex (Grade 7 or 8)

9шт.

92-8

LOCK WASHER,1/2"

9шт.

8

F19261

LEVER

SHAFT - axle, L.H. drive (Turning brake)

1шт.

F21218

SHAFT - axle, L.H. drive (Parking brake)

1шт.

9

F82856

CASE TRANSMISSION - (Includes both halves) (Turning brake)

1шт.

F82218

CASE TRANSMISSION - (Includes both halves) (Parking brake)

1шт.

10

F18193

GASKET - cover

1шт.

11

F19620

SHAFT - axle, R.H. drive (Turning brake)

1шт.

F21217

SHAFT - axle, R.H. drive (Parking brake)

1шт.

12

F18144

PLUG - shift rail guide

1шт.

13

F1560

CAGE - bearing differential shaft, R.H.

1шт.

113-220

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - 3/8" x 1-1/8" N.C. hex

5шт.

92-6

LOCK WASHER,3/8"

5шт.
