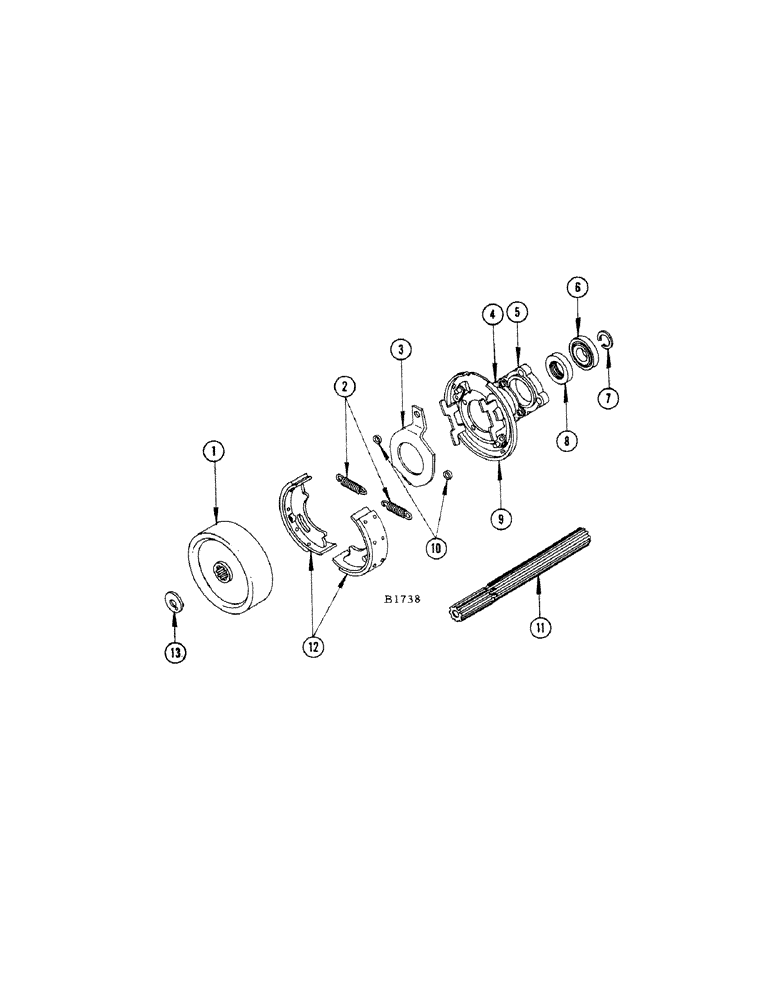

Запчасти Case IH 660 (274[A]) - PARKING BRAKE

1

F1665

DRUM - brake

1шт.

2

F18272

SPRING

- brake shoe

2шт.

3

F18273

LEVER - actuating

1шт.

4

F18279

GASKET - mounting cap

1шт.

5

F1499

CAP - brake mounting

1шт.

F18426

BOLT - for mounting cap (Not shown)

4шт.

92-6

LOCK WASHER,3/8"

4шт.

6

F21220

BEARING - sliding gear shaft

1шт.

7

F19477

SNAP RING - bearing

1шт.

8

A26760

OIL SEAL

OIL SEAL - sliding gear shaft

1шт.

9

F82269

PLATE - backing

1шт.

10

F18329

ROLLER

2шт.

11

F20461

SHAFT - sliding gear

1шт.

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- sliding gear shaft (Not shown)

1шт.

12

F82270

SHOE

- brake, with lining

2шт.

13

F82230

WASHER - brake drum

1шт.

113-405

X

BOLT - 1/2" x 1-1/4" N.C. hex

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

1шт.

F12878

GASKET - brake drum washer (Not shown)

1шт.
