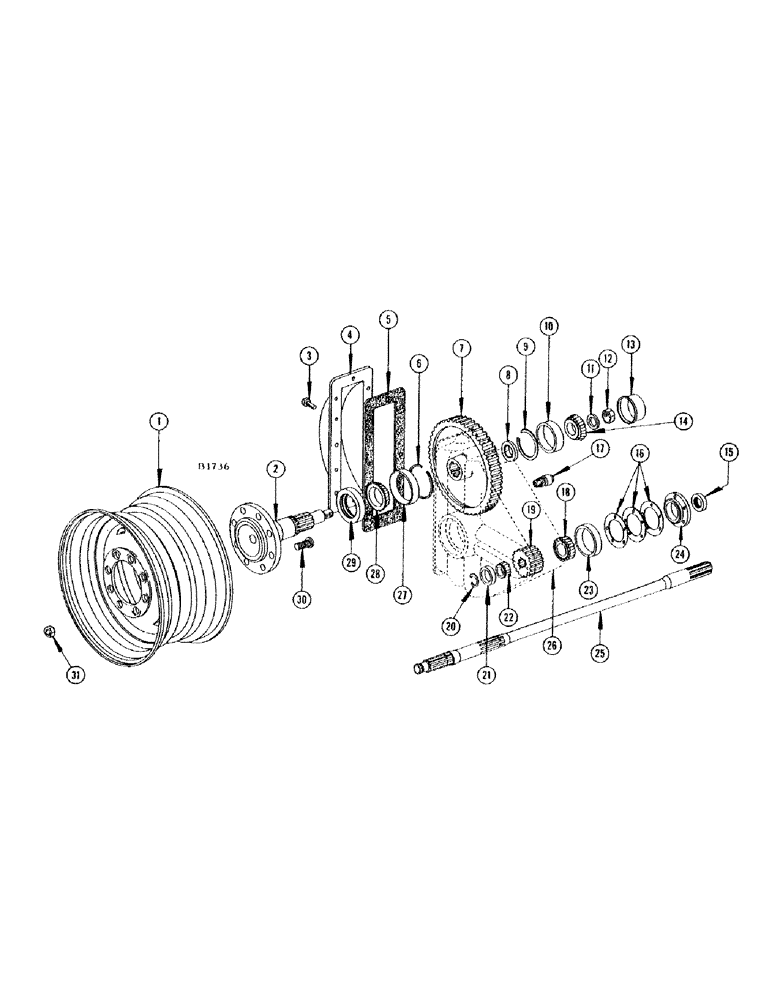

Запчасти Case IH 660 (272) - FINAL DROP BOX HOUSING, BEFORE NUMBER 8357001

1

F17725

WHEEL - rim and disc (For 13.6/12 x 26, 14.9/13 x 26 or 16.9/14 x 26 tires)

2шт.

2

F19516

SHAFT AND HUB - axle, drive wheel

2шт.

3

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8" x 3/4" N.C. hex housing fan

24шт.

92-6

LOCK WASHER,3/8"

24шт.

4

F19474

PAN - drop box housing

2шт.

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" pipe

2шт.

5

F18266

GASKET - pan

2шт.

6

F18198

SNAP RING - outer, final drive shaft bearing

2шт.

7

F19515

GEAR - (82T) final drive

2шт.

8

F22521

SPACER - final drive gear

2шт.

9

F18199

SNAP RING - inner, final drive shaft bearing

2шт.

10

O4300BF

ANGLE BAR

CUP - inner bearing, axle shaft

2шт.

11

F18182

WASHER - final drive shaft nut

2шт.

12

L30731

SLOTTED NUT

- final drive shaft

2шт.

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

13

F18271

CAP - inner bearing

2шт.

14

O1456AB

CONE

- inner bearing, axle shaft

2шт.

15

F22582

OIL SEAL

- inner, axle shaft (Replaces F18181 when exhausted)

2шт.

F18181

OIL SEAL

- inner, axle shaft (Replaced by F22582 when exhausted)

2шт.

16

F18263

SHIM - axle shaft bearing (.003)

2шт.

F18264

SHIM - axle shaft bearing (.005)

2шт.

F18265

SHIM - axle shaft bearing (.010)

6шт.

17

T25082

BREATHER - final drive housing

2шт.

18

O818CS

CONE

- inner bearing, axle shaft

1шт.

19

F19514

PIN - final drive (15T)

2шт.

20

F18197

SNAP RING

- outer, axle shaft bearing

2шт.

21

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - outer bearing, axle shaft

2шт.

22

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - outer bearing, axle shaft

2шт.

23

F62007

CUP

- inner bearing, axle shaft

1шт.

F23265

O-RING

1шт.

24

F1568

ADAPTER - drop box (Parking brakes only)

2шт.

113-301

BOLT (SPREADER)

BOLT - 7/16" x 2-1/4" N.C. hex

10шт.

92-7

LOCK WASHER,7/16"

10шт.

25

F19620

SHAFT - axle, R.H. drive (Turning brake)

1шт.

F19621

SHAFT - axle, L.H. drive (Turning brake)

1шт.

F21217

SHAFT - axle, R.H. drive (Parking brake)

1шт.

F21218

SHAFT - axle, L.H. drive (Parking brake)

1шт.

26

F1607

HOUSING - final drive, R.H.

1шт.

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" pipe

1шт.

F1608

HOUSING - final drive, L.H.

1шт.

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - 3/4" pipe

1шт.

27

A26744

BEARING CUP,110.025 mm OD x 18.875 mm

CUP - outer bearing, axle shaft

2шт.

28

G15207

ROLLER BEARING

CONE - outer bearing, axle shaft

2шт.

29

F22670

SEAL

OIL SEAL - outer, final drive shaft

2шт.

30

F18184

BOLT - wheel (8 for each wheel)

16шт.

31

F62206

NUT

- wheel bolt

16шт.
