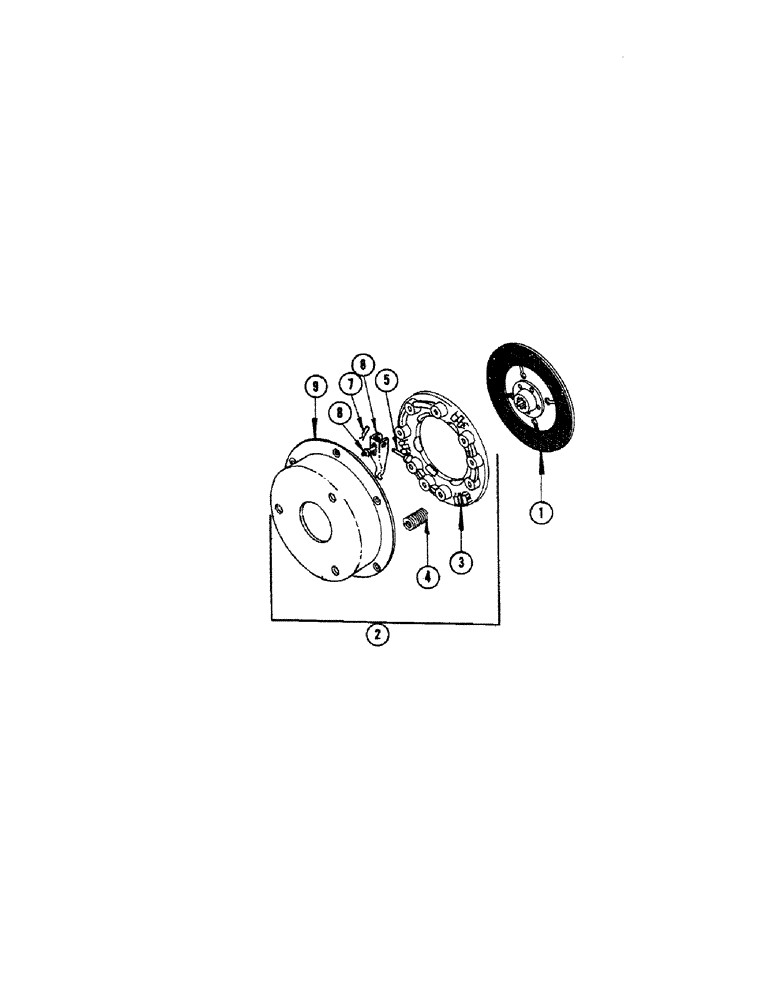

Запчасти Case IH 660 (267A) - CLUTCH, NUMBER 8314921 AND AFTER

1

A30291

DRIVE PLATE

PLATE - driving, with facings

1шт.

1

AR44512

REMAN-CLUTCH DISC

Remanufactured, Clutch Disc - 9 in., 10Tooth hub, full face friction matl. N.A. Only

1шт.

1

AC44512

CORE-CLUTCH DISC

Return Number, N.A. Only

1шт.

2

F94024

PLATE

CLUTCH - less driving plate

1шт.

3

F22564

SPARE PART PLATE - pressure

1шт.

4

F22573

SPARE PART SPRING - pressure

12шт.

5

F22572

SPARE PART PIN - for lever

3шт.

6

F78521

LEVER ASSY.

LEVER - clutch pressure

3шт.

7

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

3шт.

8

25-156

JAM NUT,Jam, 3/8"-24, G5

NUT - 3/8" N.F. hex jam

3шт.

9

F22574

PLATE - back

1шт.
