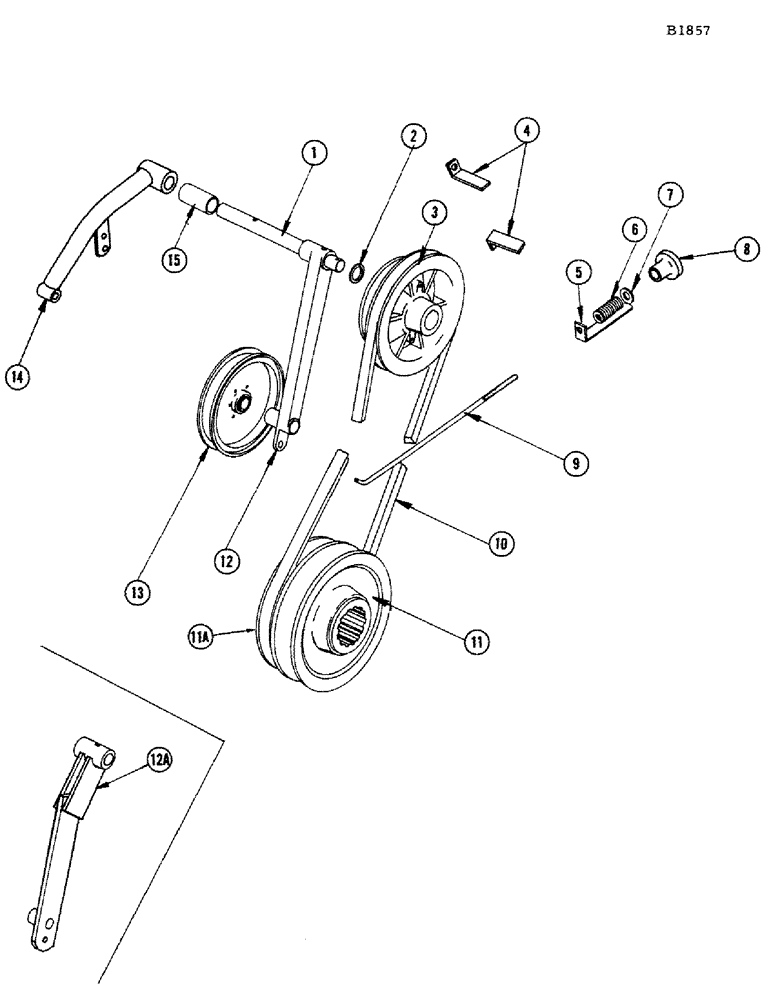

Запчасти Case IH 660 (264) - VARIABLE SPEED, TRACTION DRIVE AND TIGHTENER

1

F17516

STUD - pivot, tightener bracket

1шт.

PIN - cotter, 3/16" x 2-1/4" (132-101)

1шт.

2

O906B

WASHER

- tightener arms

1шт.

3

F1711

SHEAVE - engine output (#8309001 and after)

1шт.

PIN - cotter, 3/16" x 2" (132-99)

1шт.

KEY - "C" Woodruff (126-129)

1шт.

F1463

SHEAVE

- engine output (Before #8309001)

1шт.

PIN - cotter, 3/16" x 2" (132-99)

1шт.

KEY - "C" Woodruff (126-129)

1шт.

4

F20464

GUARD - belt, main combine drive

2шт.

BOLT - 5/16" x 5/8" N.C. hex (13-510) L.W. (92-5)

2шт.

5

F17946

GAUGE - spring, traction drive

1шт.

6

232EB

SPRING - traction drive idler adjustment (Gas engine)

1шт.

N3517

SPRING - traction drive idler adjustment (Diesel engine)

1шт.

7

O58BL

WASHER - adjustment rod (Gas or diesel engine)

1шт.

O22BL

WASHER - adjustment rod (Diesel engine)

1шт.

8

F19583

BUSHING - for tension rod (Gas engine)

1шт.

9

F17459

ROD

- tension (Gas engine) (Before #8357001)

1шт.

9

F22708

PLOW BOLT

ROD - tension (Gas Engine) (#8357001 and after)

1шт.

NUT - 5/16" N.C. (25-105) fl. wshr. (195-21)

2шт.

F19266

ROD - tension (Diesel engine) (Before #8357001)

1шт.

F22709

PLOW BOLT

ROD - tension (diesel engine) (#8357001 and after)

1шт.

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex

2шт.

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16" flat

1шт.

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

10

F20033

BELT

Primary Variable Speed Traction Drive

1шт.

F20854

BELT

"V" BELT - primary traction drive (Special - slow ground speed att.)

1шт.

11

F94336

SHEAVE

- movable half (Balanced)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

11a

F1452

SHEAVE - stationary half

1шт.

11a

F1681

SHEAVE - stationary half (Slow ground speed attach.)

1шт.

12

F1583

ARM

- tightener (Without A.C.) (Before #8357001)

1шт.

12

F94202

ARM - tightener (#8357001 and after)

1шт.

F11666

BEARING - for F94202

1шт.

O3277BF

SPACER

1шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

12a

F87964

ARM - tightener (With air cond.) (Before #8357001)

1шт.

FITTING - grease, 1/4"-28 thrd. (219-8)

1шт.

13

F80073

PULLEY ASSY.

SHEAVE - (8") idler

1шт.

BOLT - 5/8" x 3-1/2" N.F. hex (14-1056) nut (25-1110)

1шт.

14

F1477

ARM - tightener, idler sheave

1шт.

FITTING - grease, 7/16" drive type (219-18)

1шт.

PIN - cotter, 3/16" x 3/4" (132-89)

2шт.

15

F17518

SPACER - belt tightener arm

1шт.
