Запчасти Case IH 660 (028) - PICKUP DRIVE JACKSHAFT, FOUR AND FIVE BELT

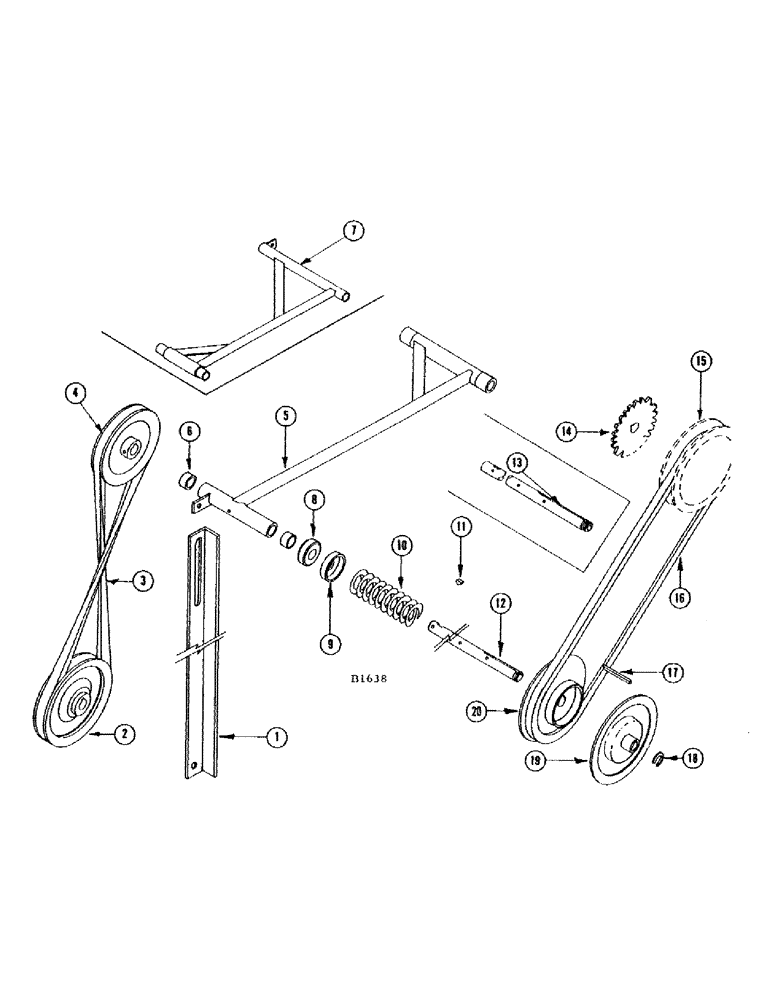

Схема запчастей Case IH 660 - (028) - PICKUP DRIVE JACKSHAFT, FOUR AND FIVE BELT
14
4
7
1
10
19
5
15
18
12
8
3
13
11
9
6
17
20
2
16

№

Артикул

Название

Примечание

Количество

1

F17678

BRACKET - tightener, jackshaft drive

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123

1шт.

LOCKWASHER - (192-21) fl. wshr. (195-104)

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

1шт.

2

F81889

SHEAVE - rear roller drive, driven (L.H. end)

1шт.

KEY - "A" - Woodruff (126-121)

1шт.

PIN - Drive-Loc Type "A" 1/4" x 1-3/4" (135-360)

1шт.

3

F16744

V-BELT

"V" BELT - rear roller drive

1шт.

4

F77186

SHEAVE - rear roller drive

1шт.

PIN - cotter 1/4" 2-1/2" (132-157)

1шт.

5

F84886

GRATE

SUPPORT - pickup jackshaft (10 ft. header - 4 belt)

1шт.

FITTING - grease 1/8" str. (129-8)

2шт.

6

A31082

BUSHING

4шт.

F81894

SUPPORT - pickup jackshaft (13 ft. header - 4 belt) Includes ref. 6

1шт.

FITTING - grease 1/4" straight (219-8)

2шт.

F83199

SUPPORT - pickup jackshaft (14 ft. header - 4 belt) Includes ref. 6

1шт.

FITTING - grease 1/4" straight (219-8)

2шт.

7

F84957

SUPPORT - pickup jackshaft (13 ft. header - 5 belt) Includes ref. 6

1шт.

FITTING - grease 1/4" straight (219-8)

2шт.

8

O1664FH

COLLAR - jackshaft

1шт.

PIN - cotter 3/16" x 2-1/2" (132-102)

1шт.

9

F16078

WASHER - cup, for ref. 10 spring

1шт.

10

F9021

VALVE SPRING

SPRING - variable drive sheaves

1шт.

11

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

Ref. 4 to jackshaft #A, 1/4" x 7/8", HT

1шт.

12

F17675

JACKSHAFT - 10 ft. header - 4 belt

1шт.

FITTING - grease 1/8" straight (129-1)

1шт.

F17686

JACKSHAFT - 13 ft. header - 4 belt

1шт.

FITTING - grease 1/8" straight (219-1)

1шт.

F20066

JACKSHAFT - 14 ft. header - 4 belt

1шт.

FITTING - grease 1/8" straight (219-1)

1шт.

13

F22277

JACKSHAFT - 13 ft. and 14 ft. header - 5 belt

1шт.

FITTING - grease (219-8)

2шт.

14

F81888

SPROCKET - (22T) on reel drive jackshaft, drives conveyor

1шт.

PIN - cotter 7/32" x 2" (132-126)

1шт.

15

F1313

SHEAVE

HALF - reel drive

1шт.

F1572

SHEAVE HALF - reel drive

1шт.

16

F16745

V-BELT

"V" BELT - jackshaft drive

1шт.

17

F8896

KEY - variable speed, Serial Range: sheaves-jackshaft

1шт.

18

A26949

RING, SNAP

SNAP RING - jackshaft

1шт.

19

F1313

SHEAVE

- half, variable speed (Drives jackshaft) driven

1шт.

20

F1572

SHEAVE - half, variable speed (Drives jackshaft) driven

1шт.

Выбрано товаров: 41
