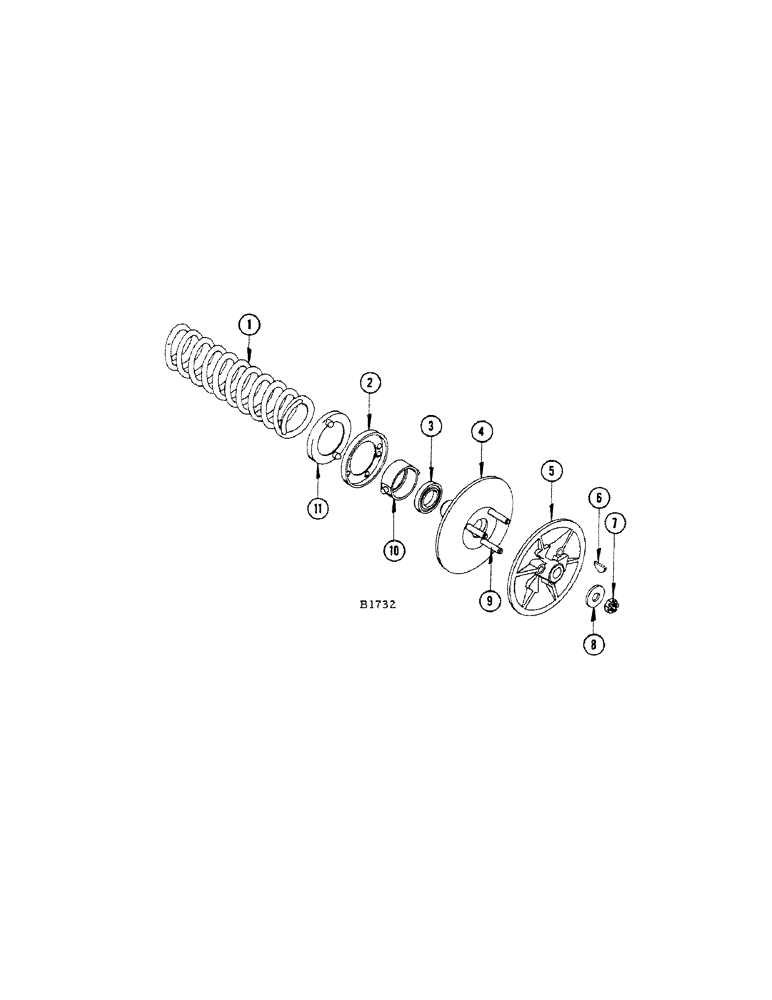

Запчасти Case IH 660 (262) - VARIABLE SPEED TRACTION, DRIVEN SHEAVES

1

F16893

SPRING - variable speed traction drive

1шт.

2

F16896

PLATE

- dimpled, spring retaining

1шт.

3

F20543

THRUST BEARING

BEARING - traction drive shaft

1шт.

4

F94335

SHEAVE

- half movable (Inside)

1шт.

FITTING - grease 1/8" str. (219-1)

1шт.

5

F1448

SHEAVE

HALF - stationary

1шт.

6

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

Ref. 5 sheave #28, 5/16" x 2 1/8"

1шт.

7

F9830

NUT

- for traction drive shaft

1шт.

PIN - cotter, 1/8" x 2" (132-56)

1шт.

8

F10886

WASHER - drive shaft

1шт.

9

F19511

PIN

- spacer for traction drive sheaves

3шт.

BOLT - 3/8" x 1" N.F. hex (14-616)

3шт.

LOCKWASHER - Shakeproof (193-78)

3шт.

10

F1661

HOUSING - bearing carrier

1шт.

11

F81298

PLATE - spring retaining

1шт.
