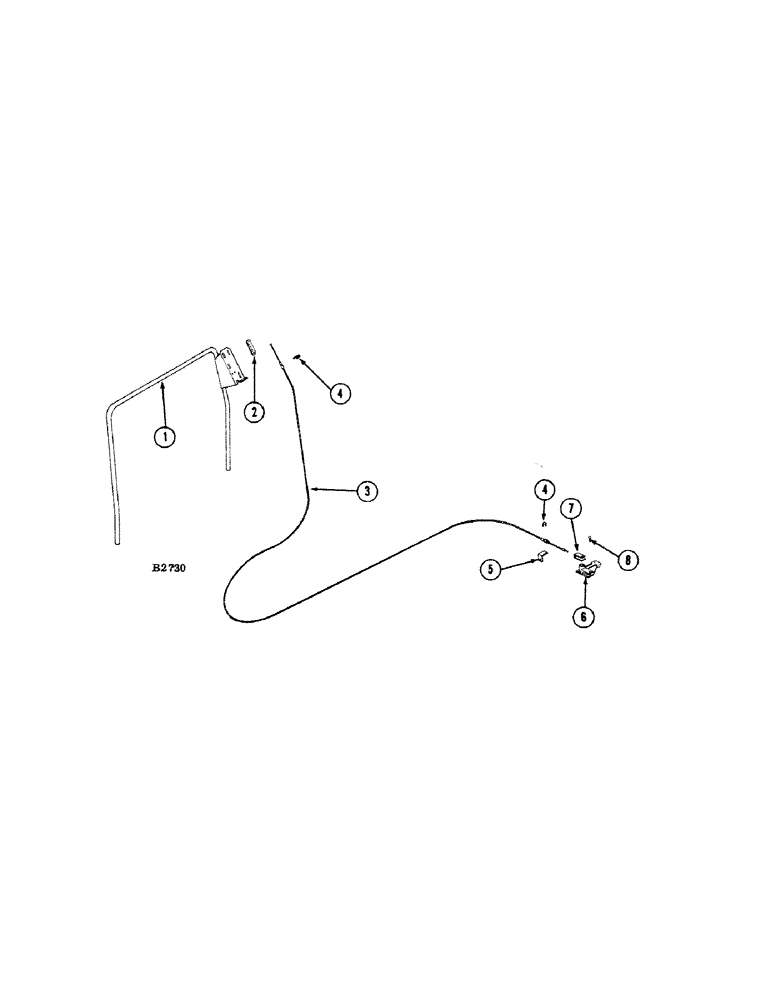

Запчасти Case IH 660 (262[A]) - VARIABLE SPEED TRACTION DRIVE INDICATOR, NUMBER 8334601 AND AFTER

1

F94016

HANDRAIL - front

1шт.

14-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 5

- 3/8" x 1-3/4" N.F. hex

2шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex and lockwasher (92-6)

2шт.

2

F22560

GAUGE - speed indicator

1шт.

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" rhd. N.C. mach. and nut (129-101)

2шт.

195-518

WASHER,1/4", SAE

- 1/4" flat and lockwasher (192-19)

2шт.

3

F22556

CABLE - ground speed indicator

1шт.

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex

2шт.

4

F22558

HOOK BOLT - cable

2шт.

129-7

NUT,Hex, #10 - 24

- #10 N.C. hex and lockwasher (92-8)

2шт.

5

F22557

BRACKET - anchor, cable

1шт.

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

- 5/16" x 1" N.F. hex and nut (25-116)

1шт.

195-21

WASHER,5/16"

- flat and lockwasher (92-5) 5/16"

1шт.

6

F1720

CRANK

BELLCRANK - traction drive rod adjustment

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

14-648

CAPSCREW,Hex, 3/8" - 24 x 3", Gr 5

BOLT - 3/8" x 3" N.F. hex

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex and lockwasher (92-6)

1шт.

7

F22555

CLEVIS - bellcrank

1шт.

8

174-103

SCREW - #10 x 1/8" mach.

1шт.

129-27

NUT,Hex, #10 - 32

- #10 mach. screw

2шт.
