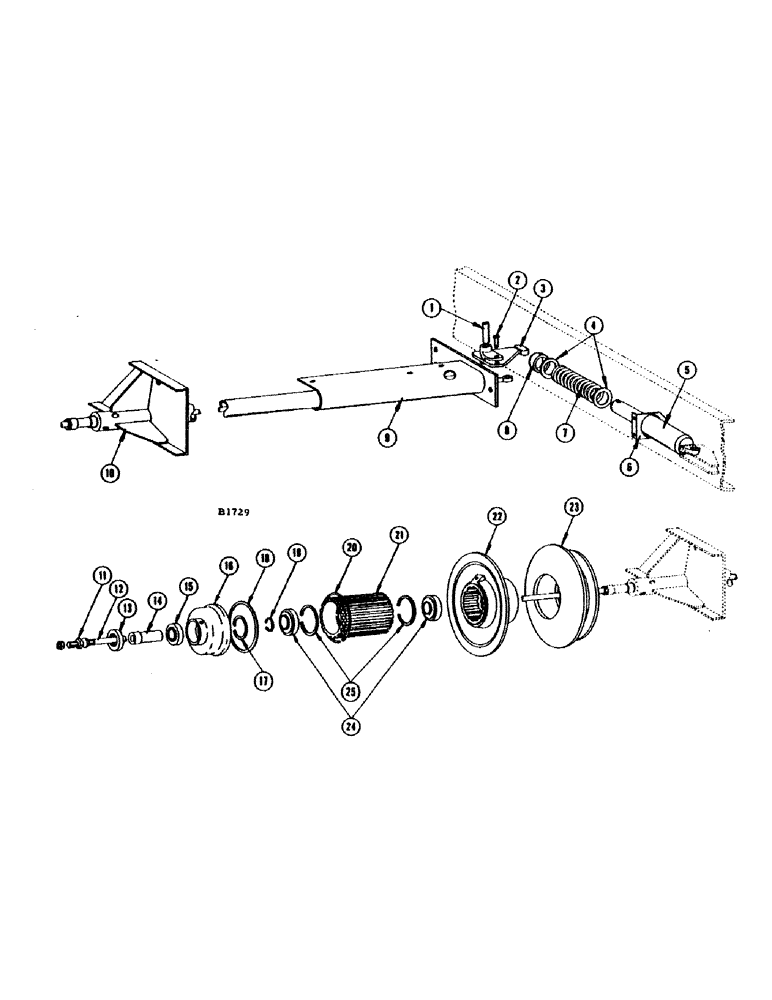

Запчасти Case IH 660 (260) - VARIABLE SPEED, TRACTION DRIVE ADJUSTMENT

1

F17580

SPACER,5/8" Tube x 2 1/8"

- bellcrank

1шт.

2

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - variable speed adjusting rod

1шт.

PIN - cotter, 3/32" x 7/8" (132-27)

2шт.

3

F1720

CRANK

BELLCRANK - traction drive rod adjustment (Replaces F1644 when stocks are exhausted)

1шт.

F1644

CRANK

BELLCRANK - traction drive rod adjustment (Replaced by F1720 when stocks are exhausted)

1шт.

BOLT - 3/8" x 3" N.F. hex (14-648) nut (25-116) L.W. (92-6)

1шт.

FITTING - grease 1/4" str. (219-8)

1шт.

4

B18268

WASHER - cylinder

2шт.

5

F76962

CYLINDER - variable speed control

1шт.

BOLT - 1/4" x 1-3/4" N.F. hex (14-828) nut (25-118)

1шт.

ADAPTER - (218-483)

1шт.

6

F17579

BRACKET - support, for cylinder

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-5)

2шт.

7

V14852

WASHER

SPRING - cylinder

1шт.

8

F17925

COLLAR - spring retaining

1шт.

PIN - groove 1/2" x 2" (135-123)

1шт.

9

F81326

SUPPORT - housing, R.H. end

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116) L.W. (92-6)

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115) L.W. (92-6)

1шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115) L.W. (92-5)

2шт.

10

F81325

HOUSING - jackshaft (Includes jackshaft)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116) L.W. (92-6)

3шт.

BOLT - 1/4" x 3/4" N.F. hex (14-412) nut (25-114) L.W. (92-4)

1шт.

BOLT - 5/16" x 3" N.F. hex (14-548) nut (25-115) L.W. (92-4)

2шт.

11

F9474

NUT - adjusting, tension rod, variable speed traction drive sheaves

1шт.

12

F16955

ROD - tension, variable speed traction drive sheaves

1шт.

NUT - 7/16" N.F. hex (25-117), variable speed traction drive sheaves

1шт.

13

F10921

OIL SEAL

SEAL - for F8890 bearing, variable speed traction drive sheaves

1шт.

14

F7862

PLUG - bearing, variable speed traction drive sheaves

1шт.

15

F8890

BEARING, BALL

BEARING - adjusting rod, variable speed traction drive sheaves

1шт.

16

F79236

CARRIER - bearing, variable speed traction drive sheaves

1шт.

FITTING - grease, 1/4"-28 thrd. (218-8), variable speed traction drive sheaves

1шт.

17

A30091

RING, SNAP

SNAP RING, variable speed traction drive sheaves

1шт.

18

F12233

GASKET

- bearing carrier, variable speed traction drive sheaves

1шт.

19

A21619

CIRCLIP

SNAP RING - retaining F8890 bearing, variable speed traction drive sheaves

1шт.

20

F10063

STOP - variable speed, traction drive sheaves

1шт.

21

F1293

HUB

- variable speed sheave, traction drive

1шт.

22

F94336

SHEAVE

- movable half (Balanced), variable speed traction drive

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Variable speed traction drive sheaves 1/4"-28 NPT x .54" lg

1шт.

FITTING - grease, 1/4"-28 thrd. (219-8), variable speed traction drive sheaves

1шт.

23

F1452

SHEAVE HALF - stationary, variable speed traction drive

1шт.

BOLT - 3/8" x 1" N.C. hex (13-616) L.W. (92-6), variable speed traction drive sheaves

6шт.

F1681

SHEAVE HALF - stationary (Special - slow ground speed att.), variable speed traction drive sheaves

1шт.

BOLT - 3/8" x 1" N.C. hex (13-616) L.W. (92-6), variable speed traction drive sheaves

6шт.

24

F10753

BEARING

- variable speed sheaves, traction drive

2шт.

25

B18276

RING, SNAP

SNAP RING - retaining F10753 bearing, variable speed traction drive sheaves

2шт.

F20032

V-BELT

Secondary Variable Speed Traction Drive, Secondary, Not Shown, Variable Speed Sheaves

1шт.
