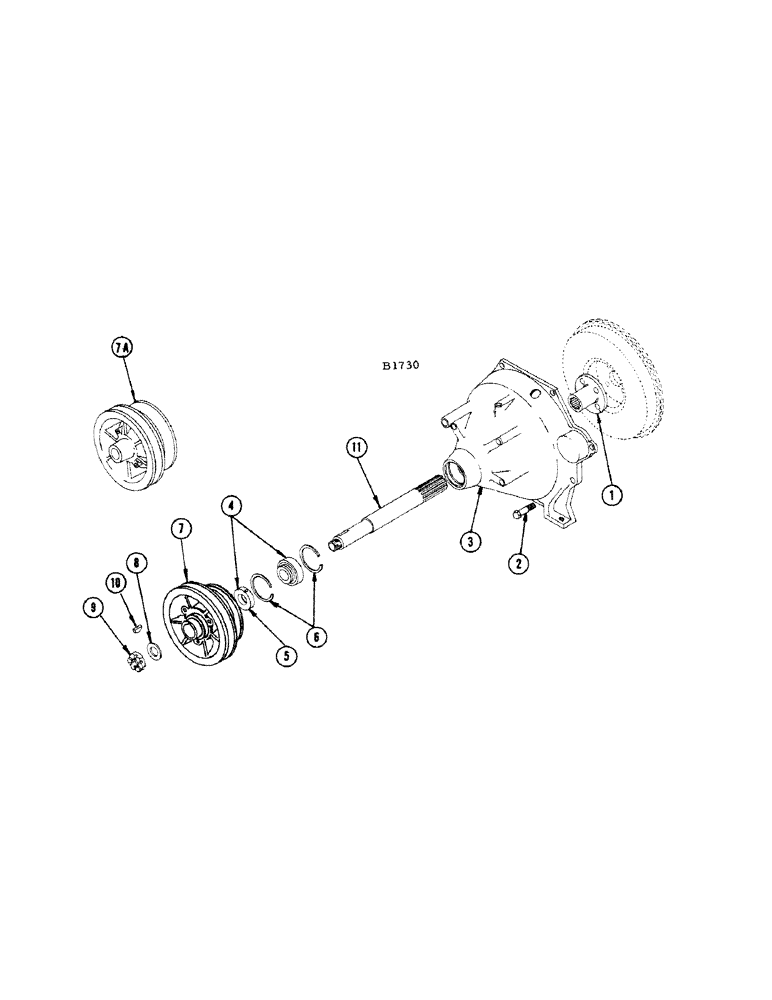

Запчасти Case IH 660 (258) - ENGINE OUTPUT SHAFT AND HOUSING

1

F3408

HUB - flywheel

1шт.

2

A30135

BOLT

BOLT - flywheel housing

2шт.

NUT - 5/8" N.F. hex (25-1110) Shakeproof L.W. (193-84)

2шт.

3

F82028

HOUSING - flywheel

1шт.

4

F82059

BEARING ASSY,38.1mm ID x 80mm OD x 22mm W

BEARING

1шт.

5

F62107

COLLAR

1шт.

6

A27579

RING

SNAP RING - bearing retainer

2шт.

205-58

PLUG - for trimming hole on housing

1шт.

ROLL PIN - 1/8" x 1-1/2" (138-65) for ref. 3

1шт.

NUT - 5/8" N.F. hex (25-1110) L.W. (92-10) for studs of ref. 3

2шт.

7

F1711

SHEAVE - multiple drive, engine output (#8309001 and after)

1шт.

PIN - cotter, 3/16" x 2" (132-99)

1шт.

7a

F1463

SHEAVE

- multiple drive, engine output (Before #8309001) (Replaced by F1711 when exhausted)

1шт.

8

F62110

WASHER - output shaft

2шт.

9

F62106

NUT

- slotted, for F17901 shaft

1шт.

10

126-29

WOODRUFF KEY,#C, 5/16" x 1 1/8"

Ref. 7 sheave to output shaft #C, 5/16" x 1 1/8"

1шт.

11

F17901

SHAFT - engine output

1шт.
