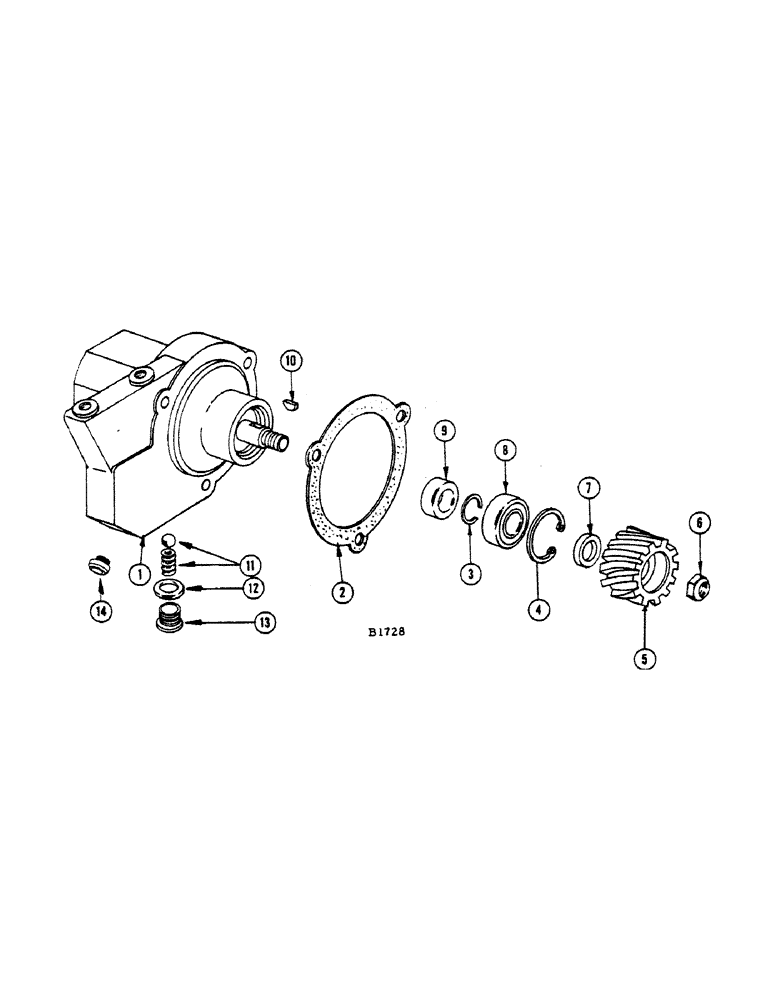

Запчасти Case IH 660 (256) - F81977 HYDRAULIC PUMP

1

F81977

PUMP - hydraulic (Hydrostatic steering)

1шт.

2

A30042

GASKET

- pump to engine block

1шт.

3

F21293

SNAP RING,#59, Ext

Ring, Snap, , bearing, inner #59, Ext

1шт.

4

A32181

SNAP RING,1.375", Int, #137

Ring, Snap, , brg, outer 1.375", Int, #137

1шт.

5

F18389

GEAR

- drive

1шт.

6

F18390

NUT

- hub

1шт.

7

F18400

SPACER - drive shaft

1шт.

8

F21292

BEARING, BALL

BEARING - drive shaft

1шт.

9

F21291

OIL SEAL

OIL SEAL - drive shaft

1шт.

10

F18392

KEY - ref. 5, Serial Range: gear-shaft

1шт.

F84203

KIT - relief valve

1шт.

11

F84204

SPRING AND BALL

1шт.

12

F21290

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

1шт.

13

NSS

NOT SOLD SEPARAT

CAP

1шт.

14

A15233

SEAT

- pump body

1шт.
