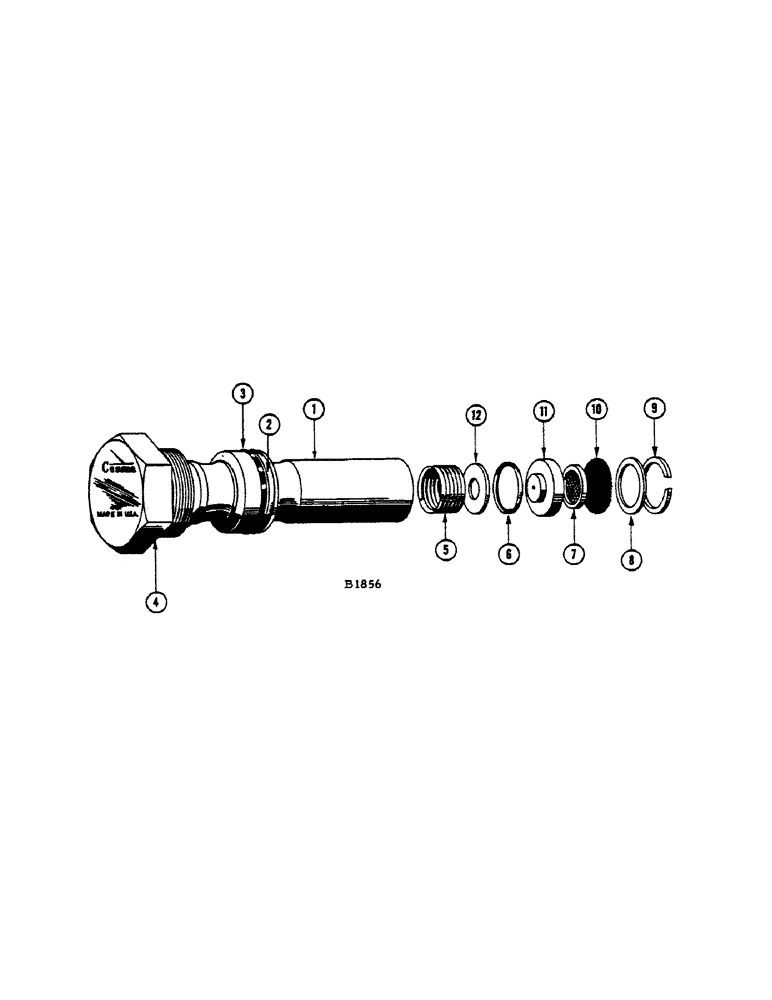

Запчасти Case IH 660 (256[B]) - RELIEF VALVE

1

F84829

VALVE

- relief, for F87262 valve

1шт.

F87195

LOCK VALVE

VALVE - relief, for F87181 valve

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 5/8" I.D.) valve

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8") backup

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - port hole, pump body

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/8" I.D.) orifice plate

1шт.

7

NSS

NOT SOLD SEPARAT

SCREEN - reinforcing

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - (.020" thick) for filter screen

1шт.

9

NSS

NOT SOLD SEPARAT

SNAP RING - for filter screen washer

1шт.

10

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - orifice

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - (.030" thick) spring

1шт.

F84831

SEAL

KIT - repair, port plate (Includes ref. 2, 3 and 4)

1шт.

F88436

KIT - seal repair (Includes ref. 9 and 10)

1шт.
