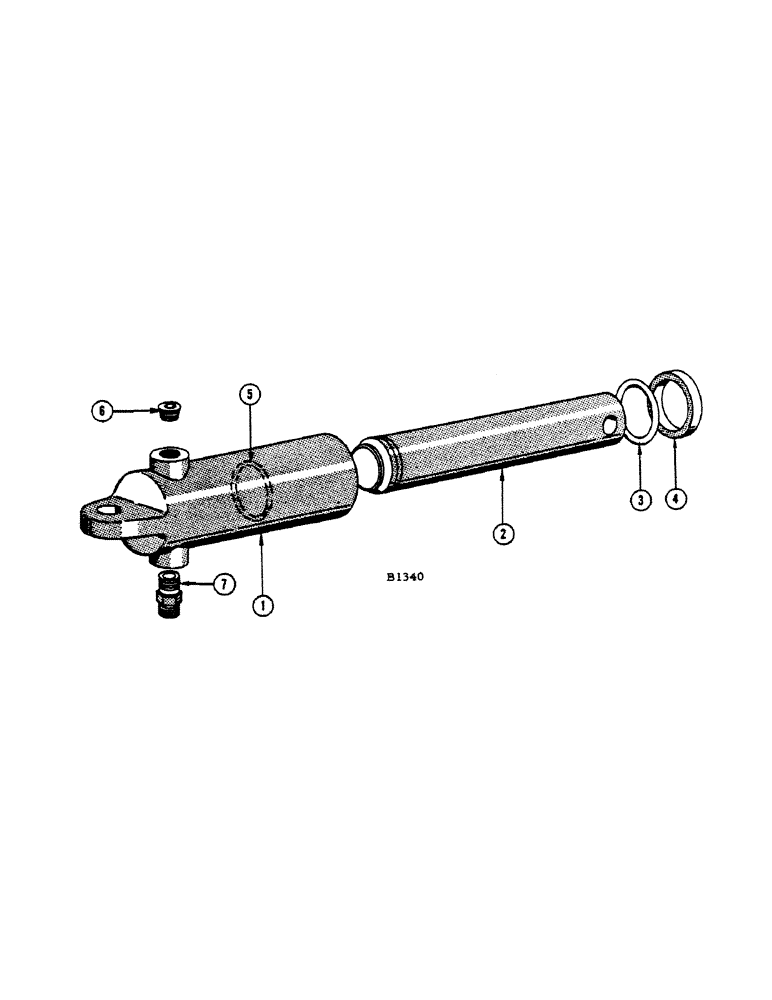

Запчасти Case IH 660 (256[A]) - F76962 VARIABLE SPEED CONTROL CYLINDER

F76962

CYLINDER - variable speed control

1шт.

1

F9514

BARREL - (2-1/4" O.D.) cylinder

1шт.

2

F9515

ROD - cylinder

1шт.

3

A30916

O-RING,1.475" ID x 1.875" OD x 0.21"

- (3/16" x 1-1/2" I.D.)

1шт.

4

A27564

OIL SEAL

OIL SEAL

1шт.

5

F9517

SNAP RING

1шт.

6

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

Pipe (For F9514 barrel) Hex Soc, 1/4"-18 NPTF

2шт.

7

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

ADAPTER

1шт.
