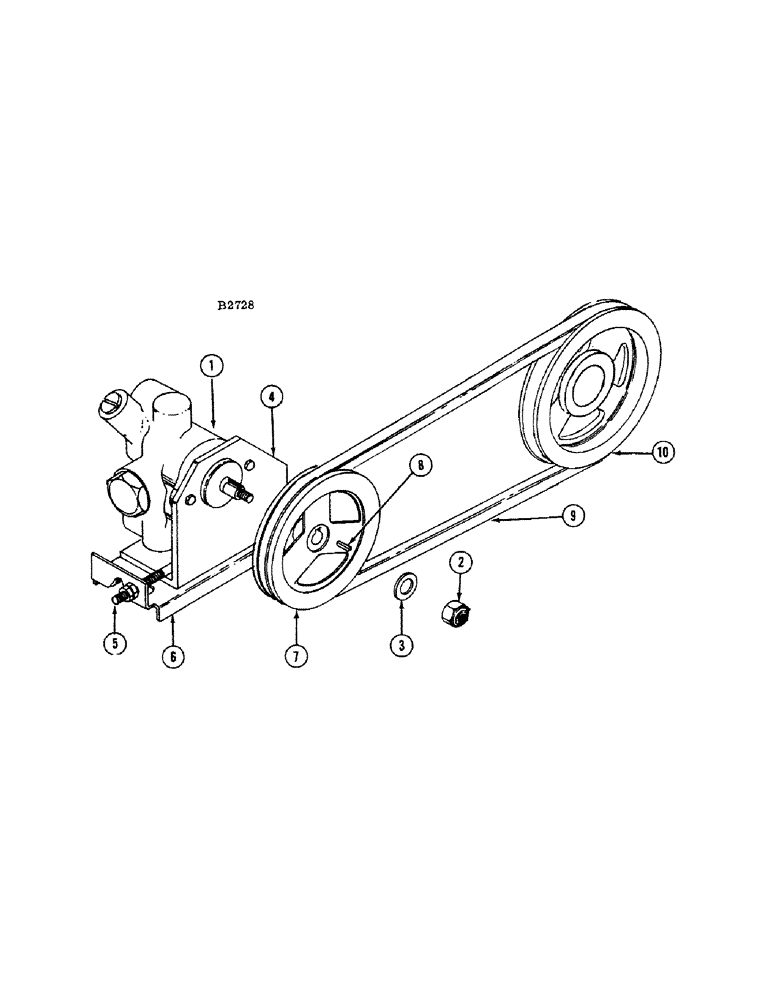

Запчасти Case IH 660 (255A) - HYDRAULIC PUMP DRIVE, SERIAL NUMBER 8334601 AND AFTER

1

F91969

PUMP - hyd. (Hydro. steering) (Exh. then use F89253)

1шт.

1

F89253

PUMP - hyd. (Hydro. steering) (Replaces F91969 when exh.)

1шт.

1

F91967

PUMP - hydraulic (Manual steering)

1шт.

2

131-706

LOCK NUT

NUT - 3/8" N.F. hug lock

1шт.

195-104

WASHER,3/8"

- flat 3/8"

1шт.

3

F60727

WASHER

1шт.

4

F22506

PLATE - support, hydraulic pump

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/2" N.F. hex (Nut and lockwasher)

2шт.

5

F18676

BOLT - adjusting

1шт.

11-520

X

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (Nut and lockwasher)

1шт.

6

F22505

BRACKET - adjusting, hydraulic pump

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, , Nut (25-106) L.W. (92-6) Short NK, 3/8"-16 x 1", G2

3шт.

11-512

SCREW,Short Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , Nut (25-105) L.W. (92-5) Short NK, 5/16"-18 x 3/4", G2

1шт.

7

F1719

SHEAVE - hyd. pump (Use with F91969)

1шт.

7

F1760

SHEAVE - hydr. pump (Use with F89253)

1шт.

8

F22590

KEY

- for F1719 sheave

1шт.

8

F23213

KEY

- for F1760 sheave

1шт.

9

F22503

BELT

"V" BELT - hydraulic pump drive

1шт.

10

F1718

SHEAVE - drive, hydraulic pump

1шт.

13-712

SCREW,Hex, 7/16" - 14 x 3/4", Gr 5, Full Thd

BOLT, Hex, 7/16"- 14 x 3/4", G5, Full Thd, and lockwasher (92-7)

4шт.

F94058

KIT - repair, backup plate

1шт.
