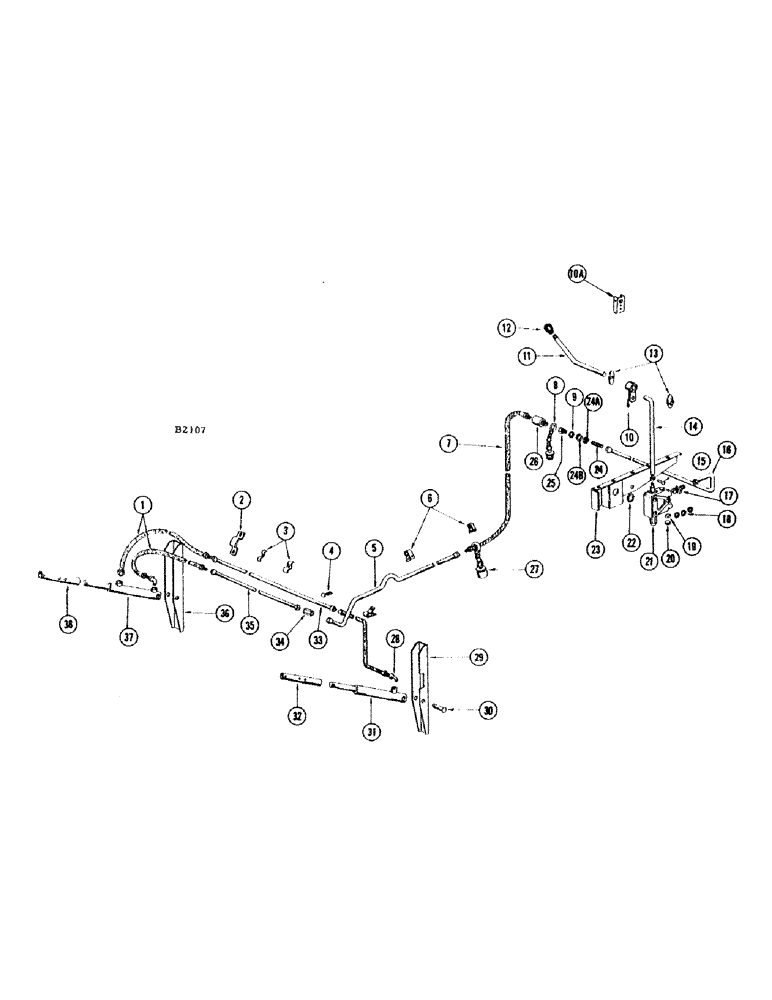

Запчасти Case IH 660 (024) - HYDRAULIC REEL LIFT ATTACHMENT

1

F12397

HOSE - reel lift cylinders (2 - R.H. AND 1 - L.H.)

3шт.

2

F12399

CLAMP - for R.H. cylinder hoses

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) L.W. (192-19)

2шт.

3

F12067

CLIP - double, for R.H. cylinder lines

3шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) L.W. (192-19)

3шт.

4

F9263

CLIP - for cylinder to cylinder lines

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) L.W. (192-19)

2шт.

5

F83763

LINE - hydraulic, coupler hose to R.H. reel cylinder line (Includes flared nuts)

1шт.

6

F12398

CLIP - 2 for ref. 7 and 1 for ref. 5 line

3шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) L.W. (192-19)

3шт.

7

F12397

HOSE - coupler to ref. 5 line

1шт.

8

F12393

PLUG - coupler (Used only to seal lines when they are disconnected)

1шт.

10

F91843

ARM - control lever (Replaces F21584 when stocks are exhausted)

1шт.

10

F21584

ARM - control lever (Replaced by F91843 when stocks are exhausted)

1шт.

PIN - type "A" Driv-Loc 3/16" x 7/8" (135-340)

1шт.

11

F20791

LEVER - control

1шт.

12

F5301

KNOB - for ref. 11 lever

1шт.

13

F1680

BEARING - control lever

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121) L.W. (192-19)

4шт.

14

F20792

ROD - control valve (Manual steering, 19-3/4" long)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

WASHER - 3/8" flat (195-525)

1шт.

14

F20793

ROD - control valve (Hydrostatic steering - 18-3/8" long)

1шт.

PIN - cotter 1/8" x 3/4" (132-46)

1шт.

WASHER - 3/8" flat (195-525)

1шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Control rod to valve 3/8" x 1.060"

1шт.

PIN - cotter 3/32" x 3/4" (132-26)

1шт.

16

F91757

LINE - hydraulic, valve to coupler (Includes flared nuts)

1шт.

17

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - (1/2" O.D. to 3/8" tube size Parker #8 FTX-1S) valve to F91757 line

1шт.

18

F8222

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

"O" RING - valve body

10шт.

19

F12260

PLATE - orifice, valve

1шт.

20

F8245

RETAINER - orifice plate, valve

1шт.

21

F77045

VALVE - hydraulic

1шт.

BOLT - 5/16" x 6-1/2" N.C. hex. (13-5104) L.W. (92-5)

3шт.

22

F8220

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

"O" RING - valve body

1шт.

23

F84573

BRACKET - mounting, hydraulic valve, R.H.

1шт.

BOLT - 5/16" x 5/8" N.C. rhd. sq. nk. (111-217) and nut (129-102) L.W. (192-20)

8шт.

BOLT - 1/2" x 2" N.F. hex. (114-410) nut (129-125) L.W. (129-23)

1шт.

BOLT - 3/8" x 5/8" N.C. hex. (113-205) L.W. (192-21)

3шт.

24

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

UNION - #8 WTX-S Parker

1шт.

24a

129-168

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.F. hex. jam

1шт.

24b

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25

F12396

ADAPTER - coupler, valve

1шт.

26

F12394

COUPLER - self sealing

1шт.

27

F12395

CAP - dust, coupler (Used only to seal lines when they are disconnected)

1шт.

28

221-1412

ELBOW,90 Degree, 1/4"-27, NPT

reel lift cylinders 90º, 1/4"-27, NPT

2шт.

29

F20799

BRACKET - support, L.H. cylinder

1шт.

BOLT - 1/4" x 1" rhd. sq. nk. (111-111) dbl. nut (129-101) and dbl. L.W. (192-19)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) dbl. nut (129-103) and dbl. L.W. (192-21)

1шт.

BOLT - 1/4" x 1" N.C. hex. (113-4) dbl. nut (129-101) and dbl. L.W. (192-19)

1шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) dbl. nut (129-103) and dbl. L.W. (192-21)

1шт.

30

O3879HT

PIN - reel lift cylinders to support brackets

2шт.

PIN - cotter 3/16" x 1" (132-91)

2шт.

31

F86479

CYLINDER - reel lift, L.H.

1шт.

F86628

KIT

- repair, for F86479 cylinder (Includes (2) washers, (1) seal and (20 o-rings) Not Shown

1шт.

32

F20801

EXTENSION - L.H. cylinder

1шт.

BOLT - 1/4" x 2" N.F. hex. (114-410) locknut (131-168)

1шт.

33

F83764

LINE - hydraulic, cylinder to cylinder (10 ft. header)

1шт.

33

F83782

LINE - hydraulic, cylinder to cylinder (13 ft. header)

1шт.

33

F86488

LINE - hydraulic, cylinder to cylinder (14 ft. header)

1шт.

34

218-732

UNION,7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- (Parker #4HTX-S) F83763 line to R.H. cylinder line

1шт.

35

F83765

LINE - hydraulic, to R.H. cylinder (10 ft. header)

1шт.

35

F83764

LINE - hydraulic, to R.H. cylinder (13 ft. header)

1шт.

35

F83620

LINE - hydraulic, to R.H. cylinder (14 ft. header)

1шт.

36

F20798

BRACKET - support, R.H. cylinder

1шт.

BOLT - 1/4" x 1" rhd. sq. nk. (111-111) dbl. nut (129-101) and dbl. L.W. (192-19)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (111-317) dbl. nut (129-103) and dbl. L.W. (192-21)

1шт.

BOLT - 1/4" x 1" N.C. hex. (113-4) dbl. nut (129-101) and dbl. L.W. (192-19)

1шт.

BOLT - 3/8" x 1" N.C. hex. (113-207) dbl. nut (129-103) and dbl. L.W. (192-21)

1шт.

37

F88631

CYLINDER ASSY.

CYLINDER - reel lift, R.H. (Cessna #41096-BK) Replaces F84728 when stocks are exhausted

1шт.

37

F84728

PUSH ROD

CYLINDER - reel lift, R.H. (Cessna #41096-BE) Replaces F86478

1шт.

F87180

SEAL

KIT - repair, for F84728 or F88631 cylinder (Includes (1) wshr. (1) seal, (4) o-rings and (1) piston ring) Not Shown

1шт.

F86478

CYLINDER - reel lift, R.H. (Cessna #41096-BC) Replaced by F84728 when stocks are exhausted

1шт.

37

F86627

PACKAGE, REPAIR

KIT - repair, for F86478 cylinder (Includes (2) poppets, (1) spring, (1) seat plug, (1) washer, (1) seal and (4) O-rings Not Shown

1шт.

38

F20800

EXTENSION - R.H. cylinder

1шт.

BOLT - 1/4" x 2-1/2" N.F. hex. (114-404) locknut (131-168)

1шт.

9

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - adapter

1шт.
