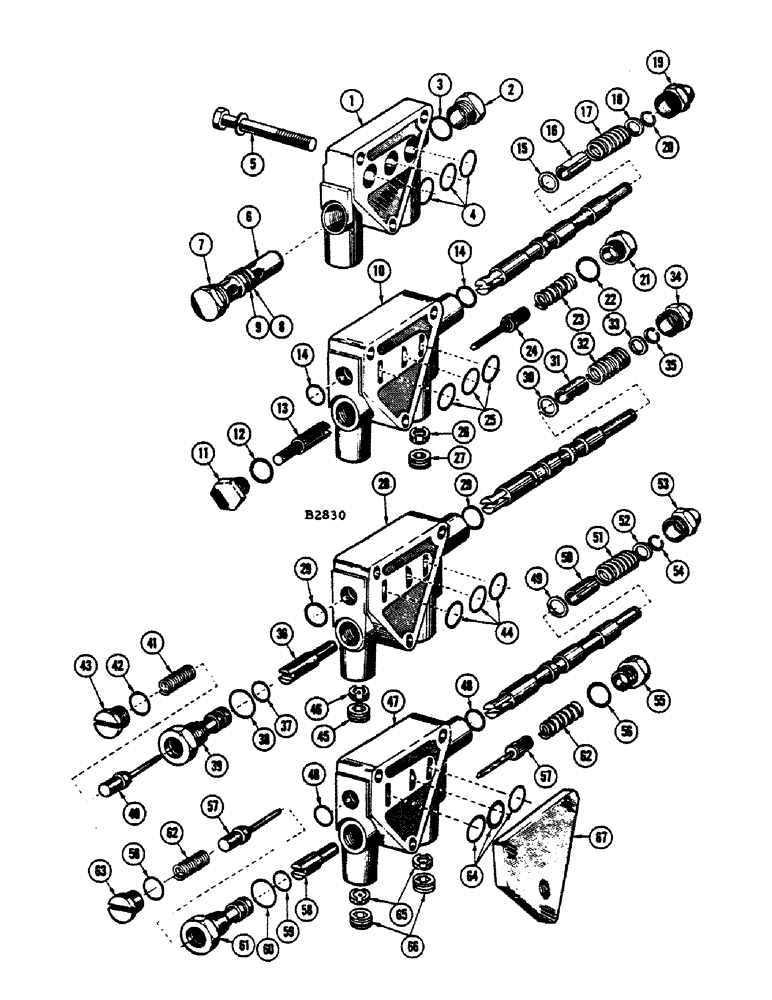

Запчасти Case IH 660 (253A) - F87181 AND F94386 VALVES, STACKS TWO AND THREE

F87181

VALVE

- (2) stack for machines equipped with manual folding unloading auger (Stacks 2)

1шт.

F94386

VALVE - (3) stack for machines equipped with hydraulic folding unloading auger (Stacks 3)

1шт.

1

F1290

BODY - Port Plate Assy.

1шт.

2

F8240

PLUG - upper port plate, assembly

1шт.

3

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) for plate plug, port assembly

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D.-90 DUR.) port plate, assembly

3шт.

5

13-578

BOLT - 5/16" x 4-7/8" N.C. hex and L.W. (92-5) (Stacks 2), port plate assembly

3шт.

5

13-5104

SCREW - cap 5/16" x 6-1/2" N.C. hex and L.W. (92-5) (Stacks 3), port plate assembly

3шт.

6

F87195

LOCK VALVE

VALVE - relief assembly, port plate

1шт.

F84831

SEAL

KIT - repair, port plate seal, assembly

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.), port plate assembly

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 5/8" I.D.), port plate assembly

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8") backup - rubber, port plate assembly

1шт.

10

F77045

BODY, with spool, Header Control Assy., section

1шт.

11

F8242

PLUG - body, header control section

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) body plug, header control section

1шт.

13

F8243

PLUNGER - lockout, header control section

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) spool, header control section

2шт.

15

F8235

WASHER

- (59/64" O.D.) backup, header control section

1шт.

16

F8224

SLEEVE

- spool, header control section

1шт.

17

F8225

SPRING - spool centering, header control section

1шт.

18

F8236

SHIM

WASHER - (51/64" O.D.) backup, header control section

1шт.

19

F77047

CAP

- spool, header control section

1шт.

20

F8237

RING

SNAP RING - (1/2" sq. closed) spool cap, header control section

1шт.

21

F8240

PLUG - lockout spring, header control section

1шт.

22

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.), header control section

1шт.

23

F8228

SPRING

- lockout, header control section

1шт.

24

NSS

NOT SOLD SEPARAT

POPPET - relief, header control section

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D.-90 DUR.), header control section

3шт.

26

F8223

PLATE - orifice, header control section

1шт.

27

F8245

RETAINER - orifice plate, header control section

1шт.

28

F89252

BODY, with spool, Variable Speed Control Section

1шт.

29

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) spool, variable speed control section

2шт.

30

F8235

WASHER

- (59/64" O.D.) backup, variable speed control section

1шт.

32

F8225

SPRING - spool centering, variable speed control section

1шт.

31

F8224

SLEEVE

- spool, variable speed control section

1шт.

32

F8225

SPRING - spool centering, variable speed control section

1шт.

33

F8236

SHIM

WASHER - (51/64" O.D.) backup, variable speed control section

1шт.

34

F77047

CAP

- spool, variable speed control section

1шт.

35

F8237

RING

SNAP RING - (1/2" sq. closed) spool cap, variable speed control section

1шт.

35

F8237

RING

SNAP RING - (1/2" sq. closed) spool cap, variable speed control section

1шт.

36

F8229

PLUNGER

- lockout, variable speed control section

1шт.

37

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 9/16" I.D.) lockout seat, variable speed control section

1шт.

38

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) lockout seat, variable speed control section

1шт.

39

F8227

SEAT - lockout, variable speed control section

1шт.

40

NSS

NOT SOLD SEPARAT

POPPET - relief, variable speed control section

1шт.

41

F8228

SPRING

- lockout, variable speed control section

1шт.

42

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) for F11828 plug, variable speed control section

1шт.

43

F11828

PLUG

- slotted, lockout spring, variable speed control section

1шт.

44

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D. - 90 durameter), variable speed control section

3шт.

45

F8245

RETAINER - orifice plate, variable speed control section

1шт.

46

F12260

PLATE - orifice, variable speed control section

1шт.

47

F94479

BODY - with spool, Hydraulic Folding Auger Section (Stacks 3)

1шт.

48

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.-50 DUR.) (Stacks 3), hydraulic folding auger section

2шт.

49

F8235

WASHER

- (59/64" O.D.) backup (Stacks 3), hydraulic folding auger section

1шт.

50

F8224

SLEEVE

- spool (Stacks 3), hydraulic folding auger section

1шт.

51

F8225

SPRING - spool centering (Stacks 3), hydraulic folding auger section

1шт.

52

F8236

SHIM

WASHER - (51/64" O.D.) backup (Stacks 3), hydraulic folding auger section

1шт.

53

F77047

CAP

- spool (Stacks 3), hydraulic folding auger section

1шт.

54

F8237

RING

SNAP RING - (1/2" sq. closed) spool cap (Stacks 3), hydraulic folding auger section

1шт.

55

F8240

PLUG - lockout spring (Stacks 3), hydraulic folding auger section

1шт.

56

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) for F8240 and F11828 plugs (Stacks 3), hydraulic folding auger section

2шт.

57

NSS

NOT SOLD SEPARAT

POPPET - relief (Stacks 3), hydraulic folding auger section

2шт.

58

F8229

PLUNGER

- lockout (Stacks 3), hydraulic folding auger section

1шт.

59

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 9/16" I.D.) lockout seat (Stacks 3), hydraulic folding auger section

1шт.

60

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) lockout seat (Stacks 3), hydraulic folding auger section

1шт.

61

F8227

SEAT - lockout (Stacks 3), hydraulic folding auger section

1шт.

62

F8228

SPRING

- lockout (Stacks 3), hydraulic folding auger section

2шт.

63

F11828

PLUG

- slotted, lockout spring (Stacks 3), hydraulic folding auger section

1шт.

64

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D.-90 DUR.) (Stacks 3), hydraulic folding auger section

3шт.

65

F23031

PLATE - orifice (Stacks 3), hydraulic folding auger section

2шт.

66

F8245

RETAINER - orifice (Stacks 3), hydraulic folding auger section

2шт.

67

F13237

PLATE - end cover, hydraulic folding auger section

1шт.

F84830

KIT - major seal repair (Stacks 2)

1шт.

F94473

KIT - major seal repair (Stacks 3)

1шт.

F84831

SEAL

KIT - repair, port plate seal

1шт.

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.), seal repair kit

1шт.

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 5/8" I.D.), seal repair kit

1шт.

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8" backup - rubber), seal repair kit

1шт.

F84832

KIT - o-ring (Between sections), seal repair

1шт.

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" I.D. - 90 DUR.) port plate, seal repair kit

3шт.

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/4" - 90 DUR.) for F77045, seal repair kit

3шт.

NSS

NOT SOLD SEPARAT

O-RING - (1/16" x 3/8" I.D. - 90 DUR.) for F13237, seal repair kit

3шт.

F84833

KIT - repair (F89252 vari-speed section) (Stacks 2), seal repair

1шт.

F94477

KIT

- repair (F89252 vari-speed section and F94479 hydraulic folding unloading auger) (Stacks 3), seal repair

1шт.

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) spool and lockout seat, seal repair kit

3шт.

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 9/16" I.D.) lockout seat, seal repair kit

1шт.

NSS

NOT SOLD SEPARAT

POPPET - relief, seal repair kit

1шт.

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) for F11828 plug, seal repair kit

1шт.

F83834

KIT - repair (F77045 header section), seal repair kit

1шт.

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) spool, seal repair kit

2шт.

NSS

NOT SOLD SEPARAT

O-RING - (3/32" x 3/4" I.D.) body plug, seal repair kit

1шт.

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

- (3/32" x 1/2" I.D.) for F8240 plug, seal repair kit

1шт.

NSS

NOT SOLD SEPARAT

POPPET - relief, seal repair kit

1шт.
