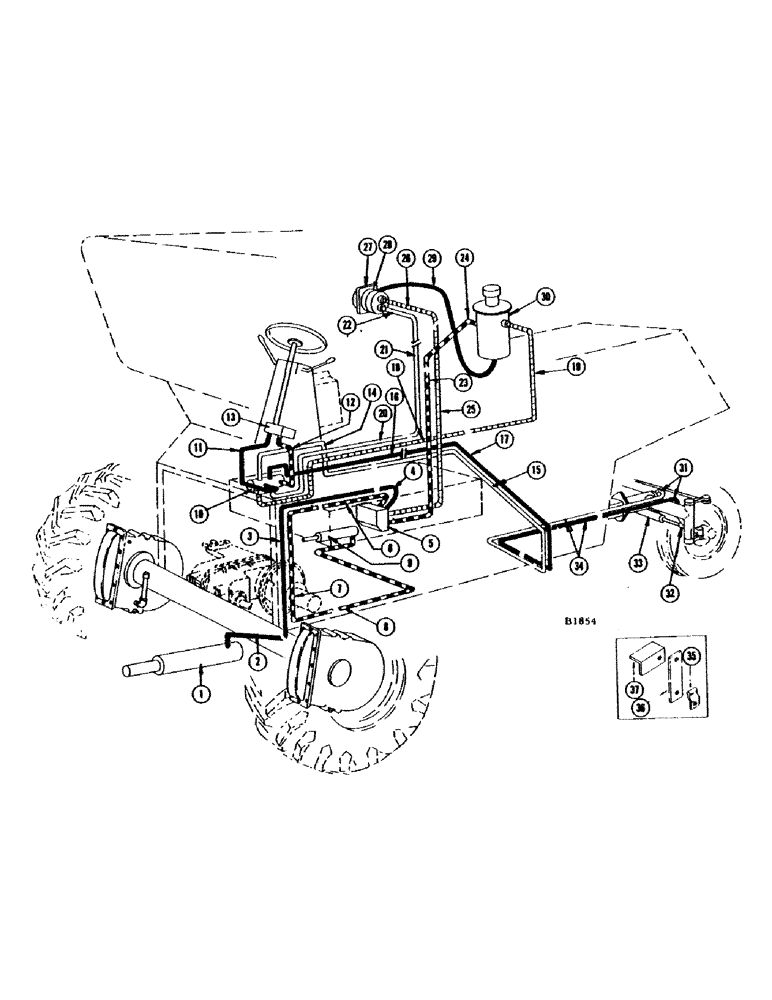

Запчасти Case IH 660 (250) - HYDRAULIC SYSTEM, HYDROSTATIC STEERING, BEFORE NUMBER 8357001

1

F82009

CYLINDER - header lift

1шт.

221-412

ELBOW,90 Degree, 1/4"-27, NPT

FITTING - elbow, 1/4" - 90 degree street, hose to cylinder

1шт.

2

F17490

HOSE - header lift cylinder

1шт.

F17859

CLIP - hose, F17490

1шт.

F17860

CLAMP - hose, F17490

1шт.

14-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 5

Nut (25-114), L.W. (92-4) Hex, 1/4"-28 x 1/2", G5, Full Thd

1шт.

3

F81767

LINE - lower, header lift

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (#6-HTX-S) (F81767 to F81766)

1шт.

F17491

CLIP - hydraulic line

1шт.

O2342FH

CLIP - hydraulic line

2шт.

O2270N

SPACER

1шт.

4

F81766

LINE - upper, header lift

1шт.

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF (#6-6FTX-A) (F81766 to valve)

1шт.

5

F87262

VALVE

- speed control (Before #8334601)

1шт.

F87181

VALVE

- speed control (#8334601 and after)

1шт.

6

F81768

LINE - front, V.S. traction drive

1шт.

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF (#6-6FTX-A) (F81768 to valve)

1шт.

7

F81769

LINE - center, V.S. traction drive

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (#6-6HTX-S) (F81768 to F81769 to F81770)

2шт.

F17867

CLIP - hydraulic line

4шт.

B18299

SPACER

2шт.

8

F81770

LINE - lower, V.S. traction drive

1шт.

F17867

CLIP - hydraulic line

3шт.

9

F76962

CYLINDER - variable speed control

1шт.

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - elbow (#6-CTX-S) (F81770 to F76962)

1шт.

10

A37980

VALVE

- hydrostatic, power steering (Replaces F82739 when stocks are exhausted)

1шт.

F82739

VALVE

- hydrostatic, power steering (Replaced by A37980 when stocks are exhausted)

1шт.

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

- 3/8" x 1" N.F. hex, nut (25-116) L.W. (92-6)

3шт.

11

F84372

LINE - R.H., Serial Range: pump-valve

1шт.

12

F84376

LINE - L.H., Serial Range: pump-valve

1шт.

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

FITTING - connector (#8-F50X-S) (F84372-376 to pump and valve)

4шт.

13

F86570

PUMP - hydrostatic hand

1шт.

14

F82756

LINE - upper front, Serial Range: valve-cylinder

1шт.

15

F82762

LINE - upper rear, Serial Range: valve-cylinder

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (#6-HTX-S) (F82756 to F82762)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector (#6-F50X-S) (F82756 to valve)

1шт.

F17486

CLIP - hydraulic line

4шт.

16

F82757

LINE - lower front, Serial Range: valve-cylinder

1шт.

17

F82761

LINE - lower rear, Serial Range: valve-cylinder

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (#6-HTX-S) (F82757 to F82761)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector (#6-F50X-S) (F82757 to valve)

1шт.

F17491

CLIP - hydraulic line

2шт.

18

F82754

LINE - front, Serial Range: valve-reservoir

1шт.

19

F91799

LINE - rear, valve to reservoir (Replaces F82758 when stocks are exhausted)

1шт.

F82758

LINE - rear, valve to reservoir (Replaced by F91799 when stocks are exhausted)

1шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (#6-HTX-S) (F82754 to F82758 or F91799)

1шт.

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

FITTING - connector (#6-8F50X-S) (F82754 to valve)

1шт.

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING - elbow (#6-CTX-S) (F82758 or F91799 to reservoir)

1шт.

20

F82755

LINE - front, Serial Range: valve-pump

1шт.

21

F83467

LINE - rear, F87262 valve to F81977 pump

1шт.

F21843

LINE - rear, F87181 valve to F91969 pump

1шт.

218-534

ELBOW,45 Degree, 3/4"-14, 37 Degree x 3/8"-18, NPTF

FITTING - union (#6-HTX-S) (F82755 to F83467)

1шт.

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

FITTING - connector (#6-F50X-S) (F82755 to valve)

1шт.

F17867

CLIP - hydraulic line

1шт.

22

F17766

HOSE - pressure, pump F81977

1шт.

22

F22509

HOSE - pressure, pump F91969

1шт.

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

FITTING - elbow, 3/4" x 45 degree street (F17766 to pump)

1шт.

F18735

HOSE - pressure relief, pump F81977

1шт.

F81980

LINE - pressure relief, pump F81977

1шт.

23

F81765

LINE - hydraulic, return, Serial Range: valve-reservoir

1шт.

24

F20910

HOSE - reservoir return

1шт.

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - connector (#8-8FTX-S) (F81765 to valve)

1шт.

221-414

FITTING,90 Degree, 1/2"-14, NPT

- elbow, 1/2" x 90 degree street, F20910 to reservoir

1шт.

25

F91752

LINE - rear pressure, Serial Range: pump-valve

1шт.

F91753

LINE - front pressure, Serial Range: pump-valve

1шт.

F17487

CLIP - hydraulic

1шт.

F17488

STRIP - canvas (Use with F17487)

1шт.

26

F51061

HOSE - F81977 pump to F87262 valve

1шт.

26

F22508

HOSE - F91969 pump to F87181 valve

1шт.

218-1035

HYD CONNECTOR,3/4"-16, 37 Degree x 1/2"-14, Fem Pipe

FITTING - adaptor (#8-8GTX-S) (F51061 to F81766)

1шт.

217-1004

ADAPTER,1/2" - 14 Male NPTF x 3/4" - 14 Female NPTF

FITTING - connector, 3/4" x 1/2" FG-5, F81766 to valve

1шт.

27

F81977

PUMP - hydraulic (Before #8334601)

1шт.

27

F91969

PUMP - hydraulic (#8334601 and after) (Exh. then use F89253)

1шт.

27

F89253

PUMP - hydraulic (Replaces F91969 when exh.)

1шт.

14-724

SCREW,Hex, 7/16" - 20 x 1 1/2", Gr 5

BOLT - 7/16" x 1-1/2" N.F. hex

2шт.

25-117

NUT,7/16"-20, G5

- 7/16" N.F. hex and L.W. (92-7)

2шт.

28

F8049

COUPLING - F18673 hose to pump and reservoir

2шт.

28

F22507

COUPLING - hose, F91969 pump

1шт.

132-54

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

1шт.

29

F18673

HOSE - intake, reservoir to F81977 pump

1шт.

29

F22511

HOSE - intake, reservoir to F91969 pump (Gas engine)

1шт.

29

F21820

CARRIAGE BOLT

HOSE - intake, reservoir to F91969 pump (Diesel engine)

1шт.

F8049

COUPLING - F21820 or, Serial Range: F22511-reservoir

1шт.

214-11

X

CLAMP - #11-1/2, hose

1шт.

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street, hose to reservoir 90º, 3/4"-14, NPT

1шт.

30

F83852

RESERVOIR - hydraulic

1шт.

31

F12430

HOSE - hydraulic, 40" wide axle

2шт.

31

F21221

HOSE - hydraulic, 66" wide axle

2шт.

31

F22490

HOSE - hydraulic, 78" wide axle

2шт.

31

F19381

HOSE - hydraulic, special heavy-duty wide axle

2шт.

F8807

CLIP - hydraulic hose, steering cylinder

1шт.

187-993

SCREW - #14 x 5/8" tapping

1шт.

25-104

NUT,1/4"-20, G5

and L.W. (92-4) 1/4"-20, G5

1шт.

F9566

CUSHION - for F8807 clip

1шт.

32

F83466

SOCKET - steering cylinder (Narrow or wide axle)

1шт.

32

F82723

SOCKET - steering cylinder (Special heavy-duty wide axle)

1шт.

25-199

NUT - 9/16" N.F. hex

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

33

F87848

CYLINDER - power steering (Narrow or wide rear axle) (Replaces F86540)

1шт.

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex jam

2шт.

33

F91830

CYLINDER

- power (Special heavy-duty rear axle) (Replaces F82953)

1шт.

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

34

F82803

LINE - hydraulic, extension (Special heavy-duty wide axle)

2шт.

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING - union (#6-HTX-S) (F82803 to F82761-62)

2шт.

35

F7778

CLIP - hydraulic line, F83467

1шт.

14-410

SCREW,Hex, 1/4" - 28 x 5/8", Gr 5

BOLT - 1/4" x 5/8" N.F. hex, nut (25-114) L.W. (92-4)

1шт.

36

F9565

CUSHION (Cotton duck - rubberized) for F7778 clip

1шт.

37

F20459

ANGLE - support, for F7778 clip

1шт.

BOLT - 5/16" x 3/4" N.F. hex (14-512) nut (25-115)

1шт.

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- F22508 hose to F21843

1шт.
