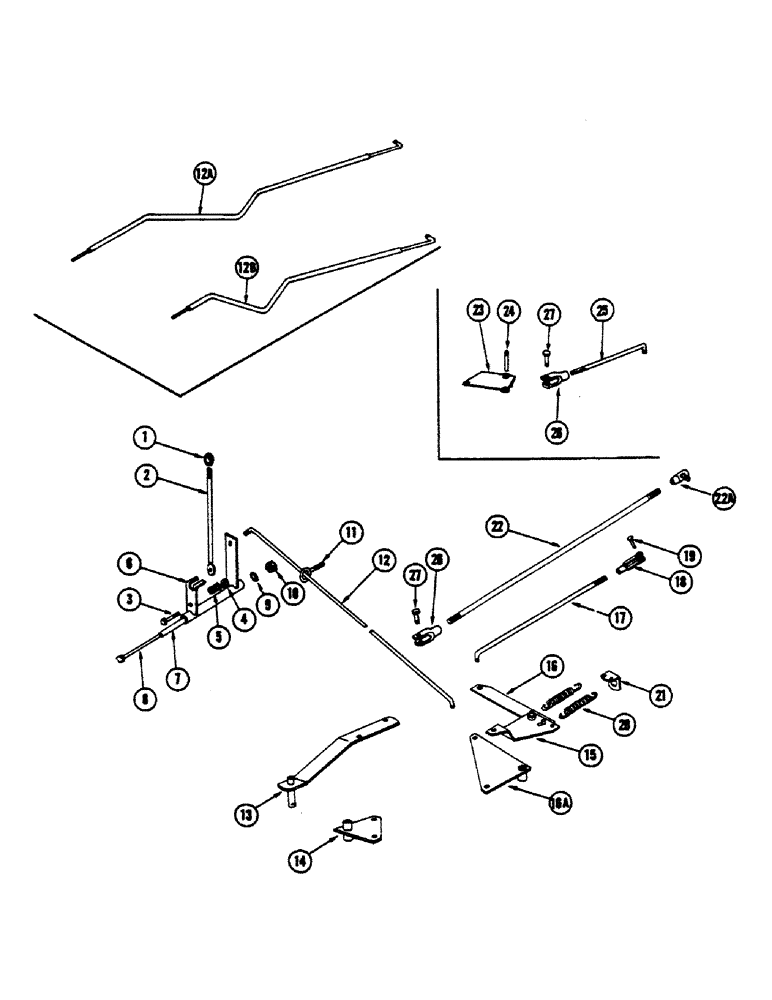

Запчасти Case IH 660 (244) - THROTTLE CONTROL LINKAGE, GRAIN BIN COMBINES

1

F21683

KNOB

- lever

1шт.

2

F21575

CARRIAGE BOLT

LEVER - throttle

1шт.

3

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex, for throttle lever

1шт.

WASHER - 1/4" flat (195-18)

1шт.

4

131-1

LOCK NUT,1/4"-28, GB

LOCKNUT - 1/4" N.F.

1шт.

5

A30370

SPRING - throttle lever return

1шт.

6

F84368

ARM - throttle control

1шт.

7

O670B

SPACER - throttle control arm

2шт.

8

14-4120

BOLT - 1/4" x 7-1/2" N.F. hex

1шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

1шт.

11

F21531

GUIDE - throttle rod

1шт.

NUT - 1/4" N.F. hex (25-104)

2шт.

12

F21590

ROD - throttle (Gas) (Before #8357001)

1шт.

12

F22707

PLOW BOLT

ROD - throttle (Gas) (#8357001 and after)

1шт.

PIN - cotter, 3/32" x 3/4" (132-26)

2шт.

WASHER - 1/4" flat (195-18)

2шт.

F18727

ROD - throttle control (Diesel engine)

1шт.

PIN - cotter, 3/32" x 3/4" (132-26)

2шт.

WASHER - 1/4" flat (95-4)

2шт.

12a

F89249

ROD - throttle (Gas) (660 special)

1шт.

12b

F89250

ROD - throttle (Diesel engine) (660 special)

1шт.

25-114

NUT,1/4"-28, G5

- 1/4" N.F. hex

2шт.

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS

2шт.

141-2

CLEVIS PIN,1/4" x .770"

PIN

2шт.

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

2шт.

195-18

WASHER,1/4"

- flat SAE 1/4"

2шт.

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

13

F82544

SUPPORT - bellcrank (Diesel engine)

1шт.

BOLT - 3/8" x 1-1/2" N.F. hex (14-624) nut (25-116)

2шт.

WASHER - 3/8" flat (95-6)

1шт.

PIN - cotter, 1/8" x 3/4" (132-46)

1шт.

14

F82545

BELLCRANK - throttle (Diesel engine)

1шт.

15

F22201

BELLCRANK - (Gas), Serial Range: (#8309001-#8357001)

1шт.

16

F84901

BELLCRANK - (Gas), Serial Range: (#8309001-#8357001)

1шт.

16a

F94196

BELLCRANK - (Gas) (#8357001 and after)

1шт.

PIN - cotter, 1/8" x 3/4" (132-46)

1шт.

WASHER - 3/8" flat (195-25)

1шт.

17

F22199

ROD - rear, throttle (Gas engine) (#8309001 and after)

1шт.

PIN - cotter, 3/32" x 3/4" (132-26)

1шт.

NUT - 1/4" N.F. hex (25-114)

1шт.

F22389

CAP - push on (Not shown) (Before #8357001)

1шт.

18

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - rear rod gas, front rod diesel

1шт.

19

141-2

CLEVIS PIN,1/4" x .770"

PIN - rear rod clevis

1шт.

PIN - cotter, 1/16" x 5/8" (132-6)

1шт.

20

O4556B

SPRING

- (Gas), Serial Range: (#8309001-#8357001)

2шт.

21

F22198

CLIP - spring (Gas), Serial Range: (#8309001-#8357001)

1шт.

22

F18734

LINK - bellcrank to governor rod (Diesel engine)

1шт.

NUT - 1/4" N.F. hex (25-114) L.W. (92-4)

2шт.

22a

A10329

BALL JOINT,1/4" - 28 x 1"

- (Diesel engine)

1шт.

23

F83887

BELLCRANK - throttle (Gas engine) (Before #8309001)

1шт.

24

F17222

PIN - pivot, throttle bellcrank

1шт.

PIN - cotter, 1/4" x 3/4" (132-46)

1шт.

25

F17146

LINK - bellcrank to governor rod (Gas engine) (Before #8309001)

1шт.

PIN - cotter, 3/32" x 3/4" (132-26)

1шт.

NUT - 1/4" N.F. hex (25-114) fl. wshr. (95-4)

1шт.

26

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

CLEVIS - for ref. 22 or 25 link

1шт.

27

141-7

CLEVIS PIN,5/8" x 1.610"

PIN - for ref. 26 clevis

1шт.
