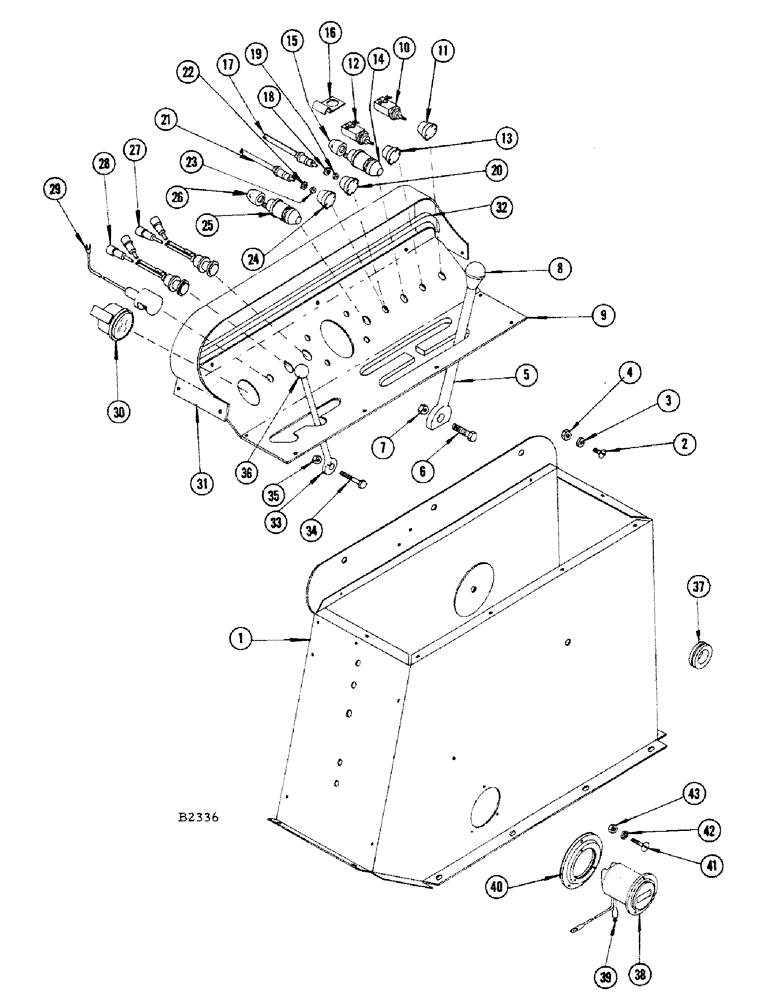

Запчасти Case IH 660 (242) - INSTRUMENT PANEL

1

F84367

CONSOLE - instrument panel

1шт.

2

173-201

SCREW,Rnd Hd, 1/4" - 20 x 1/2"

- 1/4" x 1/2" N.C. rhd. mach.

3шт.

3

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

4

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

3шт.

5

F21574

LEVER - gear shift

1шт.

6

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

7

131-6

LOCK NUT,3/8"-16, GC

LOCKNUT - 3/8" N.C.

1шт.

8

F5301

KNOB

1шт.

9

F22375

PANEL - instrument (Replaces F21637 when stocks are exhausted)

1шт.

F21637

PANEL - instrument (Replaced by F22375 when stocks are exhausted)

1шт.

SCREW - #10 x 3/8" truss hd. slotted (187-1027)

6шт.

10

A10942

KIT

SWITCH - light (Lighting attachment only)

1шт.

11

A7817

KNOB

1шт.

F91864

SWITCH

- ignition and starter (#8309001 and after)

1шт.

F13869

X

KNOB

1шт.

12

A7935

SWITCH

- ignition (Before #8309001)

1шт.

13

A7819

KNOB

1шт.

14

A30858

SWITCH

STARTING SWITCH - starter, push-button (Before #8309001)

1шт.

15

O10463AB

BOOT

- starter switch

1шт.

16

F14006

CLIP - under starter switch

1шт.

17

F21506

CABLE - shut-off (Diesel engine)

1шт.

18

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

19

129-123

NUT,3/8"-24, G5

1шт.

20

F21642

KNOB - shut-off switch (Diesel engine)

1шт.

21

F21505

CHOKE

- control (Gas engine)

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

129-123

NUT,3/8"-24, G5

1шт.

24

F13010

KNOB

- choke (Gas engine)

1шт.

25

A30858

SWITCH

- heater (Diesel engine)

1шт.

26

O10463AB

BOOT

- heater switch

1шт.

27

F82422

LIGHT - oil pressure warning

1шт.

F21950

BULB - red (Mfg. #431R)

1шт.

28

F84181

LIGHT - generator indicator (Generator system)

1шт.

F84923

LIGHT - battery warning (Alternator system)

1шт.

F21950

BULB - red (Mfg. #431R)

1шт.

29

A24087

LAMP BASE

LAMP - dash (12 volt) lighting attachment only

1шт.

A22349

BULB

- (Mfg. #1445)

1шт.

SCREW - #6 - 32 x 5/16" rhd. sheet metal (187-1007)

2шт.

30

F82423

GAUGE - temperature

1шт.

31

F84411

HOOD - instrument panel

1шт.

SCREW - #10 x 3/8" truss hd. slotted (187-1027)

4шт.

32

F13009

GASKET

MOULDING

1шт.

33

F21575

CARRIAGE BOLT

LEVER - throttle

1шт.

34

14-424

SCREW,Hex, 1/4" - 28 x 1 1/2", Gr 5

BOLT - 1/4" x 1-1/2" N.F. hex

1шт.

35

131-1

LOCK NUT,1/4"-28, GB

LOCKNUT - 1/4" N.F.

1шт.

36

F21683

KNOB

- for F21575

1шт.

37

A27339

GROMMET - ignition wires

1шт.

D39286

GAUGE

KIT - engine hour meter (Attachment)

1шт.

38

NSS

NOT SOLD SEPARAT

METER - engine hour

1шт.

39

D39285

ELECTRICAL WIRE

WIRE - lead

2шт.

D39284

KIT

PACKET - mtg. hardware

1шт.

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6-32 x 1/2" rhd.

3шт.

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

40

D35079

DAMPER

FLANGE - mounting

1шт.

41

173-61

SCREW,Sl Rnd Hd, #6 - 32 x 1/2"

- #6 x 1/2" N.C. rhd.

3шт.

42

193-24

LOCK WASHER,Int Tooth, #6

WASHER, LOCK, Int Tooth, #6

3шт.

43

129-5

NUT,#6-32

3шт.
