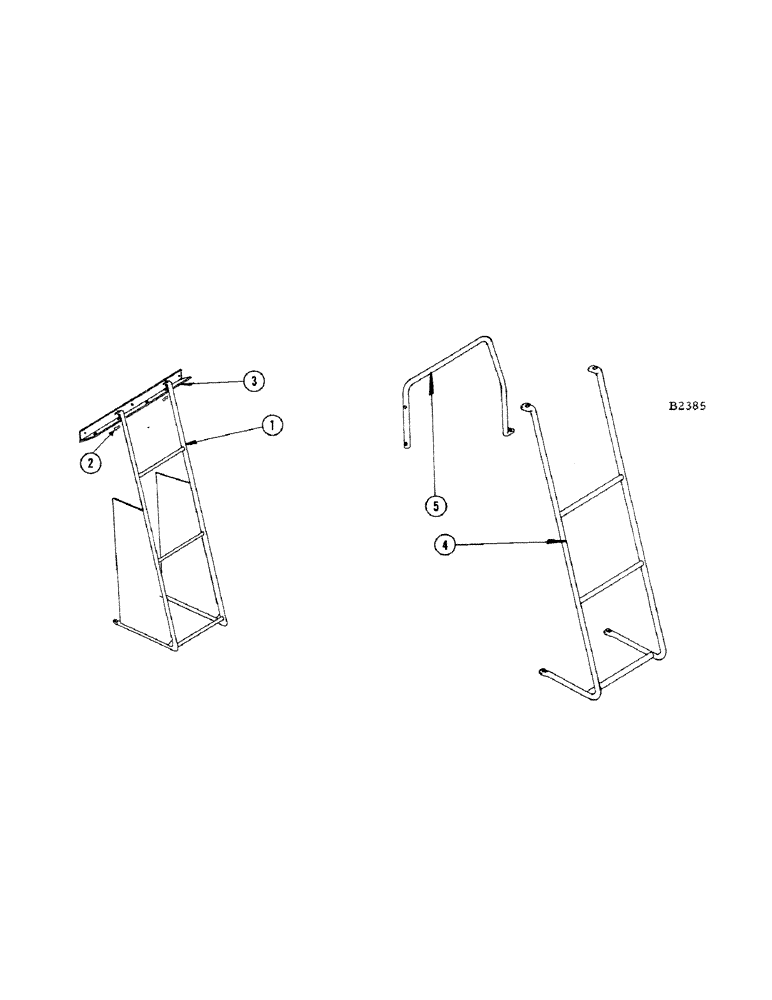

Запчасти Case IH 660 (240) - REAR LADDERS

1

F91842

LADDER - rear (660 special combine with cab) (Replaces F84673 when stocks are exhausted)

1шт.

BOLT - 5/16" x 1-3/4" N.C. hex (113-128)

2шт.

NUT - 5/16" N.C. hex (129-102)

4шт.

F84673

LADDER - rear (660 special combine with cab) (Replaced by F91842 when stocks are exhausted)

1шт.

2

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

3

F21947

SUPPORT - angle, for ladder

1шт.

BOLT - 5/16" x 3/4" N.C. hex (13-512) nut (25-105)

3шт.

4

F91841

LADDER - rear (Grain combine) (Replaces F82410 when stocks are exhausted)

1шт.

BOLT - 5/16" x 1" N.F. hex (14-516) nut (25-115)

4шт.

F82410

LADDER - rear (Grain combine) (Replaced by F91841 when stocks are exhausted)

1шт.

5

F22190

HAND RAIL - rear ladder (Replaces F17785 when stocks are exhausted)

1шт.

BOLT - 1/4" x 1-1/4" N.F. hex (14-420) nut (25-114)

2шт.

F17785

HAND RAIL - rear ladder (Replaced by F22190 when stocks are exhausted)

1шт.
