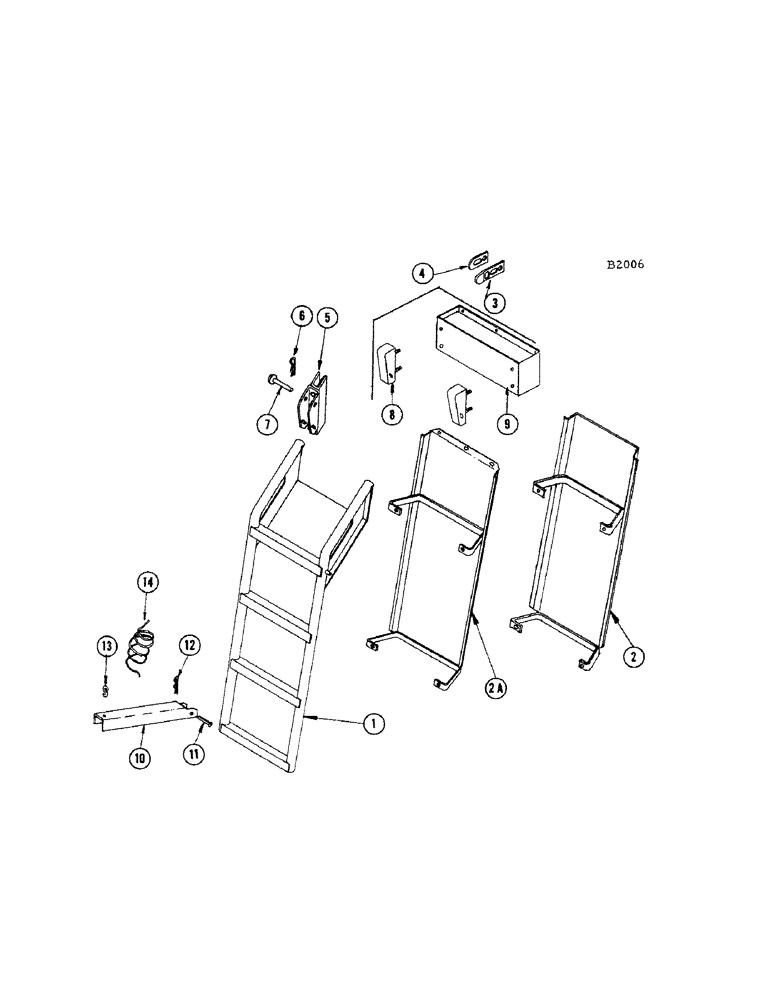

Запчасти Case IH 660 (240[A]) - PLATFORM FOLDING LADDER

1

F83170

LADDER - platform folding

1шт.

2

F87672

BACK SHIELD - ladder (#8309001 and after)

1шт.

BOLT - 1/4" x 1/2" N.C. hex (13-48) nut and L.W.

3шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)

4шт.

2a

F83168

BACK SHIELD - ladder (Before #8309001)

1шт.

BOLT - 3/8" x 3/4" N.F. hex (14-612) nut (25-116)

4шт.

3

F20039

SPRING - lock

1шт.

4

F20504

PLATE - lock spring

1шт.

NUT - 1/4" x 3/4" N.C. rhd. sq. nk. (11-412)

1шт.

NUT - 1/4" wing (129-404) L.W. (193-28)

1шт.

5

F83164

YOKE - pivot, front and rear (Combines without cab)

2шт.

BOLT - 3/8" x 7/8" N.F. hex (14-614) nut (25-116)

2шт.

WASHER - 3/8" flat (195-25)

4шт.

6

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080"

2шт.

7

F17898

PIN - pivot yoke

2шт.

8

F84186

YOKE - pivot, front and rear (Combines with cab)

2шт.

BOLT - 3/8" x 7/8" N.F. hex (114-218) nut (129-123)

2шт.

WASHER - 3/8" flat (195-525)

4шт.

9

F84682

EXTENSION - ladder (Combines with cab)

1шт.

BOLT - 5/16" x 3/4" N.C. hex (113-102) nut (129-102)

6шт.

LADDER LIFT ATTACHMENT (COMBINES WITH CAB)

1шт.

10

F21368

CHANNEL - ladder, lift attachment (combines with cab)

1шт.

11

F62238

PIN - drilled, for channel, ladder lift attachment (combines with cab)

1шт.

12

136-154

HAIR PIN COTTER,Int, 7/64" x .072"

COTTER - hairpin, ladder lift attachment (combines with cab)

1шт.

13

F62224

"S" HOOK, ladder lift attachment (combines with cab)

1шт.

14

ROPE - 1/4" x 134" cotton sash cord, ladder lift attachment (combines with cab)

1шт.
