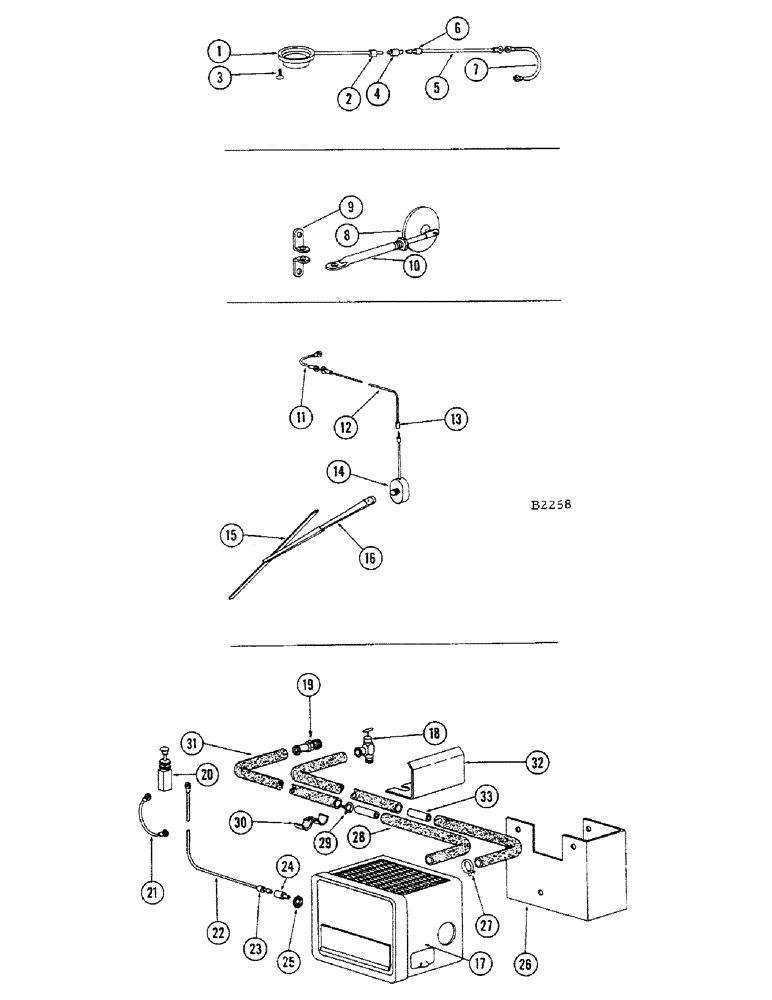

Запчасти Case IH 660 (238) - CAB ATTACHMENTS, EARLY PRODUCTION, DOMELIGHT ATTACHMENT

1

F21299

DOME LIGHT - 12 volt, with switch and wire

1шт.

2

F21352

TERMINAL

1шт.

A14553

BULB

- mfg. #57

1шт.

3

F21350

SCREW - domelight, #8 x 1/2" type "Z" binding hd. metal

3шт.

4

F21330

CONNECTOR - domelight wire

1шт.

5

F84227

WIRE - domelight to terminal box

1шт.

6

F21352

TERMINAL

1шт.

7

F21300

WIRE - jumper, terminal box to domelight wire

1шт.

8

F84222

HEAD - mirror, rear view attachment

1шт.

9

F84224

BRACKET - mounting (Set of two), rear view mirror attachment

1шт.

SCREW - 1/4" - 20 x 5/8" N.C. truss hd. (175-436) nut (25-104), rear view mirror attachment

2шт.

10

F84223

ARM - extension, rear view mirror attachment

1шт.

11

F21300

WIRE - jumper, terminal box to wiper wire, windshield attachment

1шт.

12

F84226

WIRE - wiper motor to jumper wire, windshield attachment

1шт.

13

F21352

TERMINAL, windshield wiper attachment

1шт.

214-1101

CLIP - wire (Ref. 12) (Not shown), windshield wiper attachment

3шт.

14

F21301

MOTOR - wiper, with switch and wire (12 volt), windshield attachment

1шт.

15

A56144

BLADE - wiper (10"), windshield attachment

1шт.

16

A10893

ARM

- wiper, windshield attachment

1шт.

17

F84220

HEATER - 12 volt, attachment

1шт.

NUT - 5/16" N.C. (129-102) L.W. (192-20), heater attachment

3шт.

18

A16764

VALVE

ELBOW AND VALVE - (3/8") engine heater hose, attachment

1шт.

19

A19940

PIPE

CONNECTOR - straight (3/8") engine heater hose, attachment

1шт.

20

F21304

BLOWER SWITCH

SWITCH - heater, attachment

1шт.

21

F21300

WIRE - jumper, terminal box to heater switch, attachment

1шт.

22

F84221

WIRE - switch to heater, attachment

1шт.

23

F21352

TERMINAL, heater attachment

1шт.

24

F21330

CONNECTOR - heater wire, attachment

1шт.

25

A27339

GROMMET - heater wire, attachment

2шт.

26

F21308

BRACKET - heater, attachment

1шт.

BOLT - 5/16" - 18 x 3/4" (15-512) nut (25-105) and int. ext. L.W. (193-74), heater attachment

6шт.

27

214-1101

CLIP - wire, for hoses, heater attachment

5шт.

28

F21307

HOSE - heater, attachment

2шт.

29

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, heater attachment

4шт.

30

F21337

CLAMP - double hose, heater attachment

1шт.

BOLT - 1/4" x 5/8" N.C. hex (13-410) nut (129-101), heater attachment

1шт.

31

F21310

HOSE - heater hose to engine, attachment

2шт.

32

F21309

SHIELD - heater hose, attachment

1шт.

33

F21305

NIPPLE - hose connection, heater attachment

2шт.
